F75TRD (2005)
VALVE

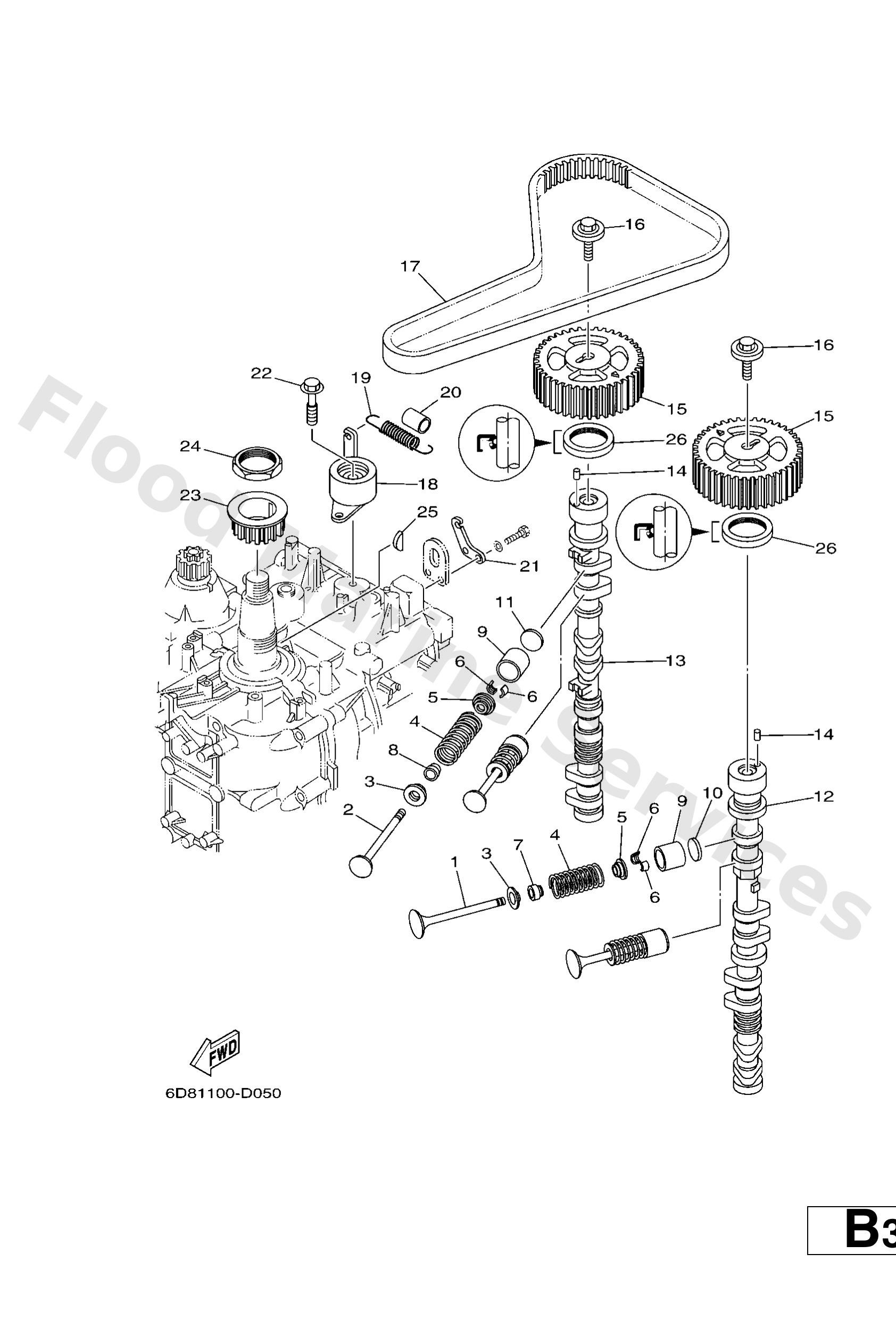

Diagram: VALVE
Parts List
Reference
Description
Price
1
68V1211100
Valve, intake
Loading…
↗
2
68V1212100
Valve, exhaust
Loading…
↗
3
67F1211600
Seat, valve spring
Loading…
↗
4
67F1211400
Spring, valve outer
Loading…
↗
5
67F1211700
Retainer, valve spring
Loading…
↗
6
67F1211800
Cotter, valve
Loading…
↗
7
K0AA372100
Seal, valve stem
Loading…
↗
8
K0AA372200
Seal, valve stem 2
Loading…
↗
9
67F1215300
Lifter, valve
Loading…
↗
10
67F1216870
UR
Pad, adjusting (2.175)
Loading…
↗
10
67F12168J0
UR
Pad, adjusting (2.425)
Loading…
↗
10
67F12168H0
UR
Pad, adjusting (2.400)
Loading…
↗
10
67F12168G0
UR
Pad, adjusting (2.375)
Loading…
↗
10
67F12168F0
UR
Pad, adjusting (2.350)
Loading…
↗
10
67F12168E0
UR
Pad, adjusting (2.325)
Loading…
↗
10
67F12168D0
UR
Pad, adjusting (2.300)
Loading…
↗
10
67F12168C0
UR
Pad, adjusting (2.275)
Loading…
↗
10
67F12168B0
UR
Pad, adjusting (2.250)
Loading…
↗
10
67F12168A0
UR
Pad, adjusting (2.225)
Loading…
↗
10
67F1216880
UR
Pad, adjusting (2.200)
Loading…
↗
10
67F1216860
UR
Pad, adjusting (2.150)
Loading…
↗
10
67F1216850
UR
Pad, adjusting (2.125)
Loading…
↗
10
67F1216840
UR
Pad, adjusting (2.100)
Loading…
↗
10
67F1216830
UR
Pad, adjusting (2.075)
Loading…
↗
10
67F1216820
UR
Pad, adjusting (2.050)
Loading…
↗
10
67F1216810
UR
Pad, adjusting (2.025)
Loading…
↗
10
67F1216800
UR
Pad, adjusting (2.000)
Loading…
↗
10
67F12168X0
UR
Pad, adjusting (2.725)
Loading…
↗
10
67F12168Y0
UR
Pad, adjusting (2.750)
Loading…
↗
10
67F12168W0
UR
Pad, adjusting (2.700)
Loading…
↗
10
67F12168V0
UR
Pad, adjusting (2.675)
Loading…
↗
10
67F12168U0
UR
Pad, adjusting (2.650)
Loading…
↗
10
67F12168T0
UR
Pad, adjusting (2.625)
Loading…
↗
10
67F12168R0
UR
Pad, adjusting (2.575)
Loading…
↗
10
67F12168P0
UR
Pad, adjusting (2.550)
Loading…
↗
10
67F12168N0
UR
Pad, adjusting (2.525)
Loading…
↗
10
67F12168M0
UR
Pad, adjusting (2.500)
Loading…
↗
10
67F12168L0
UR
Pad, adjusting (2.475)
Loading…
↗
10
67F12168K0
UR
Pad, adjusting (2.450)
Loading…
↗
10
67F12168S0
UR
Pad, adjusting (2.600)
Loading…
↗
11
67F1216950
UR
Pad, adjusting (2.900)
Loading…
↗
11
67F12169E0
UR
Pad, adjusting (3.100)
Loading…
↗
11
67F12169D0
UR
Pad, adjusting (3.075)
Loading…
↗
11
67F12169C0
UR
Pad, adjusting (3.050)
Loading…
↗
11
67F12169B0
UR
Pad, adjusting (3.025)
Loading…
↗
11
67F12169A0
UR
Pad, adjusting (3.000)
Loading…
↗
11
67F1216980
UR
Pad, adjusting (2.975)
Loading…
↗
11
67F1216970
UR
Pad, adjusting (2.950)
Loading…
↗
11
67F1216960
UR
Pad, adjusting (2.925)
Loading…
↗
11
67F1216940
UR
Pad, adjusting (2.875)
Loading…
↗
11
67F1216930
UR
Pad, adjusting (2.850)
Loading…
↗
11
67F1216920
UR
Pad, adjusting (2.825)
Loading…
↗
11
67F1216910
UR
Pad, adjusting (2.800)
Loading…
↗
11
67F1216900
UR
Pad, adjusting (2.775)
Loading…
↗
11
67F12169G0
UR
Pad, adjusting (3.150)
Loading…
↗
11
67F12169N0
UR
Pad, adjusting (3.300)
Loading…
↗
11
67F12169M0
UR
Pad, adjusting (3.275)
Loading…
↗
11
67F12169L0
UR
Pad, adjusting (3.250)
Loading…
↗
11
67F12169J0
UR
Pad, adjusting (3.200)
Loading…
↗
11
67F12169H0
UR
Pad, adjusting (3.175)
Loading…
↗
11
67F12169F0
UR
Pad, adjusting (3.125)
Loading…
↗
11
67F12169K0
UR
Pad, adjusting (3.225)
Loading…
↗
12
6D81217100
Camshaft 1
Loading…
↗
13
67F1218100
Camshaft 2
Loading…
↗
14
9360510108
Pin, dowel (8g8)
Loading…
↗
15
67F1153700
Gear, driven
Loading…
↗
16
9011910M06
Bolt
Loading…
↗
17
67F4624100
Belt
Loading…
↗
18
67F1159000
Tensioner assembly
Loading…
↗
19
9050616M39
Spring, tension
Loading…
↗
20
9044515M03
Hose (l23)
Loading…
↗
21
67F1159500
Plate,valve
Loading…
↗
22
9011910M72
Bolt, with washer(6m6)
Loading…
↗
23
6D81153600
Gear, drive
Loading…
↗
24
9017040003
Nut
Loading…
↗
25
9028004008
Key woodruff 604115450000
Loading…
↗
26
9310238M59
Oil seal
Loading…
↗
