F80B (2022)
VALVE

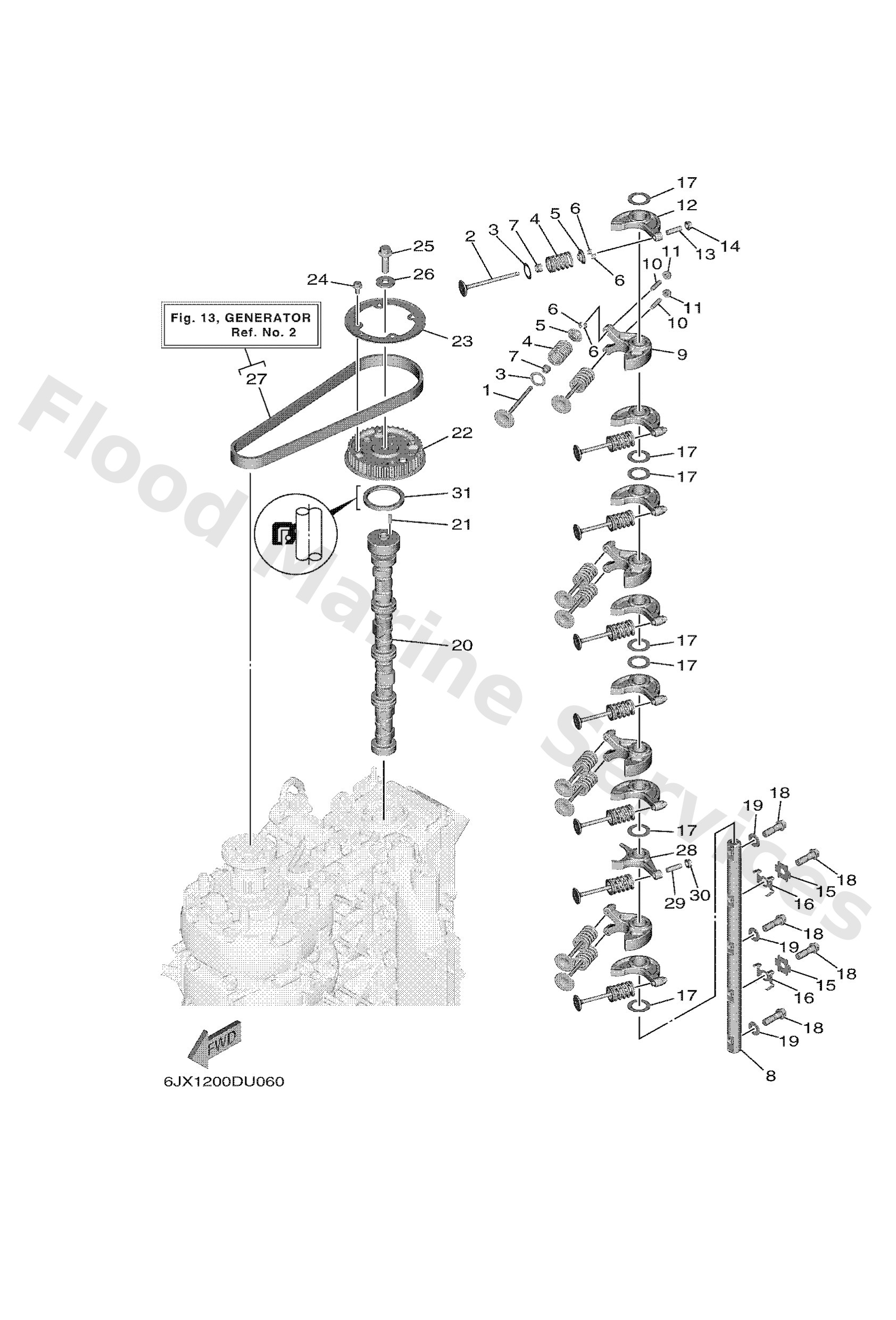

Diagram: VALVE
Parts List
Reference
Description
Price
1
6FP1211100
Valve, intake
Loading…
↗
2
6FP1212100
Valve, exhaust
Loading…
↗
3
62Y1211600
Seat, valve spring
Loading…
↗
4
6FP1211300
Spring, valve inner
Loading…
↗
5
30X1211700
Retainer, valve spring
Loading…
↗
6
30X1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
6FP1214600
Shaft, rocker
Loading…
↗
9
6FP1215100
Arm, valve rocker
Loading…
↗
10
6C51215900
Screw, valve adjusting
Loading…
↗
11
6C51215800
Nut, lock
Loading…
↗
12
6FP1216100
Arm, valve rocker 2
Loading…
↗
13
6C51215910
Screw, valve adjusting
Loading…
↗
14
6C51215810
Nut, lock
Loading…
↗
15
6FP1223100
Guide, stopper 1
Loading…
↗
16
6FP1223300
Plate, guide stopper 1
Loading…
↗
17
9020121016
Washer, plate
Loading…
↗
18
9040110050
Bolt, union
Loading…
↗
19
9299010200
958-69527-00 washer, plain
Loading…
↗
20
6FP1217100
Camshaft 1
Loading…
↗
21
9360517002
Pin, dowel
Loading…
↗
22
6FP1153700
Gear, driven
Loading…
↗
23
6DA1155700
Washer 1
Loading…
↗
24
95D9506012
Bolt, flange deep recess
Loading…
↗
25
9581710035
Bolt, washer based (2h9)
Loading…
↗
26
9020110144
Washer plate 810176580000
Loading…
↗
27
6FPW462400
Belt (with rotor bolts)
Loading…
↗
28
6FP1216210
Arm, valve rocker 3
Loading…
↗
31
9310248017
Oil seal
Loading…
↗
