F9.9HMH (2014)
VALVE

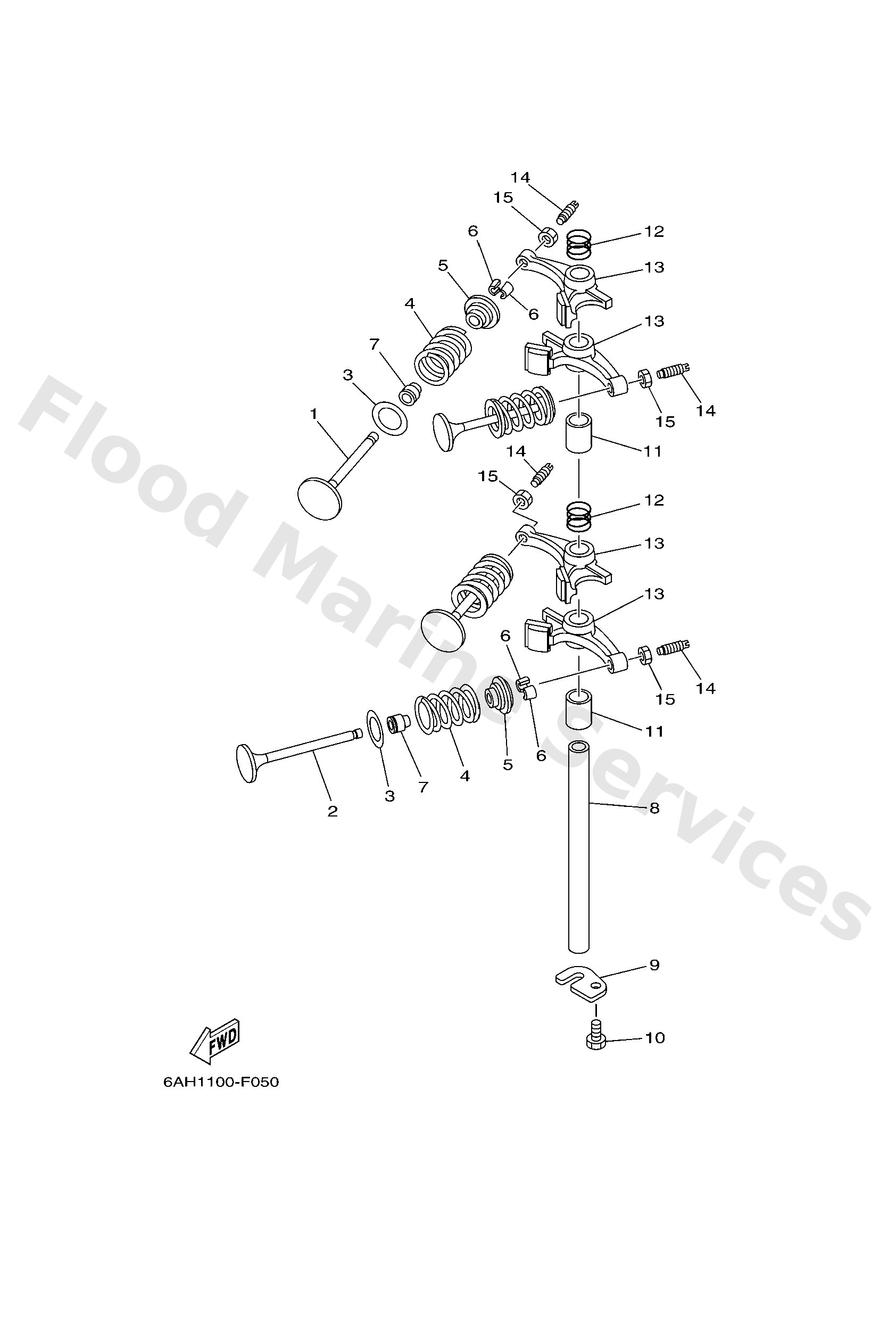

Diagram: VALVE
Parts List
Reference
Description
Price
1
6AH1211100
Valve, intake
Loading…
↗
2
6AH1212110
Valve, exhaust
Loading…
↗
3
62Y1211600
Seat, valve spring
Loading…
↗
4
3YF1211300
Spring, valve inner
Loading…
↗
5
30X1211700
Retainer, valve spring
Loading…
↗
6
30X1211800
Cotter, valve
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
66M1214600
Shaft, rocker
Loading…
↗
9
6AH1227900
Plate
Loading…
↗
10
9701306012
Bolt(gh1)
Loading…
↗
11
9038713006
Collar
Loading…
↗
12
90501120A5
Spring, compression
Loading…
↗
13
6AH1215100
Arm, valve rocker
Loading…
↗
14
64J1215900
Screw, valve adjusting
Loading…
↗
15
62Y1215800
Nut, lock
Loading…
↗
