FL350AET (2008)
VALVE

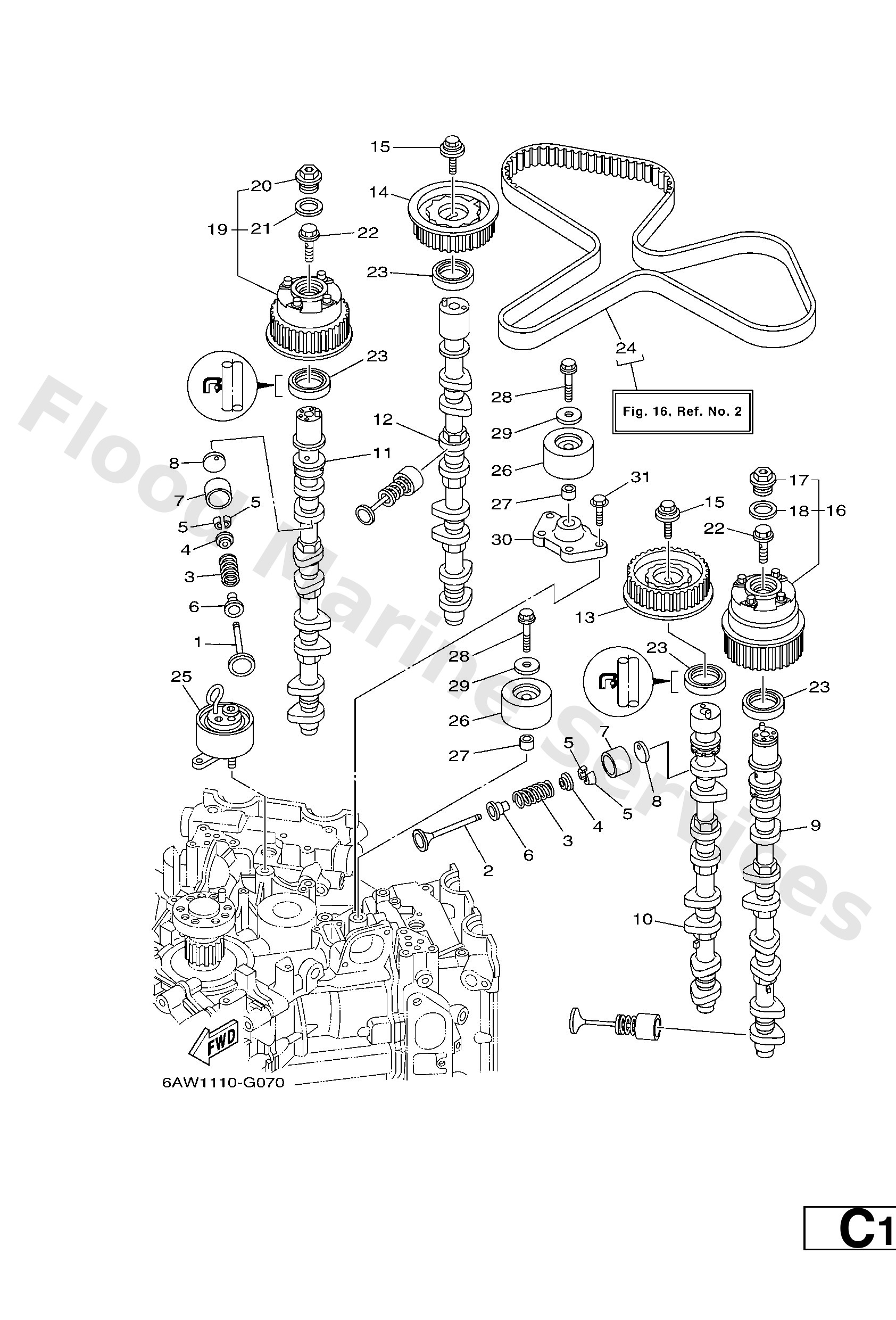

Diagram: VALVE
Parts List
Reference
Description
Price
1
6P21211100
Valve, intake
Loading…
↗
2
6P21212100
Valve, exhaust
Loading…
↗
3
69J1211301
Spring, valve inner
Loading…
↗
4
69J1211701
Retainer, valve spring
Loading…
↗
5
69J1211800
Cotter, valve
Loading…
↗
6
69J1211900
Seal, valve stem
Loading…
↗
7
69J1215300
Lifter, valve
Loading…
↗
8
6S112168B0
UR
Pad, adjusting (2.540)
Loading…
↗
8
6S112168A0
UR
Pad, adjusting (2.520)
Loading…
↗
8
6S112168C0
UR
Pad, adjusting (2.560)
Loading…
↗
8
6S112168D0
UR
Pad, adjusting (2.580)
Loading…
↗
8
6S112168E0
UR
Pad, adjusting (2.600)
Loading…
↗
8
6S112168F0
UR
Pad, adjusting (2.620)
Loading…
↗
8
6S112168G0
UR
Pad, adjusting (2.640)
Loading…
↗
8
6S112168H0
UR
Pad, Adjusting (2.660)
Loading…
↗
8
6S112168J0
UR
Pad, adjusting (2.680)
Loading…
↗
8
6S112168K0
UR
Pad, adjusting (2.700)
Loading…
↗
8
6S11216890
UR
Pad, adjusting (2.500)
Loading…
↗
8
6S11216800
UR
Pad, adjusting (2.320)
Loading…
↗
8
6S11216810
UR
Pad, adjusting (2.340)
Loading…
↗
8
6S11216820
UR
Pad, adjusting (2.360)
Loading…
↗
8
6S11216830
UR
Pad, adjusting (2.380)
Loading…
↗
8
6S11216840
UR
Pad, adjusting (2.400)
Loading…
↗
8
6S11216850
UR
Pad, adjusting (2.420)
Loading…
↗
8
6S11216860
UR
Pad, adjusting (2.440)
Loading…
↗
8
6S11216870
UR
Pad, adjusting (2.460)
Loading…
↗
8
6S11216880
UR
Pad, adjusting (2.480)
Loading…
↗
8
6S11216900
UR
Pad, adjusting (2.960)
Loading…
↗
8
6S112168Y0
UR
Pad, adjusting (2.940)
Loading…
↗
8
6S112168X0
UR
Pad, adjusting (2.920)
Loading…
↗
8
6S112168W0
UR
Pad, adjusting (2.900)
Loading…
↗
8
6S112168R0
UR
Pad, adjusting (2.800)
Loading…
↗
8
6S112168V0
UR
Pad, adjusting (2.880)
Loading…
↗
8
6S112168U0
UR
Pad, adjusting (2.860)
Loading…
↗
8
6S112168S0
UR
Pad, adjusting (2.820)
Loading…
↗
8
6S112168P0
UR
Pad, Adjusting (2.780)
Loading…
↗
8
6S112168N0
UR
Pad, adjusting (2.760)
Loading…
↗
8
6S112168M0
UR
Pad, adjusting (2.740)
Loading…
↗
8
6S112168L0
UR
Pad, adjusting (2.720)
Loading…
↗
8
6S112168T0
UR
Pad, Adjusting (2.840)
Loading…
↗
9
6AW1217100
Camshaft 1
Loading…
↗
10
6AW1218100
Camshaft 2
Loading…
↗
11
6AW1217200
Camshaft 3
Loading…
↗
12
6AW1218200
Camshaft 4
Loading…
↗
13
6AW1153700
Gear, driven
Loading…
↗
14
6AW1156700
Gear, driven 2
Loading…
↗
15
9011910M06
Bolt
Loading…
↗
16
6AW1264500
Pulley assembly 1
Loading…
↗
17
6P21262300
Bolt
Loading…
↗
18
6P21266300
Gasket
Loading…
↗
19
6AW1264A00
Pulley assembly 2
Loading…
↗
22
6P21261500
Bolt
Loading…
↗
23
9310238M59
Oil seal
Loading…
↗
24
6AWW462400
Belt (with rotor bolts)
Loading…
↗
25
6P21159000
Tensioner assembly
Loading…
↗
26
6P21551200
Gear, idler 1
Loading…
↗
27
9038710M08
Pin, dowel
Loading…
↗
28
9011910M07
Bolt (6f5)
Loading…
↗
29
9020110M01
Washer, plate(6m7)
Loading…
↗
30
6AW155440094
Stay 1
Loading…
↗
31
9010508178
Bolt, flange
Loading…
↗
