FL350AET (2018)
VALVE

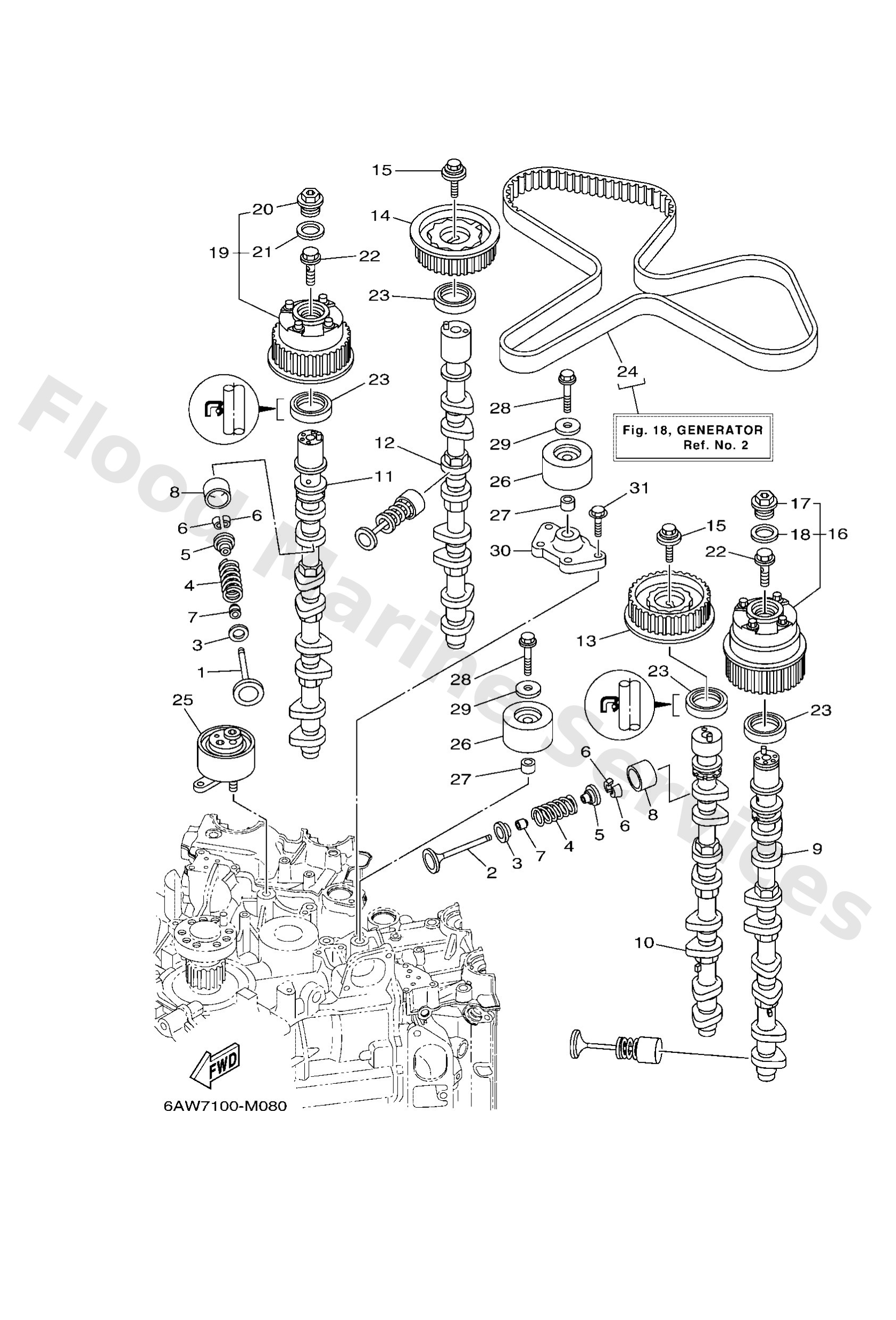

Diagram: VALVE
Parts List
Reference
Description
Price
1
6CB1211100
Valve, intake
Loading…
↗
2
6CB1212100
Valve, exhaust
Loading…
↗
3
K0FA374300
Seat, valve spring
Loading…
↗
4
6CB1211300
Spring, valve inner
Loading…
↗
5
K0FA374100
Retainer, valve spring
Loading…
↗
6
K0FA374200
Lock, valve spring retainer
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
K0FA375100
UR
Lifter, valvek (3.000)
Loading…
↗
8
K0FA375110
UR
Lifter, valve (3.025)
Loading…
↗
8
K0FA375120
UR
Lifter, valve (3.050)
Loading…
↗
8
K0FA375130
UR
Lifter, valve (3.075)
Loading…
↗
8
K0FA375140
UR
Lifter, valve (3.100)
Loading…
↗
8
K0FA375150
UR
Lifter, valve (3.122)
Loading…
↗
8
K0FA375160
UR
Lifter, valve (3.142)
Loading…
↗
8
K0FA375170
UR
Lifter, valve (3.162)
Loading…
↗
8
K0FA375180
UR
Lifter, valve (3.182)
Loading…
↗
8
K0FA375190
UR
Lifter, valve (3.202)
Loading…
↗
8
K0FA3751A0
UR
Lifter, valve (3.222)
Loading…
↗
8
K0FA3751B0
UR
Lifter, valve (3.242)
Loading…
↗
8
K0FA3751C0
UR
Lifter, valve (3.262)
Loading…
↗
8
K0FA3751D0
UR
Lifter, valve (3.282)
Loading…
↗
8
K0FA3751E0
UR
Lifter, valve (3.302)
Loading…
↗
8
K0FA3751F0
UR
Lifter, valve (3.322)
Loading…
↗
8
K0FA3751G0
UR
Lifter, valve (3.342)
Loading…
↗
8
K0FA3751H0
UR
Lifter, valve (3.362)
Loading…
↗
8
K0FA3751J0
UR
Lifter, valve (3.382)
Loading…
↗
8
K0FA3751K0
UR
Lifter, valve (3.402)
Loading…
↗
8
K0FA3751L0
UR
Lifter, valve (3.422)
Loading…
↗
8
K0FA3751M0
UR
Lifter, valve (3.442)
Loading…
↗
8
K0FA3751N0
UR
Lifter, valve (3.462)
Loading…
↗
8
K0FA3751P0
UR
Lifter, valve (3.482)
Loading…
↗
8
K0FA3751R0
UR
Lifter, valve (3.502)
Loading…
↗
8
K0FA3751S0
UR
Lifter, valve (3.522)
Loading…
↗
8
K0FA3751T0
UR
Lifter, valve (3.542)
Loading…
↗
8
K0FA375300
UR
Lifter, valve (3.562)
Loading…
↗
8
K0FA375310
UR
Lifter, valve (3.582)
Loading…
↗
8
K0FA375320
UR
Lifter, valve (3.602)
Loading…
↗
8
K0FA375330
UR
Lifter, valve (3.625)
Loading…
↗
8
K0FA375340
UR
Lifter, valve (3.650)
Loading…
↗
8
K0FA375350
UR
Lifter, valve (3.675)
Loading…
↗
8
K0FA375360
UR
Lifter, valve (3.700)
Loading…
↗
8
K0FA375370
UR
Lifter, valve (3.725)
Loading…
↗
9
6AW1217110
Camshaft 1
Loading…
↗
10
6AW1218110
Camshaft 2
Loading…
↗
11
6AW1217210
Camshaft 3
Loading…
↗
12
6AW1218210
Camshaft 4
Loading…
↗
13
6AW1153700
Gear, driven
Loading…
↗
14
6AW1156700
Gear, driven 2
Loading…
↗
15
9011910050
Bolt, with washer
Loading…
↗
16
6AW1264500
Pulley assembly 1
Loading…
↗
17
6P21262300
Bolt
Loading…
↗
18
6P21266300
Gasket
Loading…
↗
19
6AW1264A00
Pulley assembly 2
Loading…
↗
22
6P21261500
Bolt
Loading…
↗
23
9310238008
Oil seal
Loading…
↗
24
6AWW462400
Belt (with rotor bolts)
Loading…
↗
25
6P21159001
Tensioner assembly
Loading…
↗
26
6P21551200
Gear, idler 1
Loading…
↗
27
9953014016
Pin, dowel
Loading…
↗
28
9011910M07
Bolt (6f5)
Loading…
↗
29
9020110M01
Washer, plate(6m7)
Loading…
↗
30
6AW1554400
Stay 1
Loading…
↗
31
9010508178
Bolt, flange
Loading…
↗
