Yamaha Outboard Parts - VALVE - FT25BET (2002) | Flood Marine

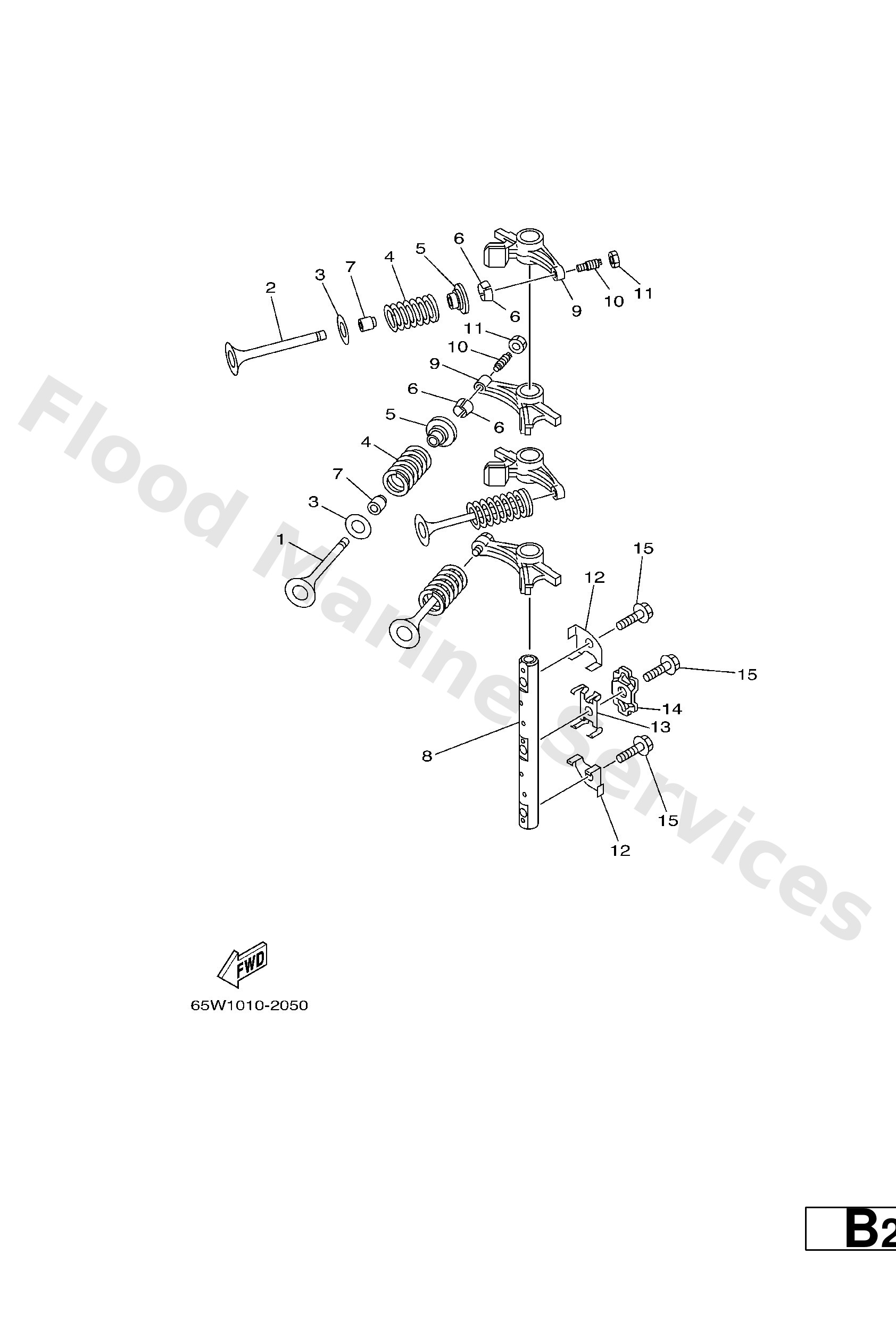

Diagram: VALVE

Diagram

Parts List

Reference
Description
Price


1
67C1211100
Valve, intake
Loading…

↗
2
62Y--12121--00
Valve, exhaust
Loading…

↗
3
62Y--12116--00
Seat, valve spring
Loading…

↗
4
51Y--12114--00
Spring, valve outer
Loading…

↗
5
30X--12117--00
Retainer, valve spring
Loading…

↗
6
30X--12118--00
Cotter, valve
Loading…

↗
7
51Y--12119--00
Seal, valve stem
Loading…

↗
8
65W--12146--00
Shaft, Rocker
Loading…

↗
9
65W--12151--00
Arm, valve rocker
Loading…

↗
10
62Y--12159--00
Screw, Valve Adjusting
Loading…

↗
11
62Y--12158--00
Nut, lock
Loading…

↗
12
62Y--12238--00
Plate, Bolt Stopper
Loading…

↗
13
62Y--12216--00
Spring
Loading…

↗
14
62Y1223100
Guide, stopper 1
Loading…

↗
15
90109--08M63
Bolt(62y)
Loading…

↗
