FT25BET (2003)
VALVE

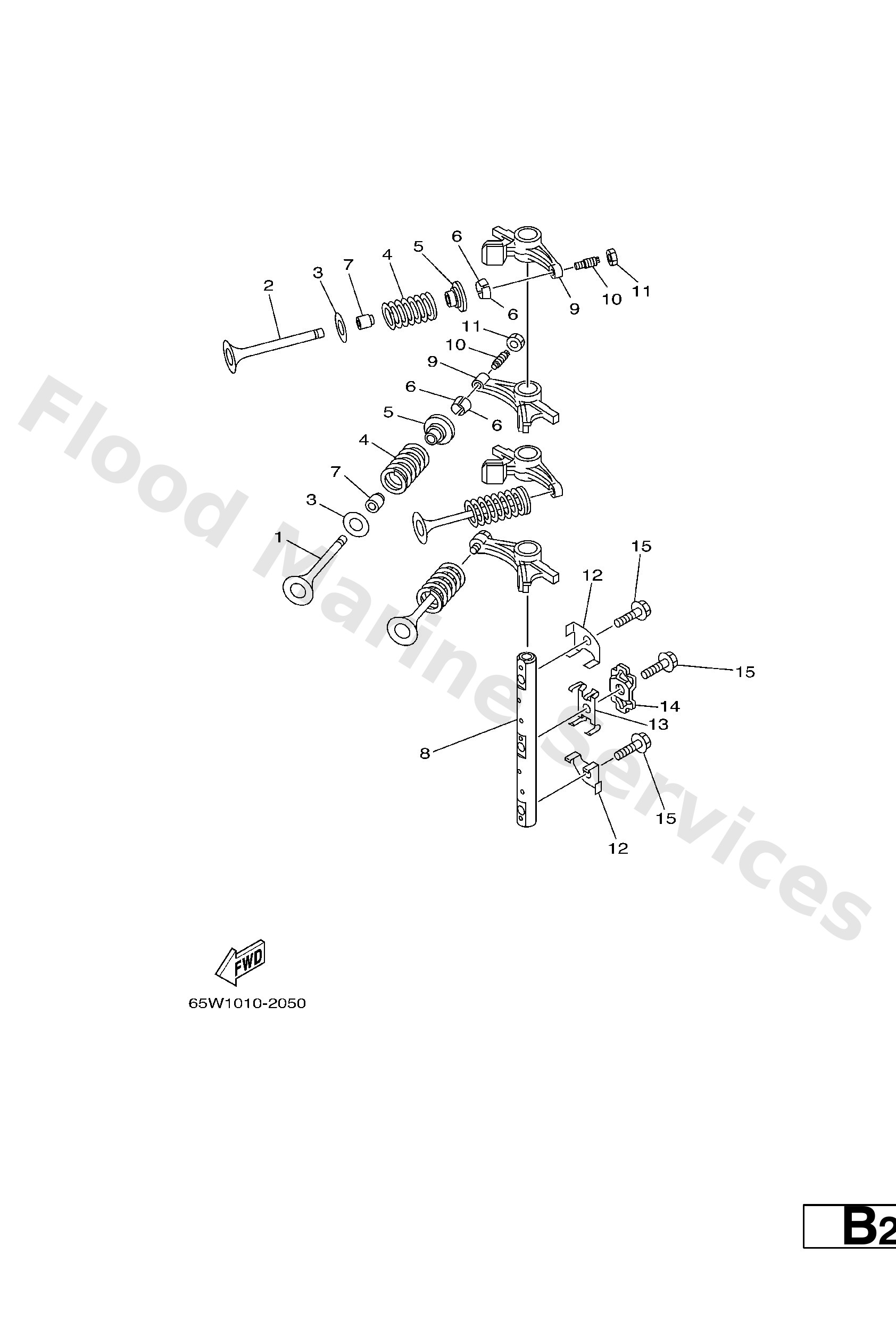

Diagram: VALVE
Parts List
Reference
Description
Price
1
67C−12111−00
Valve, intake
Loading…
↗
2
62Y−12121−00
Valve, exhaust
Loading…
↗
3
62Y−12116−00
Seat, valve spring
Loading…
↗
4
51Y−12114−00
Spring, valve outer
Loading…
↗
5
30X−12117−00
Retainer, valve spring
Loading…
↗
6
30X−12118−00
Cotter, valve
Loading…
↗
7
51Y−12119−00
Seal, valve stem
Loading…
↗
8
65W−12146−00
Shaft, Rocker
Loading…
↗
9
65W−12151−00
Arm, valve rocker
Loading…
↗
10
62Y−12159−00
Screw, Valve Adjusting
Loading…
↗
11
62Y−12158−00
Nut, lock
Loading…
↗
12
62Y−12238−00
Plate, Bolt Stopper
Loading…
↗
13
62Y−12216−00
Spring
Loading…
↗
14
62Y−12231−00
Guide, stopper 1
Loading…
↗
15
90109−08M63
Bolt(62y)
Loading…
↗
