Yamaha Outboard Parts - VALVE - FT25BET (2008) | Flood Marine

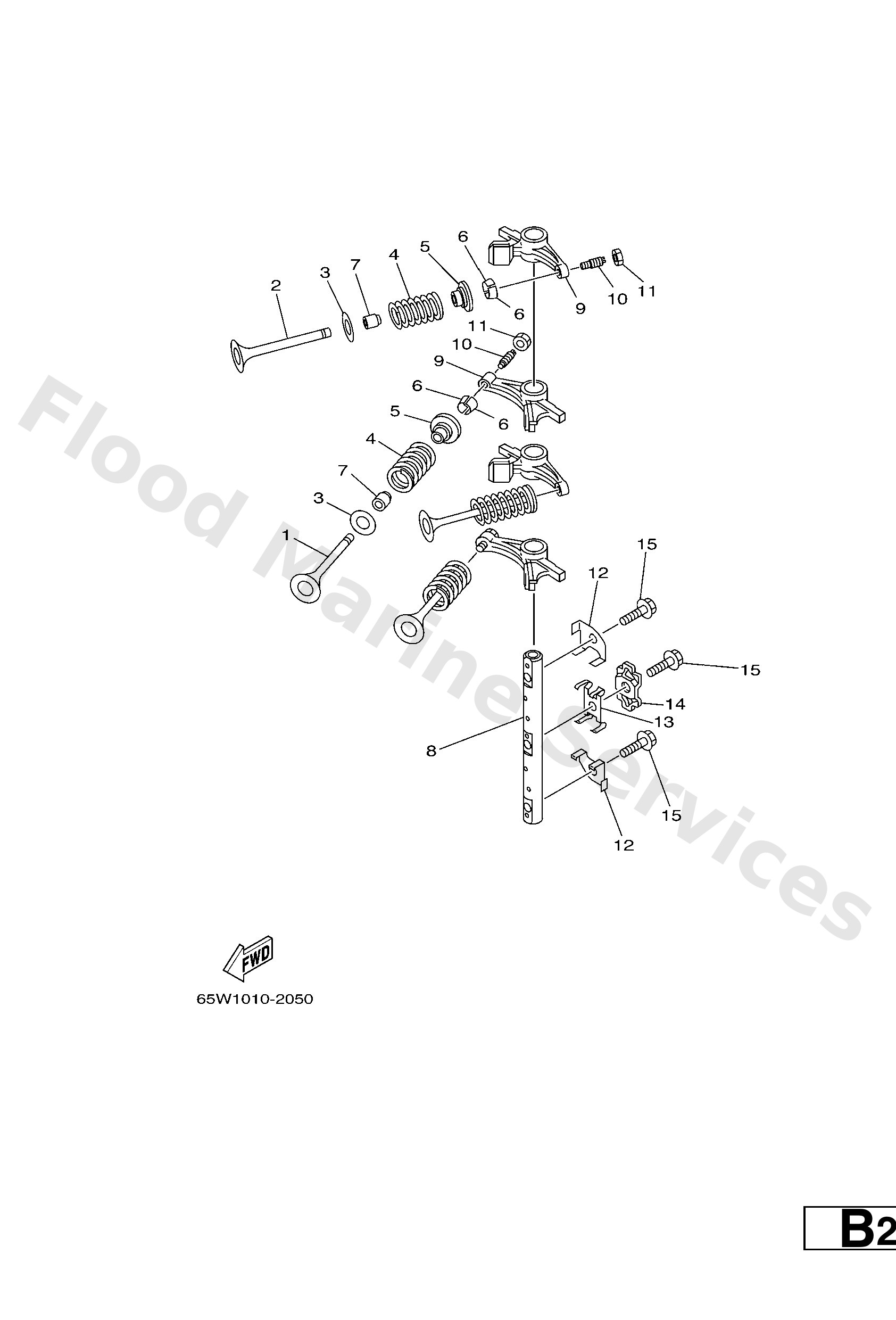

Diagram: VALVE

Diagram

Parts List

Reference
Description
Price


1
67C1211100
Valve, intake
Loading…

↗
2
62Y1212100
Valve, exhaust
Loading…

↗
3
62Y1211600
Seat, valve spring
Loading…

↗
4
51Y1211400
Spring, valve outer
Loading…

↗
5
30X1211700
Retainer, valve spring
Loading…

↗
6
30X1211800
Cotter, valve
Loading…

↗
7
51Y1211900
Seal, valve stem
Loading…

↗
8
65W1214600
Shaft, Rocker
Loading…

↗
9
65W1215100
Arm, valve rocker
Loading…

↗
10
62Y1215900
Screw, Valve Adjusting
Loading…

↗
11
62Y1215800
Nut, lock
Loading…

↗
12
62Y1223800
Plate, Bolt Stopper
Loading…

↗
13
62Y1221600
Spring
Loading…

↗
14
62Y1223100
Guide, stopper 1
Loading…

↗
15
9010908M63
Bolt(62y)
Loading…

↗
