Yamaha Outboard Parts - VALVE - FT8DEP (2004) | Flood Marine

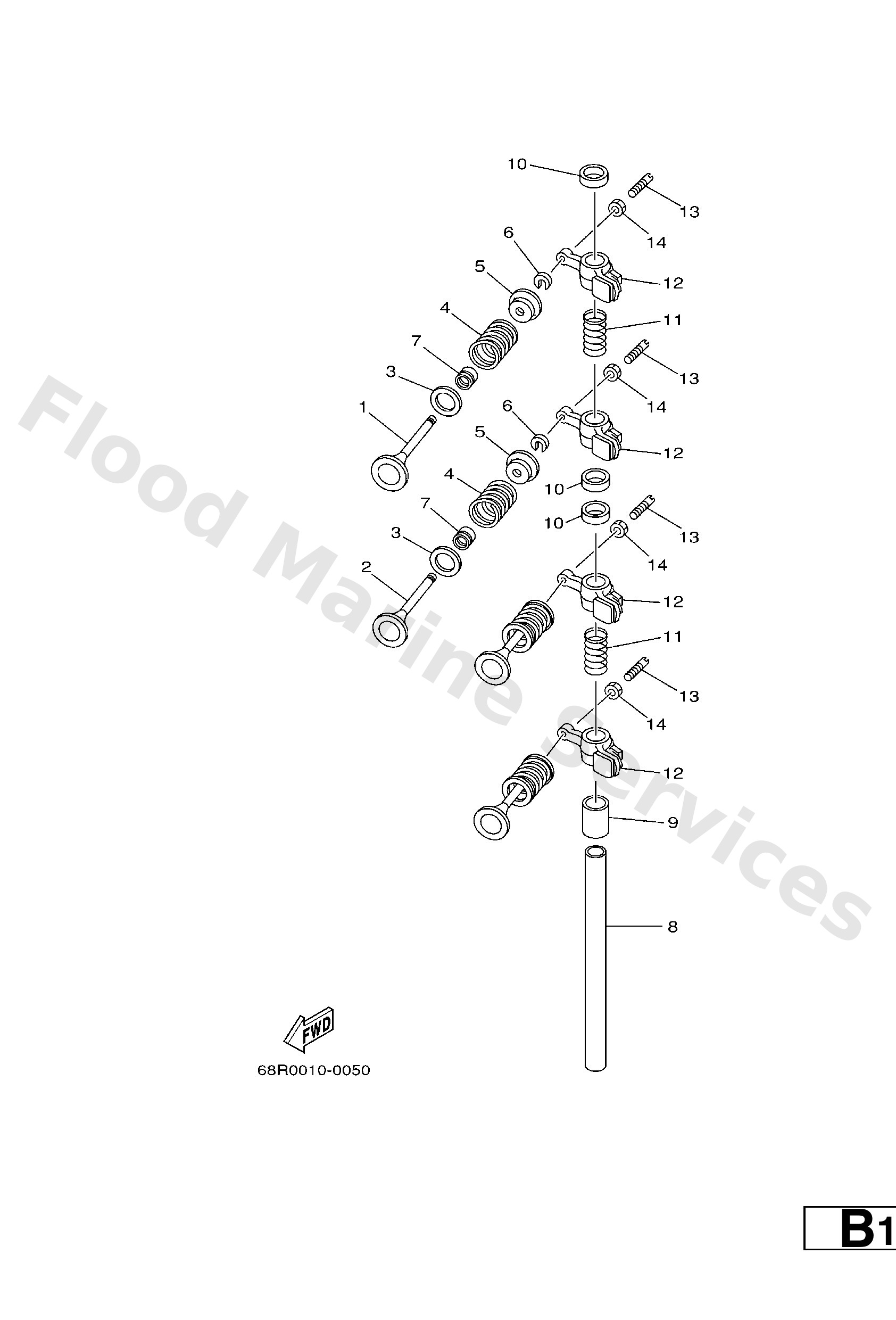

Diagram: VALVE

Diagram

Parts List

Reference
Description
Price


1
67D1211100
Valve, intake
Loading…

↗
2
67D1212100
Valve, exhaust
Loading…

↗
3
68T1211600
Seat, valve spring
Loading…

↗
4
68T1211300
Spring, valve inne
Loading…

↗
5
7NJ1211700
Retainer, valve spring
Loading…

↗
6
7NJ1211800
Cotter, valve
Loading…

↗
7
51Y1211900
Seal, valve stem
Loading…

↗
8
68T1214600
Shaft, rocker
Loading…

↗
9
9038713M56
Collar (6g8)
Loading…

↗
10
9038714M03
Collar
Loading…

↗
11
9050112M40
Spring, compression (6g8)
Loading…

↗
12
68T1215100
Arm, valve rocker
Loading…

↗
13
6G81215900
Screw, valve adjusting
Loading…

↗
14
6G81215800
Nut, lock
Loading…

↗
