FT9.9DE (2003)
VALVE

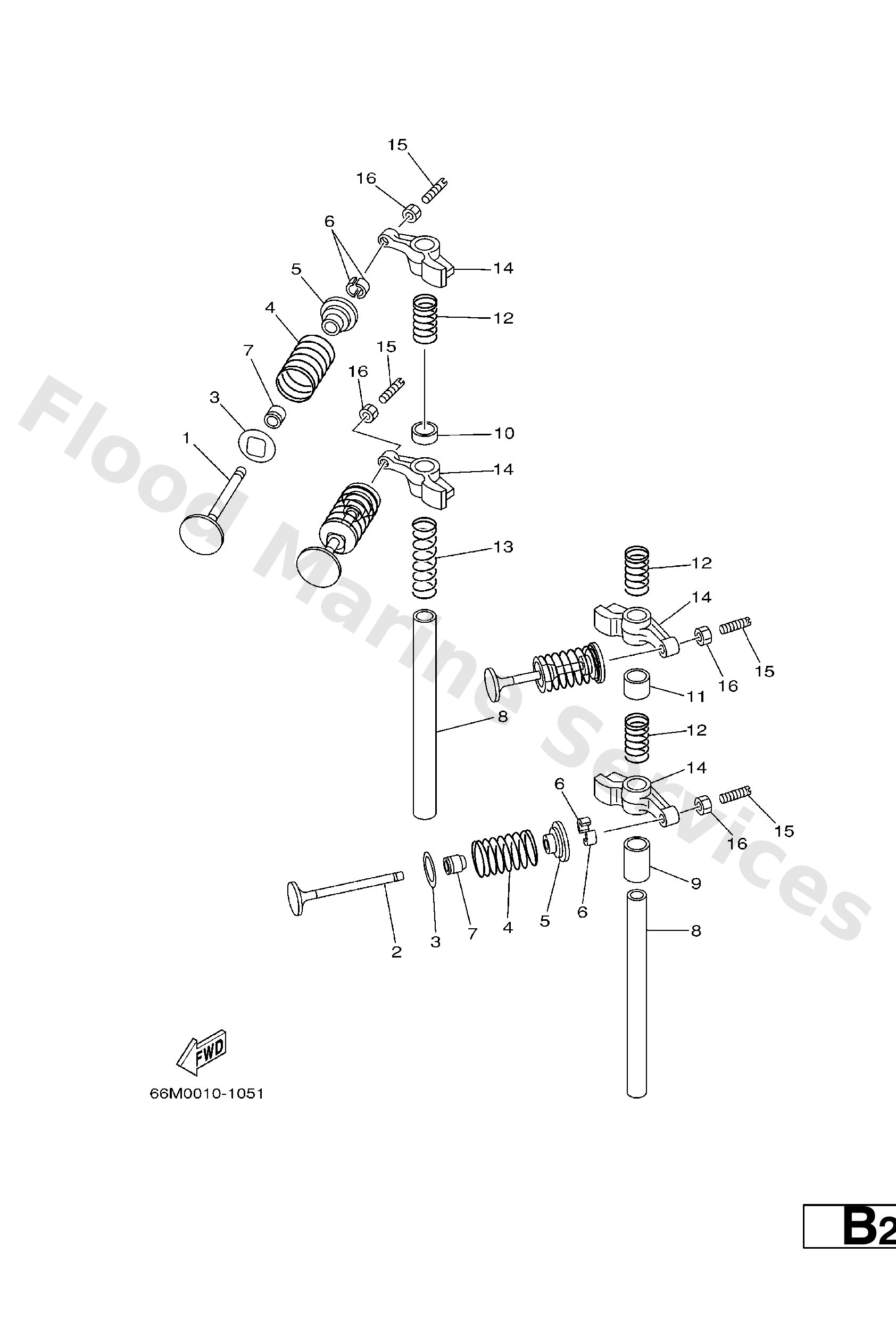

Diagram: VALVE
Parts List
Reference
Description
Price
1
66M−12111−00
Valve, intake
Loading…
↗
2
66M−12121−00
Valve, exhaust
Loading…
↗
3
66M−12116−00
Seat, valve spring
Loading…
↗
4
66M−12113−00
Spring, valve inner
Loading…
↗
5
30X−12117−00
Retainer, valve spring
Loading…
↗
6
30X−12118−00
Cotter, valve
Loading…
↗
7
51Y−12119−00
Seal, valve stem
Loading…
↗
8
66M−12146−00
Shaft, rocker
Loading…
↗
9
90387−13M56
Collar (6g8)
Loading…
↗
10
90387−13001
Collar
Loading…
↗
11
90387−13002
Collar
Loading…
↗
12
90501−12M40
Spring, compression (6g8)
Loading…
↗
13
90501−12M41
5−
Loading…
↗
14
66M−12151−10
Arm, Valve Rocker
Loading…
↗
15
62Y−12159−00
Screw, Valve Adjusting
Loading…
↗
16
62Y−12158−00
Nut, lock
Loading…
↗
