Yamaha Outboard Parts - VALVE - ME730TIH (2006) | Flood Marine

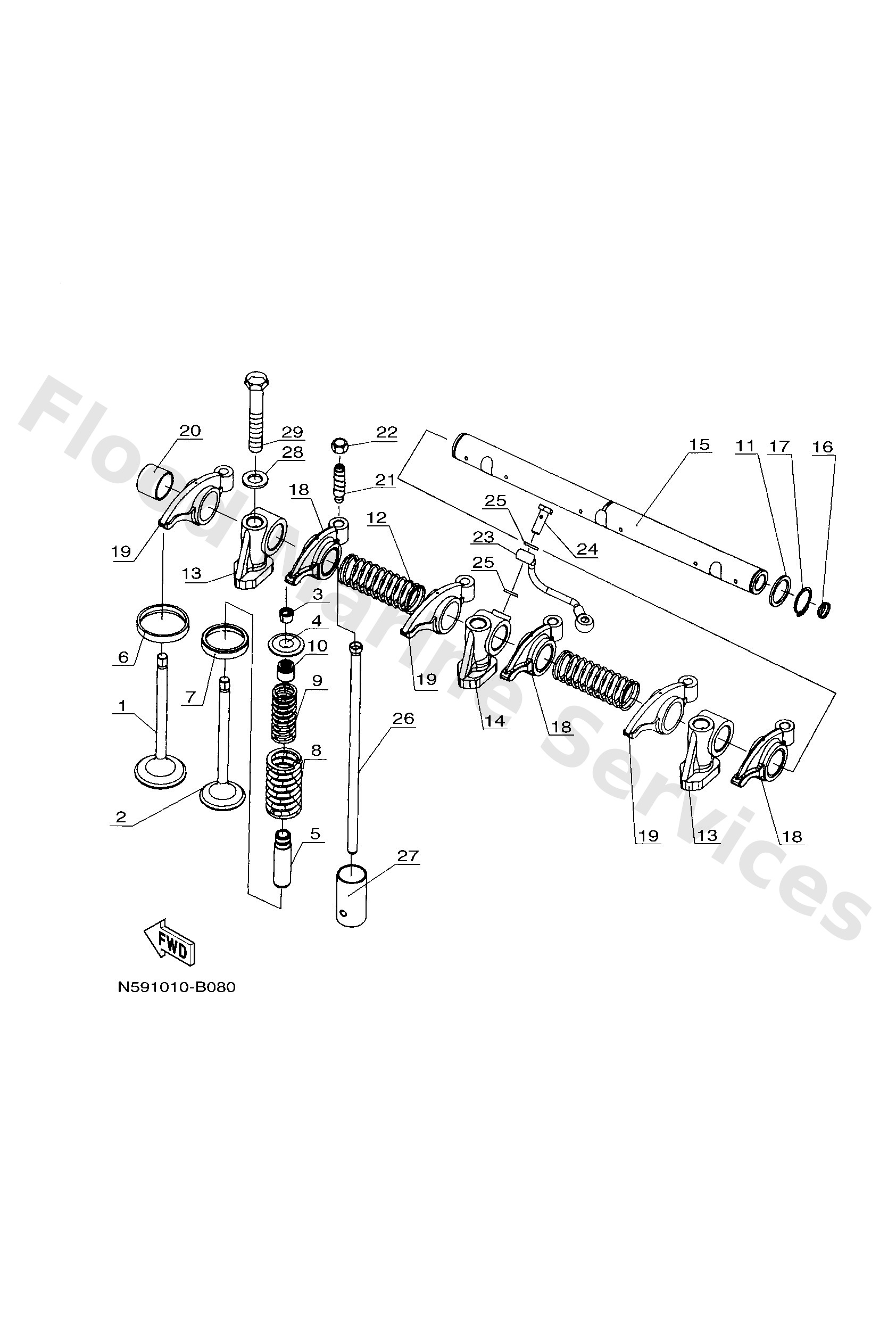

Diagram: VALVE

Diagram

Parts List

Reference
Description
Price


1
N591211100
Valve, intake
Loading…

↗
2
N591212100
Valve, exhaust
Loading…

↗
3
N5912118Y0
Valve Cotter
Loading…

↗
4
N5912117Y0
Retainer, Valve Spring
Loading…

↗
5
N5911133Y0
8- 5
Loading…

↗
6
N591112300
Seat, valve (in)
Loading…

↗
7
N591112400
Seat, valve (ex)
Loading…

↗
8
N5912113Y0
Valve Spring Outer
Loading…

↗
9
N5912114Y0
Valve Spring Inner
Loading…

↗
10
N5912119Y0
Seal, valve stem oil
Loading…

↗
11
N5913571Y0
Washer, Rocker Shaft
Loading…

↗
12
N5912216Y0
Rocker Arm Shaft Spring
Loading…

↗
13
N5912152Y0
Supt., Rocker Arm
Loading…

↗
14
N5912165Y0
Supt., Rocker Arm 2
Loading…

↗
15
N5912146Y0
Shaft, Rocker Arm
Loading…

↗
16
N5912229Y0
Plug
Loading…

↗
17
N5923183Y0
Circlip
Loading…

↗
18
N5912151Y0
Arm, Valve Rocker 1
Loading…

↗
19
N5912161Y0
Arm, Valve Rocker 2
Loading…

↗
20
N5911466Y0
Valve Rocker Arm Bush
Loading…

↗
21
N5912159Y0
Valve Adjust Screw
Loading…

↗
22
N5912158Y0
Lock Nut
Loading…

↗
23
N5917927Y0
Pipe, Oil
Loading…

↗
24
N5924586Y0
Bolt, Union M10
Loading…

↗
25
N5915457Y0
Gskt.
Loading…

↗
26
N5912154Y0
Rod, Valve Push
Loading…

↗
27
N5912153Y0
Lifter, Valve
Loading…

↗
28
N5914D57Y0
Washer
Loading…

↗
29
N5916777Y0
8- 29
Loading…

↗
