XF375NSA (2018)
VALVE 1

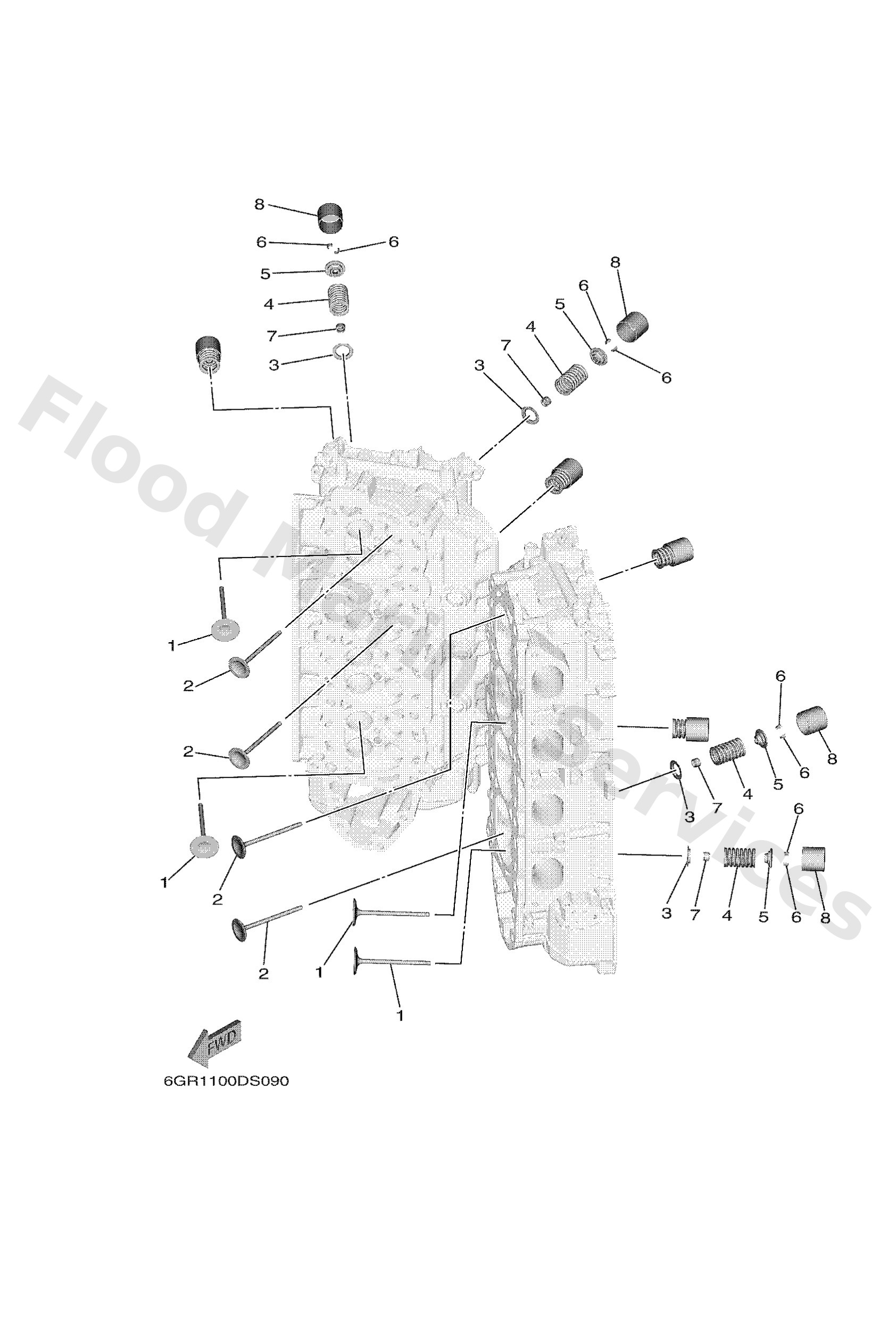

Diagram: VALVE 1
Parts List
Reference
Description
Price
1
6GR1211100
Valve, intake
Loading…
↗
2
6DX1212100
Valve, exhaust
Loading…
↗
3
K0FA374300
Seat, valve spring
Loading…
↗
4
6CB1211300
Spring, valve inner
Loading…
↗
5
K0FA374100
Retainer, valve spring
Loading…
↗
6
K0FA374200
Lock, valve spring retainer
Loading…
↗
7
51Y1211900
Seal, valve stem
Loading…
↗
8
6GR1215360
UR
Lifter, valve (3.140)
Loading…
↗
8
6GR1215340
UR
Lifter, valve (3.100)
Loading…
↗
8
6GR1215330
UR
Lifter, valve (3.075)
Loading…
↗
8
6GR1215320
UR
Lifter, valve (3.050)
Loading…
↗
8
6GR1215310
UR
Lifter, valve (3.025)
Loading…
↗
8
6GR1215300
UR
Lifter, valve (3.000)
Loading…
↗
8
6GR1215350
UR
Lifter, valve (3.120)
Loading…
↗
8
6GR1215370
UR
Lifter, valve (3.160)
Loading…
↗
8
6GR1215380
UR
Lifter, valve (3.180)
Loading…
↗
8
6GR1215390
UR
Lifter, valve (3.200)
Loading…
↗
8
6GR12153A0
UR
Lifter, valve (3.220)
Loading…
↗
8
6GR12153B0
UR
Lifter, valve (3.240)
Loading…
↗
8
6GR12153C0
UR
Lifter, valve (3.260)
Loading…
↗
8
6GR12153D0
UR
Lifter, valve (3.280)
Loading…
↗
8
6GR12153E0
UR
Lifter, valve (3.300)
Loading…
↗
8
6GR12153F0
UR
Lifter, valve (3.320)
Loading…
↗
8
6GR12153G0
UR
Lifter, valve (3.340)
Loading…
↗
8
6GR12153H0
UR
Lifter, valve (3.360)
Loading…
↗
8
6GR12153J0
UR
Lifter, valve (3.380)
Loading…
↗
8
6GR12153K0
UR
Lifter, valve (3.400)
Loading…
↗
8
6GR1214560
UR
Lifter, valve (3.700)
Loading…
↗
8
6GR12153M0
UR
Lifter, valve (3.440)
Loading…
↗
8
6GR12153N0
UR
Lifter, valve (3.460)
Loading…
↗
8
6GR12153P0
UR
Lifter, valve (3.480)
Loading…
↗
8
6GR12153R0
UR
Lifter, valve (3.500)
Loading…
↗
8
6GR12153S0
UR
Lifter, valve (3.520)
Loading…
↗
8
6GR12153T0
UR
Lifter, valve (3.540)
Loading…
↗
8
6GR1214500
UR
Lifter, valve (3.560)
Loading…
↗
8
6GR1214510
UR
Lifter, valve (3.580)
Loading…
↗
8
6GR1214520
UR
Lifter, valve (3.600)
Loading…
↗
8
6GR1214530
UR
Lifter, valve (3.625)
Loading…
↗
8
6GR1214540
UR
Lifter, valve (3.650)
Loading…
↗
8
6GR1214550
UR
Lifter, valve (3.675)
Loading…
↗
8
6GR12153L0
UR
Lifter, valve (3.420)
Loading…
↗
