Yamaha Outboard Parts - VAPOR SEPARATOR - XF425NSA (2022) | Flood Marine

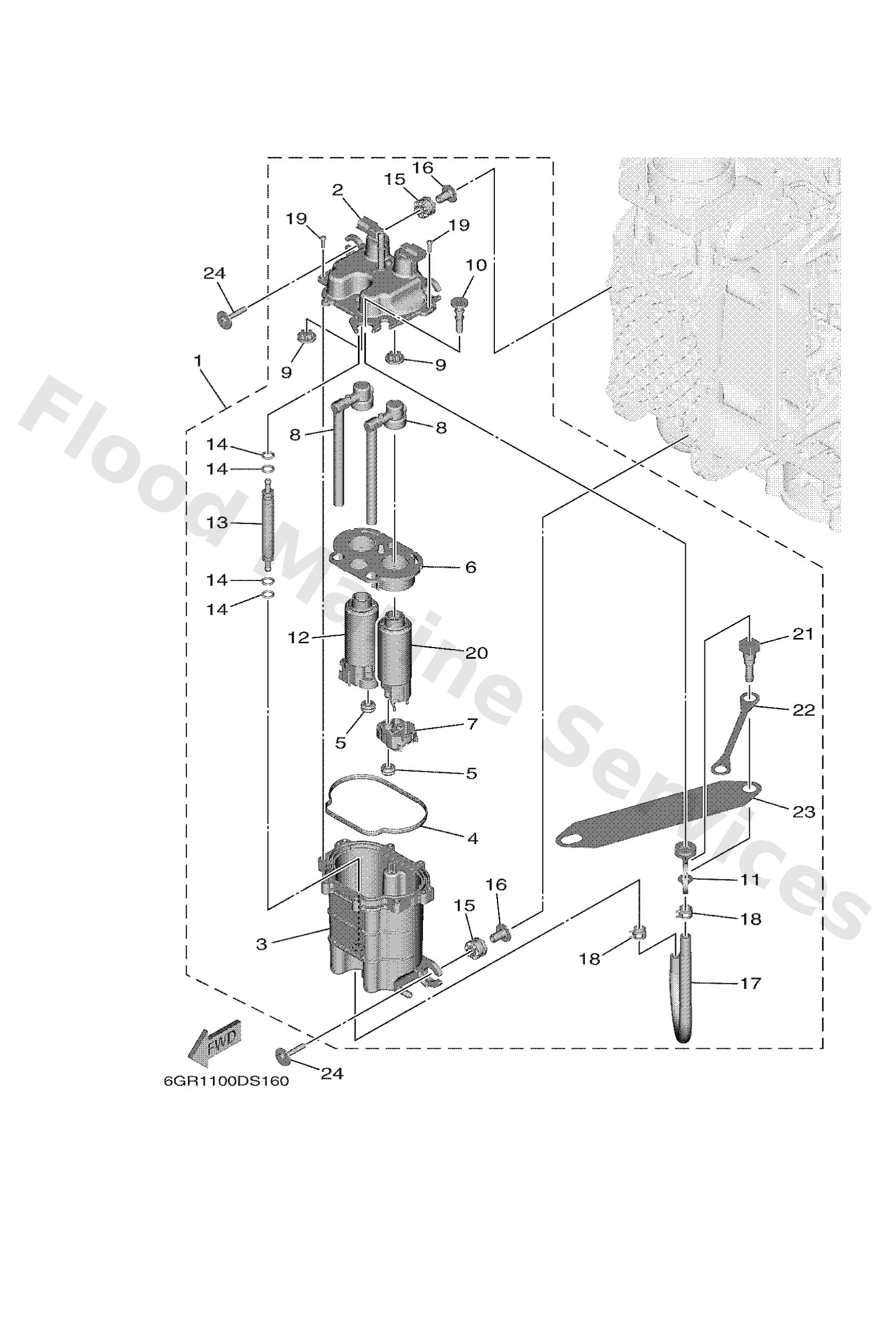

Diagram: VAPOR SEPARATOR

Diagram

Parts List

Reference
Description
Price


1
6GR2422003
Fuel tank comp. 2
Loading…

↗
2
6GR2422300
Cover, fuel tank assembly
Loading…

↗
3
6GR2422401
Case, fuel tank assembly.
Loading…

↗
4
6GR2421800
Gasket
Loading…

↗
5
6GR1378100
Damper, pump
Loading…

↗
6
6GR2441R00
Plate, baffle 1
Loading…

↗
7
6GR244A100
Case, pump 1
Loading…

↗
8
6GR1393800
Pipe
Loading…

↗
9
6GR1359300
Damper
Loading…

↗
10
6GR2419600
Plug, drain
Loading…

↗
11
6GR2419A00
Holder
Loading…

↗
12
6GR2443000
Fuel pump assembly
Loading…

↗
13
6GR2184100
Cooler
Loading…

↗
14
6FM1456200
O-ring
Loading…

↗
15
6CB1359300
Damper
Loading…

↗
16
6GR1371600
Collar
Loading…

↗
17
6GR1419700
Pipe
Loading…

↗
18
68V1357701
Clip
Loading…

↗
19
6GR1456700
Screw
Loading…

↗
20
6GR2442010
Fuel pump assembly
Loading…

↗
21
6AW2430011
Fuel pipe joint
Loading…

↗
22
6GR2411300
Plate, connecting
Loading…

↗
23
6GR2415H00
Label, warning
Loading…

↗
24
9011906299
Bolt, with washer
Loading…

↗
