Yamaha Outboard Parts - VAPOR SEPARATOR 1 - F80DET (2017) | Flood Marine
New Search
Parts
New Outboards
Home
F80DET (2017)
VAPOR SEPARATOR 1

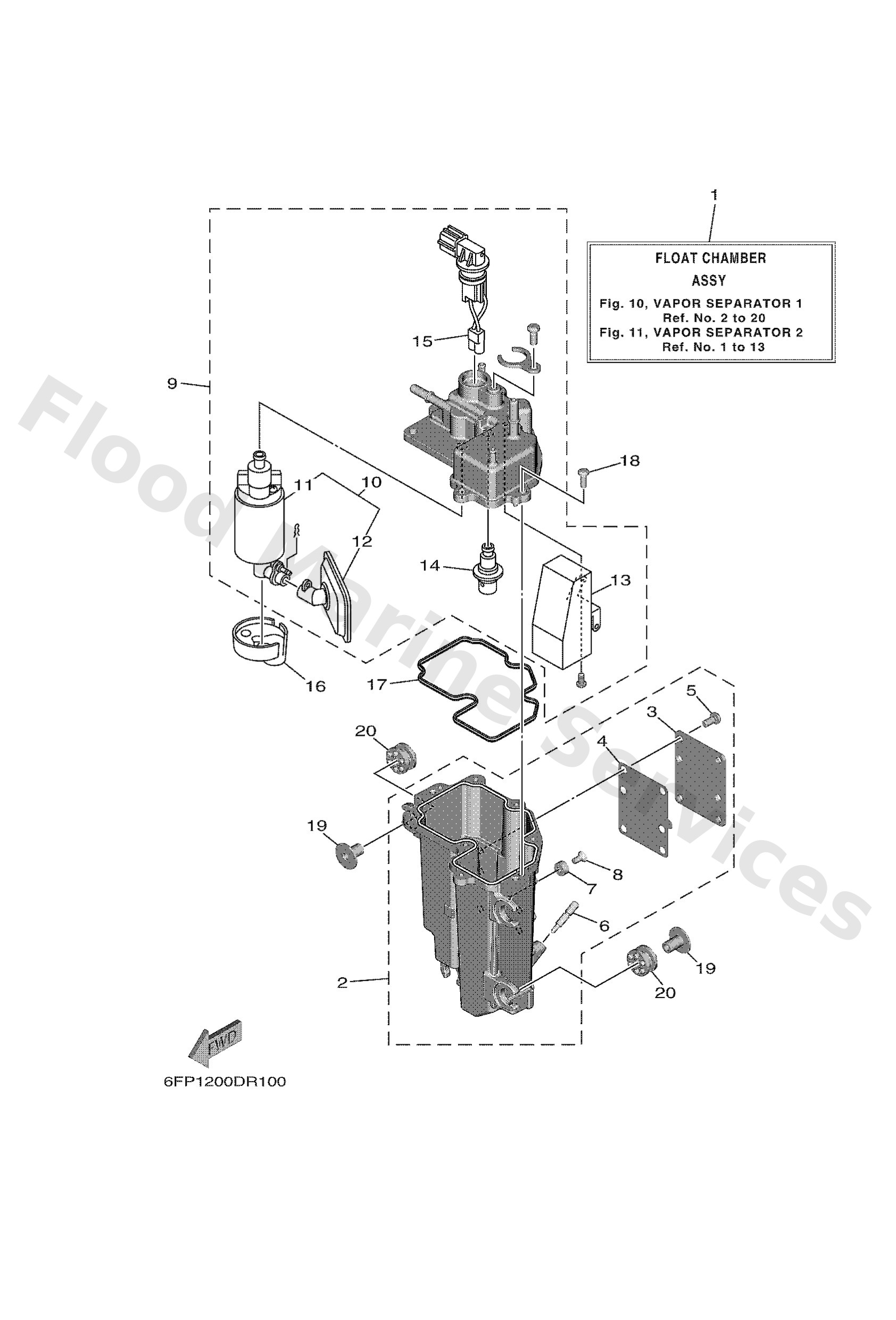

Diagram: VAPOR SEPARATOR 1
Parts List
Reference
Description
Price
1
6FP1418000
Float chamber assembly
Loading…
↗
2
6FP1496000
Body assembly
Loading…
↗
3
6FP2445200
Cover, cooler
Loading…
↗
4
6FP2446200
Gasket, cooler
Loading…
↗
5
6FP1459100
Screw
Loading…
↗
6
6C51419100
Plug, drain
Loading…
↗
7
63P1132521
Anode
Loading…
↗
8
6FP2444400
Screw
Loading…
↗
9
6FP1418200
Cover, float chamber
Loading…
↗
10
6FP1391000
Fuel pump assembly
Loading…
↗
11
6FP1390700
Fuel pump comp.
Loading…
↗
12
6FP1391500
Filter
Loading…
↗
13
6FP1498500
Float
Loading…
↗
14
6FP1390600
Regulator, pressure
Loading…
↗
15
6FP8722600
Wire harness assembly
Loading…
↗
16
6FP1359300
Damper
Loading…
↗
17
6FP1498400
Gasket, float chamber
Loading…
↗
18
6C51456700
Screw
Loading…
↗
19
9038706M03
Collar (676)
Loading…
↗
20
69L8551600
Spacer
Loading…
↗
