LZ300AETO (2006)
VAPOR SEPARATOR 1

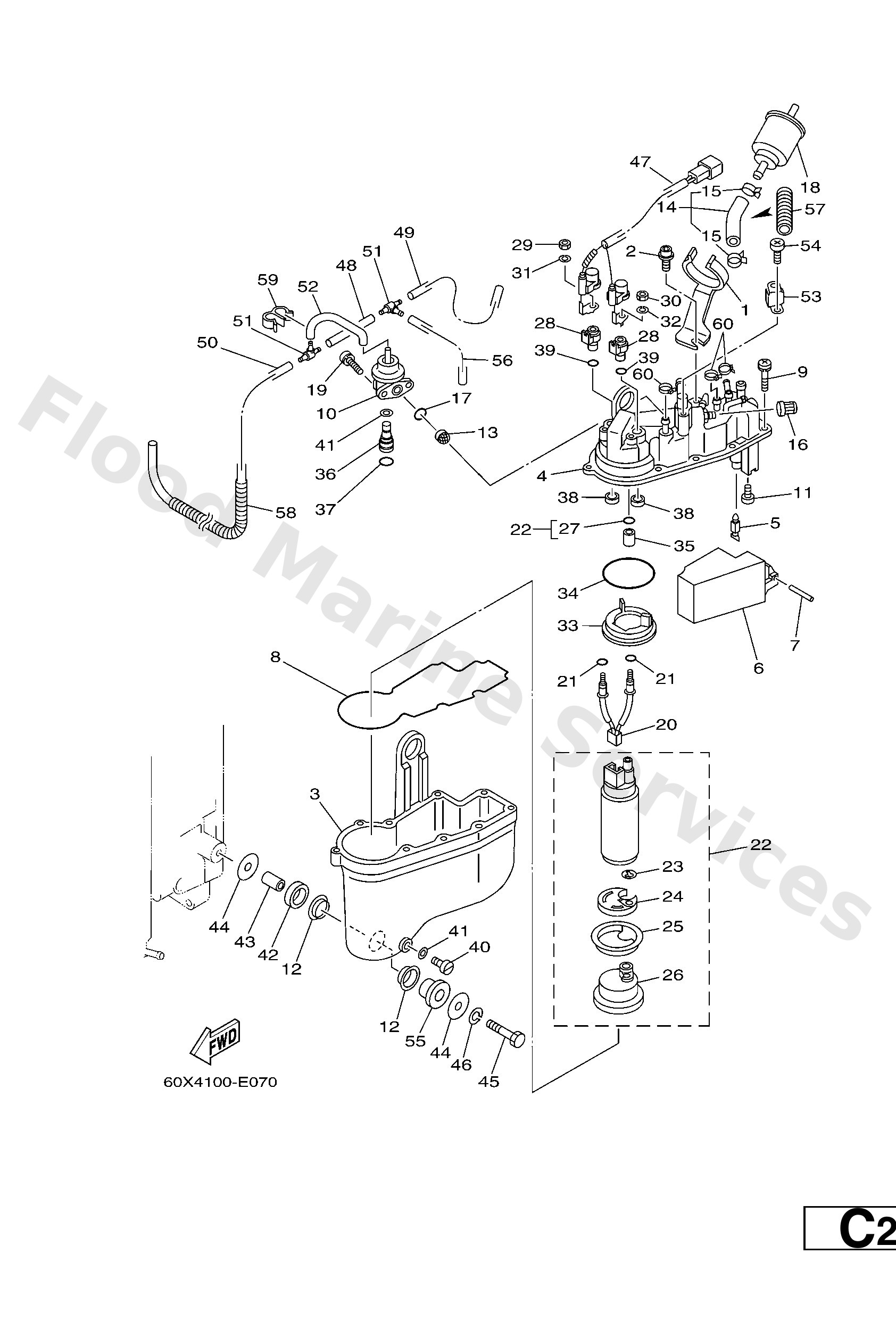

Diagram: VAPOR SEPARATOR 1
Parts List
Reference
Description
Price
1
60V2421600
Stay
Loading…
↗
2
6D02447300
Screw
Loading…
↗
3
60V1498000
Body, float chamber
Loading…
↗
4
60V1418201
Cover, float chamber
Loading…
↗
5
65L1454600
Valve, needle
Loading…
↗
6
66K1498500
Float
Loading…
↗
7
66K1454801
Pin, float arm
Loading…
↗
8
66K1498400
Gasket, float chamber
Loading…
↗
9
65L1412500
Screw
Loading…
↗
10
68F1390610
Regulator, pressure
Loading…
↗
11
66K1432501
Screw, pan head
Loading…
↗
12
60V1416300
Spacer
Loading…
↗
13
65L1390500
Filter comp
Loading…
↗
14
68F1397100
Pipe, fuel 1
Loading…
↗
15
65L2438700
Clip
Loading…
↗
16
65L1496600
Cap
Loading…
↗
17
65L2448600
O-ring
Loading…
↗
18
60V2425101
Strainer 1
Loading…
↗
19
66K1424500
Screw, guide
Loading…
↗
20
68F8250900
Wire, sub lead
Loading…
↗
21
65L1422700
Washer
Loading…
↗
22
60V1390700
Fuel pump comp.
Loading…
↗
23
65L1415900
Clip
Loading…
↗
24
68F1378100
Damper, pump
Loading…
↗
25
68F1384400
Plate 2
Loading…
↗
26
68F1391500
Filter
Loading…
↗
27
65L1416A00
O-ring
Loading…
↗
28
66K1427100
Insulator
Loading…
↗
29
65L8182A00
Nut
Loading…
↗
30
65L8182K00
Nut
Loading…
↗
31
65L8182E00
Washer
Loading…
↗
32
65L8182F00
Washer
Loading…
↗
33
68F1384300
Plate 1
Loading…
↗
34
65L1414700
O-ring
Loading…
↗
35
68F1427400
Connector
Loading…
↗
36
66K2437600
Pipe, joint 1
Loading…
↗
37
66K2448900
O-ring
Loading…
↗
38
68F1427100
Insulator
Loading…
↗
39
65L1439700
O-ring
Loading…
↗
40
65L1499200
Screw, drain
Loading…
↗
41
65L1499700
Seal
Loading…
↗
42
60V2437501
Grommet
Loading…
↗
43
60V2439701
Collar
Loading…
↗
44
66K2457900
Washer 2
Loading…
↗
45
65L2459200
Bolt
Loading…
↗
46
65L2416900
Washer, lock
Loading…
↗
47
60V8250700
Wire, lead
Loading…
↗
48
66K1354200
Hose, vacuum sensing 1
Loading…
↗
49
66K1354400
Hose, Vacuum Sensing 2
Loading…
↗
50
66K1353200
Hose, vacuum sensing 3
Loading…
↗
51
65L2446100
Pipe.joint 4
Loading…
↗
52
66K1353300
Hose, vacuum sensing 4
Loading…
↗
53
65L1389800
Plate 4
Loading…
↗
54
65L1456500
Screw
Loading…
↗
55
60V2433901
Grommet
Loading…
↗
56
60V1353400
Hose, Vacuum Sensing 5
Loading…
↗
57
6D02486A00
Pipe 1
Loading…
↗
58
6D02486D00
Pipe 2
Loading…
↗
59
9046407M20
Clamp(6h0)
Loading…
↗
60
9046511M10
Clamp
Loading…
↗
