Yamaha Outboard Parts - VAPOR SEPARATOR 1 - VF90A (2024) | Flood Marine

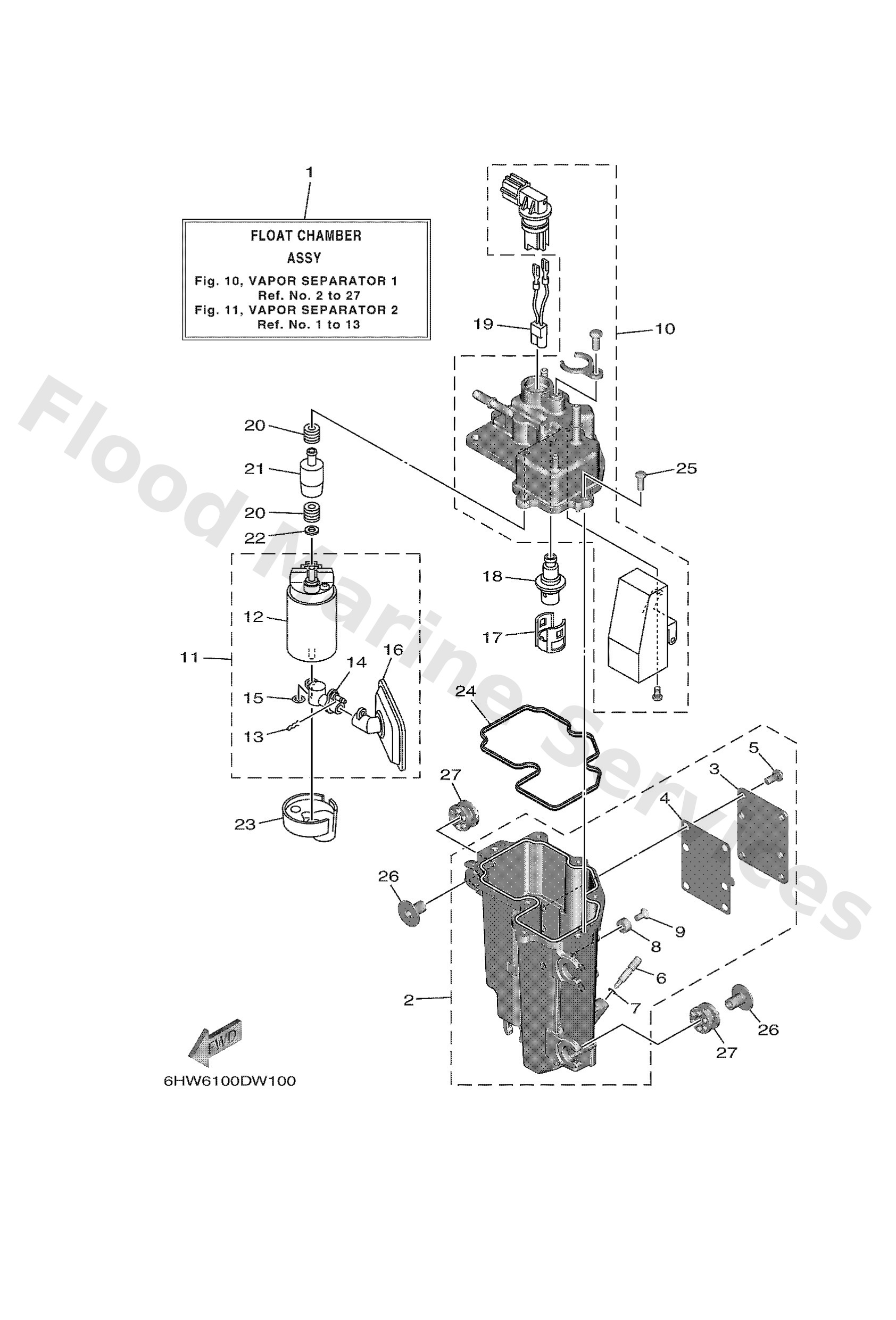

Diagram: VAPOR SEPARATOR 1

Diagram

Parts List

Reference
Description
Price


1
6FP1418003
Float chamber assembly
Loading…

↗
2
6FP1496000
Body assembly
Loading…

↗
3
6FP2445200
Cover, cooler
Loading…

↗
4
6FP2446200
Gasket, cooler
Loading…

↗
5
6FP1459100
Screw
Loading…

↗
6
6C51419100
Plug, drain
Loading…

↗
7
6C51439700
O-ring
Loading…

↗
8
63P1132521
Anode
Loading…

↗
9
6FP2444400
Screw
Loading…

↗
10
6FP1418201
Cover, float chamber
Loading…

↗
11
6FP1391001
Fuel pump assembly
Loading…

↗
12
6FP1390701
Fuel pump comp.
Loading…

↗
13
6BG1413700
Clip
Loading…

↗
14
6FP1393800
Joint
Loading…

↗
15
6C51412710
Clip
Loading…

↗
16
6FP1391500
Filter
Loading…

↗
17
6FP1392700
Support
Loading…

↗
18
6FP1390600
Regulator, pressure
Loading…

↗
19
6FP8722600
Wire harness assembly
Loading…

↗
20
6C51378100
Damper, pump
Loading…

↗
21
6FP1313200
Adaptor
Loading…

↗
22
6FP1371600
Specer, fuel pump
Loading…

↗
23
6FP1359301
Damper
Loading…

↗
24
6FP1498400
Gasket, float chamber
Loading…

↗
25
6C51456700
Screw
Loading…

↗
26
9038706M03
Collar (676)
Loading…

↗
27
69L8551601
Spacer
Loading…

↗
