VZ150TRC (2004)
VAPOR SEPARATOR 1

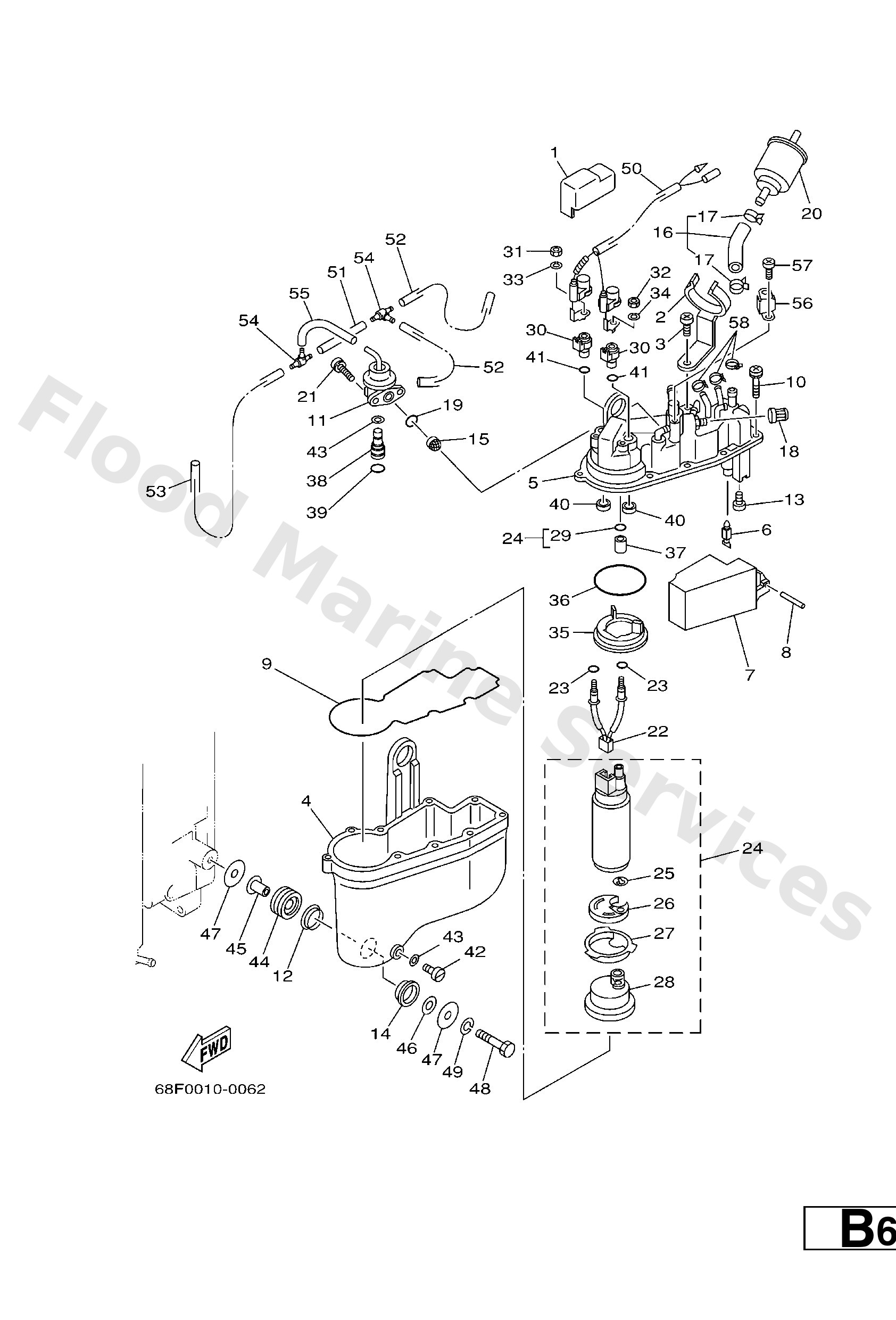

Diagram: VAPOR SEPARATOR 1
Parts List
Reference
Description
Price
1
68F1378400
Cover, pump
Loading…
↗
2
68F2421600
Stay
Loading…
↗
3
68F2447300
Screw
Loading…
↗
4
66K1498000
Body, float chamber
Loading…
↗
5
68F1418201
Cover, float chamber
Loading…
↗
6
65L1454600
Valve, needle
Loading…
↗
7
66K1498500
Float
Loading…
↗
8
66K1454801
Pin, float arm
Loading…
↗
9
66K1498400
Gasket, float chamber
Loading…
↗
10
65L1412500
Screw
Loading…
↗
11
68F1390600
Regulator, pressure
Loading…
↗
12
66K1423900
Seal
Loading…
↗
13
66K1432501
Screw, pan head
Loading…
↗
14
66K1416300
Spacer
Loading…
↗
15
65L1390500
Filter comp
Loading…
↗
16
68F1397100
Pipe, fuel 1
Loading…
↗
17
65L2438700
Clip
Loading…
↗
18
65L1496600
Cap
Loading…
↗
19
65L2448600
O-ring
Loading…
↗
20
68F2425100
Strainer 1
Loading…
↗
21
66K1424500
Screw, guide
Loading…
↗
22
68F8250901
Wire, sub lead
Loading…
↗
23
65L1422700
Washer
Loading…
↗
24
68F1390701
Fuel pump comp.
Loading…
↗
25
65L1415900
Clip
Loading…
↗
26
68F1378100
Damper, pump
Loading…
↗
27
68F1384400
Plate 2
Loading…
↗
28
68F1391500
Filter
Loading…
↗
29
65L1416A00
O-ring
Loading…
↗
30
66K1427100
Insulator
Loading…
↗
31
65L8182A00
Nut
Loading…
↗
32
65L8182K00
Nut
Loading…
↗
33
65L8182E00
Washer
Loading…
↗
34
65L8182F00
Washer
Loading…
↗
35
68F1384300
Plate 1
Loading…
↗
36
65L1414700
O-ring
Loading…
↗
37
68F1427400
Connector
Loading…
↗
38
66K2437600
Pipe, joint 1
Loading…
↗
39
66K2448900
O-ring
Loading…
↗
40
68F1427100
Insulator
Loading…
↗
41
65L1439700
O-ring
Loading…
↗
42
65L1499200
Screw, drain
Loading…
↗
43
65L1499700
Seal
Loading…
↗
44
65L2437500
Grommet
Loading…
↗
45
65L2439700
Collar
Loading…
↗
46
65L2457600
Washer
Loading…
↗
47
66K2457900
Washer 2
Loading…
↗
48
65L2459200
Bolt
Loading…
↗
49
65L2416900
Washer, lock
Loading…
↗
50
68F8250700
Wire, lead
Loading…
↗
51
66K1354200
Hose, vacuum sensing 1
Loading…
↗
52
66K1354400
Hose, Vacuum Sensing 2
Loading…
↗
53
66K1353200
Hose, vacuum sensing 3
Loading…
↗
54
65L2446100
Pipe.joint 4
Loading…
↗
55
66K1353300
Hose, vacuum sensing 4
Loading…
↗
56
65L1389800
Plate 4
Loading…
↗
57
65L1456500
Screw
Loading…
↗
58
9046511M10
Clamp
Loading…
↗
