Yamaha Outboard Parts - VAPOR SEPARATOR 1 - Z250FETO (2003) | Flood Marine

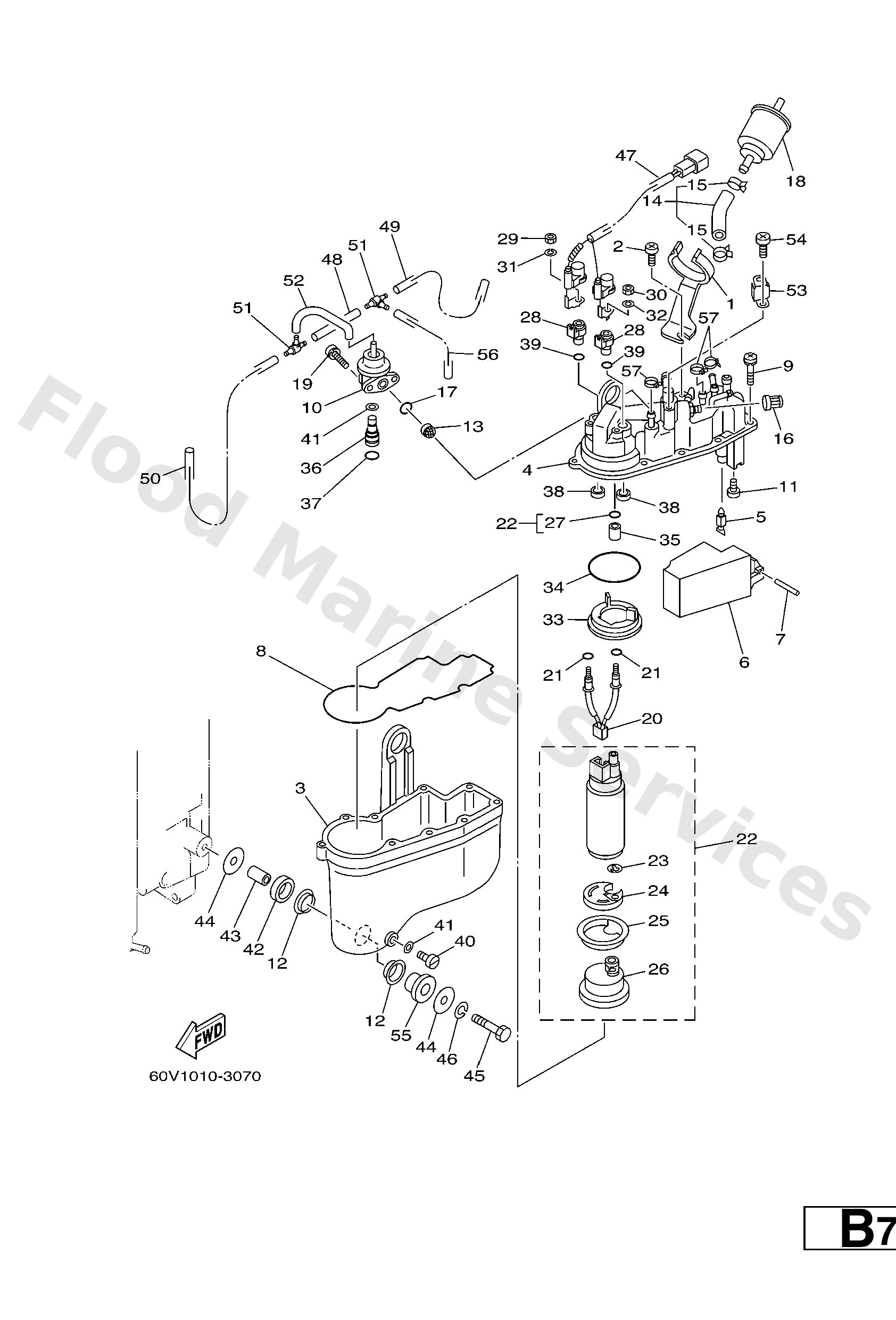

Diagram: VAPOR SEPARATOR 1

Diagram

Parts List

Reference
Description
Price


1
60V2421600
Stay
Loading…

↗
2
68F2447300
Screw
Loading…

↗
3
60V1498000
Body, float chamber
Loading…

↗
4
60V1418200
Cover, float chamber
Loading…

↗
5
65L1454600
Valve, needle
Loading…

↗
6
66K1498500
Float
Loading…

↗
7
66K1454801
Pin, float arm
Loading…

↗
8
66K1498400
Gasket, float chamber
Loading…

↗
9
65L1412500
Screw
Loading…

↗
10
68F1390600
Regulator, pressure
Loading…

↗
11
66K1432501
Screw, pan head
Loading…

↗
12
60V1416300
Spacer
Loading…

↗
13
65L1390500
Filter comp
Loading…

↗
14
68F1397100
Pipe, fuel 1
Loading…

↗
15
65L2438700
Clip
Loading…

↗
16
65L1496600
Cap
Loading…

↗
17
65L2448600
O-ring
Loading…

↗
18
68F2425100
Strainer 1
Loading…

↗
19
66K1424500
Screw, guide
Loading…

↗
20
68F8250900
Wire, sub lead
Loading…

↗
21
65L1422700
Washer
Loading…

↗
22
60V1390700
Fuel pump comp.
Loading…

↗
23
65L1415900
Clip
Loading…

↗
24
68F1378100
Damper, pump
Loading…

↗
25
68F1384400
Plate 2
Loading…

↗
26
68F1391500
Filter
Loading…

↗
27
65L1416A00
O-ring
Loading…

↗
28
66K1427100
Insulator
Loading…

↗
29
65L8182A00
Nut
Loading…

↗
30
65L8182K00
Nut
Loading…

↗
31
65L8182E00
Washer
Loading…

↗
32
65L8182F00
Washer
Loading…

↗
33
68F1384300
Plate 1
Loading…

↗
34
65L1414700
O-ring
Loading…

↗
35
68F1427400
Connector
Loading…

↗
36
66K2437600
Pipe, joint 1
Loading…

↗
37
66K2448900
O-ring
Loading…

↗
38
68F1427100
Insulator
Loading…

↗
39
65L1439700
O-ring
Loading…

↗
40
65L1499200
Screw, drain
Loading…

↗
41
65L1499700
Seal
Loading…

↗
42
60V2437501
Grommet
Loading…

↗
43
60V2439701
Collar
Loading…

↗
44
66K2457900
Washer 2
Loading…

↗
45
65L2459200
Bolt
Loading…

↗
46
65L2416900
Washer, lock
Loading…

↗
47
60V8250700
Wire, lead
Loading…

↗
48
66K1354200
Hose, vacuum sensing 1
Loading…

↗
49
66K1354400
Hose, Vacuum Sensing 2
Loading…

↗
50
66K1353200
Hose, vacuum sensing 3
Loading…

↗
51
65L2446100
Pipe.joint 4
Loading…

↗
52
66K1353300
Hose, vacuum sensing 4
Loading…

↗
53
65L1389800
Plate 4
Loading…

↗
54
65L1456500
Screw
Loading…

↗
55
60V2433901
Grommet
Loading…

↗
56
60V1353400
Hose, Vacuum Sensing 5
Loading…

↗
57
9046511M10
Clamp
Loading…

↗
