VF90B (2025)
VAPOR SEPARATOR 2

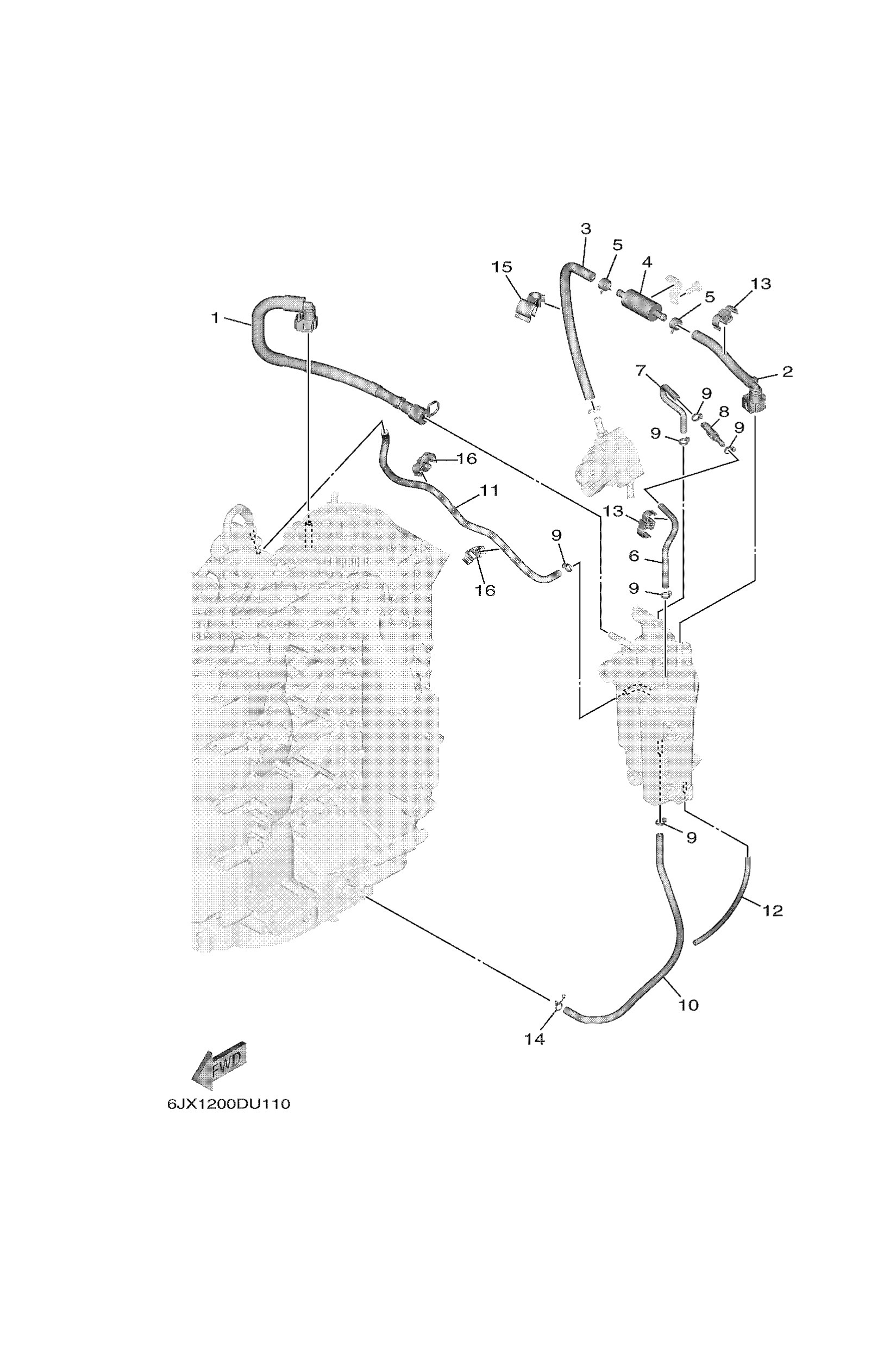

Diagram: VAPOR SEPARATOR 2
Parts List
Reference
Description
Price
1
6FP1397401
Pipe, fuel 4
Loading…
↗
2
6FP2433000
Fuel pipe assembly
Loading…
↗
3
6FP1397200
Pipe, fuel 2
Loading…
↗
4
6C52425101
Strainer 1
Loading…
↗
5
6BG2438700
Clip
Loading…
↗
6
6FP1354500
Hose 1
Loading…
↗
7
6FP1354600
Hose 2
Loading…
↗
8
6FP2437900
Pipe, joint 4
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
6FP2432400
Pipe 13
Loading…
↗
11
6FP2432500
Pipe 14
Loading…
↗
12
6BG1414900
Pipe
Loading…
↗
13
6FP2133700
Clamp, cable
Loading…
↗
14
9046708M18
Clip
Loading…
↗
15
9046415007
Clamp
Loading…
↗
16
9046412010
Clamp
Loading…
↗
