Yamaha Outboard Parts - VAPOR SEPARATOR 2 - VZ150TRC (2004) | Flood Marine

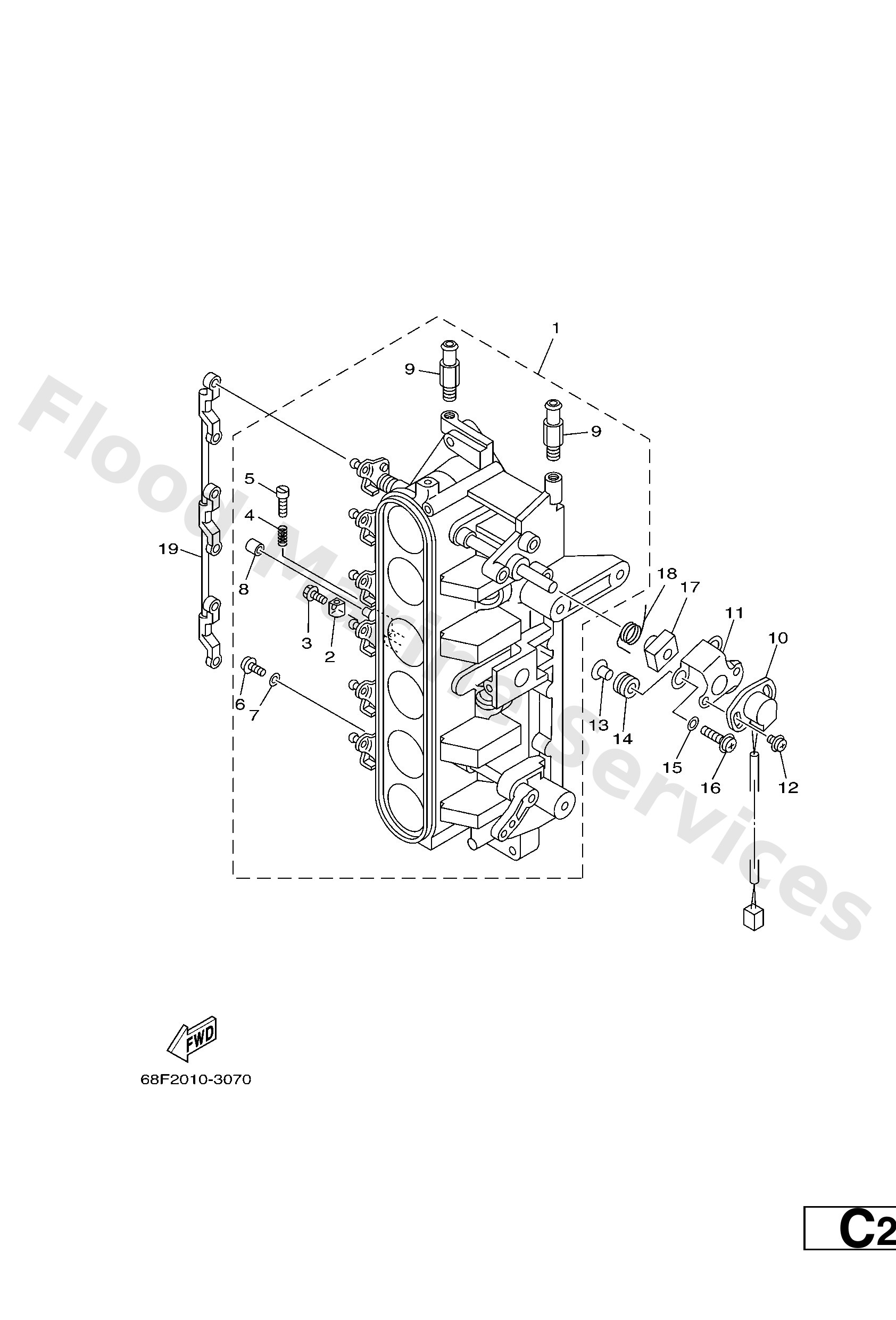

Diagram: VAPOR SEPARATOR 2

Diagram

Parts List

Reference
Description
Price


1
68F1375100
Body, throttle 1
Loading…

↗
2
65L1452700
Plate
Loading…

↗
3
65L1456500
Screw
Loading…

↗
4
65L1433400
Spring, air adjusting
Loading…

↗
5
65L1452300
Screw, stop
Loading…

↗
6
6K51459200
Screw
Loading…

↗
7
9020105552
Washer, plate(65j)
Loading…

↗
8
65L1457800
Collar
Loading…

↗
9
68F1356800
Stud
Loading…

↗
10
61A8588500
Throttle sensor assembly
Loading…

↗
11
6K78588600
Bracket
Loading…

↗
12
9798505212
Screw, with washer(6g7)
Loading…

↗
13
9038705M00
Collar(6k7)
Loading…

↗
14
9048010M23
Grommet(6k7)
Loading…

↗
15
65L1459600
Washer
Loading…

↗
16
9798505330
Screw, with washer(61b)
Loading…

↗
17
65L1457300
Lever
Loading…

↗
18
65L1457900
Spring
Loading…

↗
19
65L4121700
Rod, accel. lever
Loading…

↗
