Z200NETO (2003)
VAPOR SEPARATOR 2

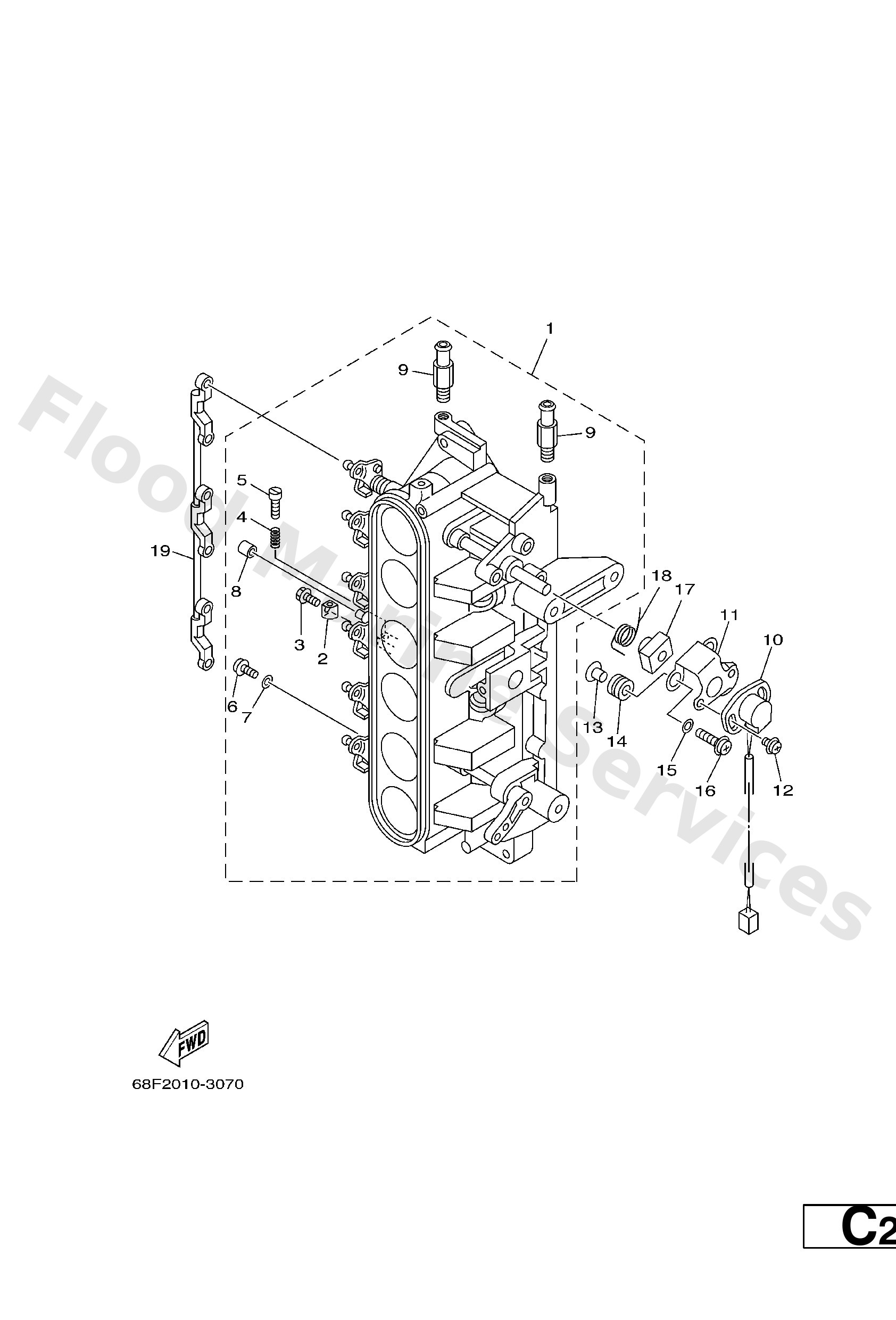

Diagram: VAPOR SEPARATOR 2
Parts List
Reference
Description
Price
1
68F−13751−00
Body, throttle 1
Loading…
↗
2
65L−14527−00
Plate
Loading…
↗
3
65L−14565−00
Screw
Loading…
↗
4
65L−14334−00
Spring, air adjusting
Loading…
↗
5
65L−14523−00
Screw, stop
Loading…
↗
6
6K5−14592−00
Screw
Loading…
↗
7
90201−05552
Washer, plate(65j)
Loading…
↗
8
65L−14578−00
Collar
Loading…
↗
9
68F−13568−00
Stud
Loading…
↗
10
61A−85885−00
Throttle sensor assembly
Loading…
↗
11
6K7−85886−00
Bracket
Loading…
↗
12
97985−05212
Screw, with washer(6g7)
Loading…
↗
13
90387−05M00
Collar(6k7)
Loading…
↗
14
90480−10M23
Grommet(6k7)
Loading…
↗
15
65L−14596−00
Washer
Loading…
↗
16
97985−05330
Screw, with washer(61b)
Loading…
↗
17
65L−14573−00
Lever
Loading…
↗
18
65L−14579−00
Spring
Loading…
↗
19
65L−41217−00
Rod, accel. lever
Loading…
↗
