Yamaha Outboard Parts - VENTILATION - ME372STIP1 (2007) | Flood Marine

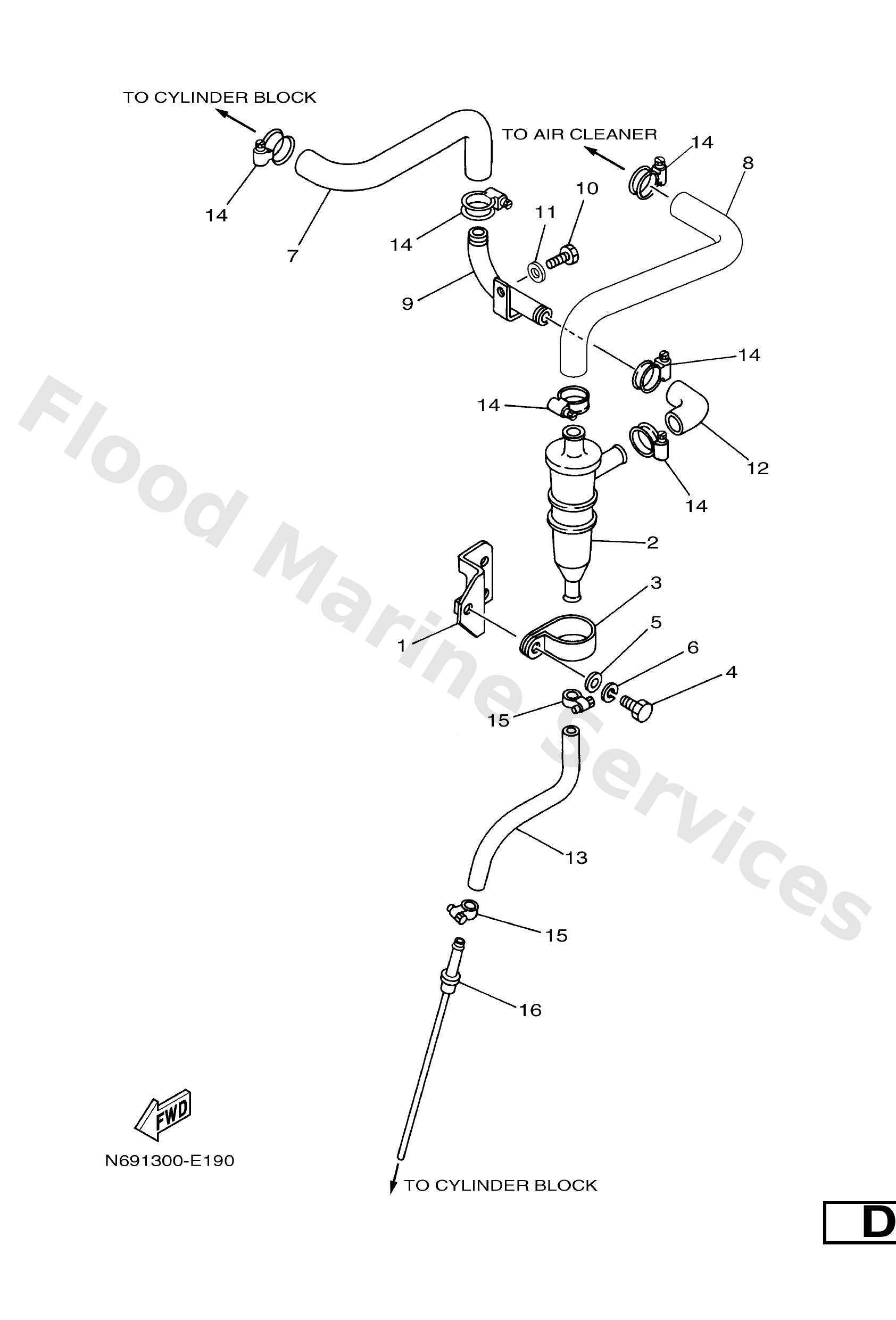

Diagram: VENTILATION

Diagram

Parts List

Reference
Description
Price


1
6TC1315100
Stay
Loading…

↗
2
6TA1537000
Breather assembly
Loading…

↗
3
6TA1537800
Holder
Loading…

↗
4
9702708016
Bolt, hexagon
Loading…

↗
5
9290708600
Washer(6ta)
Loading…

↗
6
9290708200
Washer(6tc)
Loading…

↗
7
6TC1531A00
Hose, breather 1
Loading…

↗
8
N691532A00
Hose, breather 2
Loading…

↗
9
6TC1537300
Pipe, breather
Loading…

↗
12
6TA1539400
Pipe, oil vent
Loading…

↗
13
6TC1346500
Hose, oil 2
Loading…

↗
14
9046016192
Hose clamp assembly(4jt)
Loading…

↗
15
9046016M18
Clamp, hose(6ta)
Loading…

↗
16
6TC1340500
Oil pipe comp. 1
Loading…

↗
