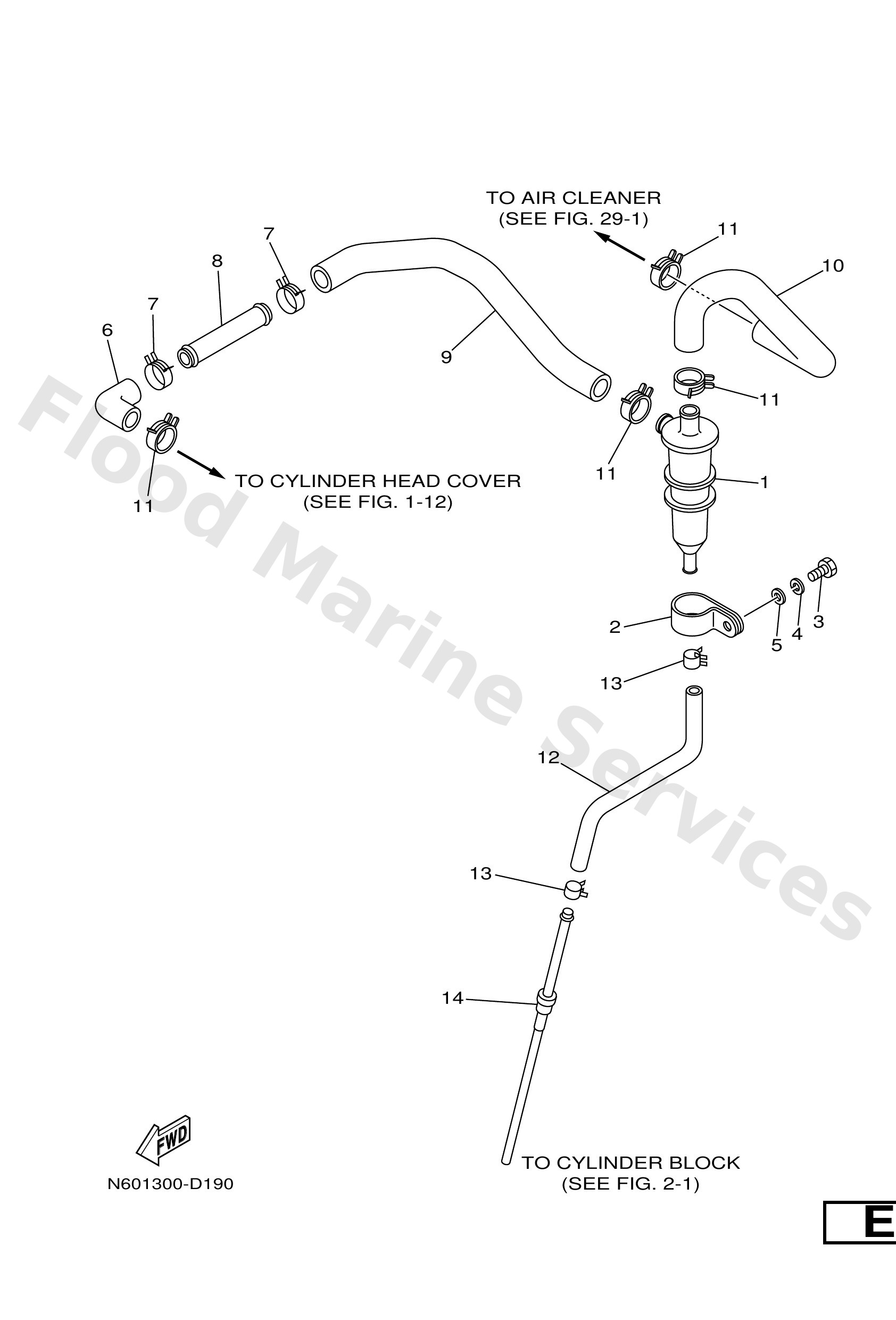

Diagram: VENTILATION

Diagram

Parts List

Reference
Description
Price


1
6TA1537000
Breather assembly
Loading…

↗
2
6TA1537800
Holder
Loading…

↗
2
3
-
Loading…

↗
3
9702708016
Bolt, hexagon
Loading…

↗
4
9290708600
Washer(6ta)
Loading…

↗
5
9290708200
Washer(6tc)
Loading…

↗
8
6TA1537300
Pipe, breather
Loading…

↗
9
6
-
Loading…

↗
11
7
6Tc-41661-00
Loading…

↗
11
9
-
Loading…

↗
11
9046723177
Clip(4hc)
Loading…

↗
12
6TA1346500
Hose, oil 2
Loading…

↗
14
6TA1340501
Oil Pipe Comp. 1
Loading…

↗
14
N601300D190
(See Fig. 2-1)
