F100AET (1999)
Valve

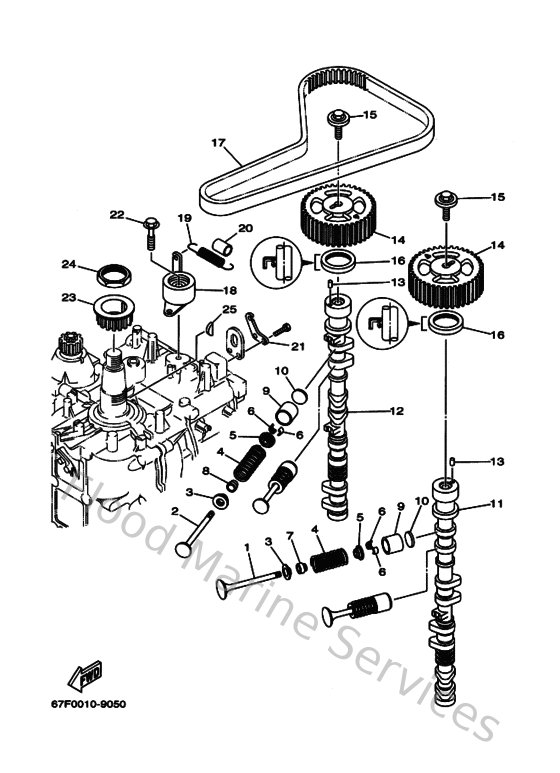

Diagram: Valve
Parts List
Reference
Description
Price
1
67F121110000
Valve, intake
Loading…
↗
2
67F121210000
Valve, exhaust
Loading…
↗
3
67F121160000
Seat, valve spring
Loading…
↗
4
67F121140000
Spring, valve outer
Loading…
↗
5
67F121170000
Retainer, valve spring
Loading…
↗
6
67F121180000
Cotter, valve
Loading…
↗
7
K0AA37210000
Seal, valve stem
Loading…
↗
8
K0AA37220000
Seal, valve stem 2
Loading…
↗
9
67F121530000
Lifter, valve
Loading…
↗
10
67F121697000
Pad, adjusting (2.950)
Loading…
↗
11
67F121710000
Camshaft 1
Loading…
↗
12
6D8121810000
Camshaft 2
Loading…
↗
13
936051010800
Pin, dowel (8g8)
Loading…
↗
14
67F115370000
Gear, driven
Loading…
↗
15
9011910M0600
Bolt
Loading…
↗
16
9310238M5400
Oil seal
Loading…
↗
17
67F462410000
Belt
Loading…
↗
18
67F115900000
Tensioner assembly
Loading…
↗
19
9050616M3900
Spring, tension
Loading…
↗
20
9044515M0300
Hose (l23)
Loading…
↗
21
67F115950000
Plate,valve
Loading…
↗
22
9011910M7200
Bolt, with washer(6m6)
Loading…
↗
23
67F115360000
Gear Drive
Loading…
↗
24
9017040M3900
Nut
Loading…
↗
25
9028004M0200
Key, woodruff (688)
Loading…
↗
