F50AE (2000)
Valve

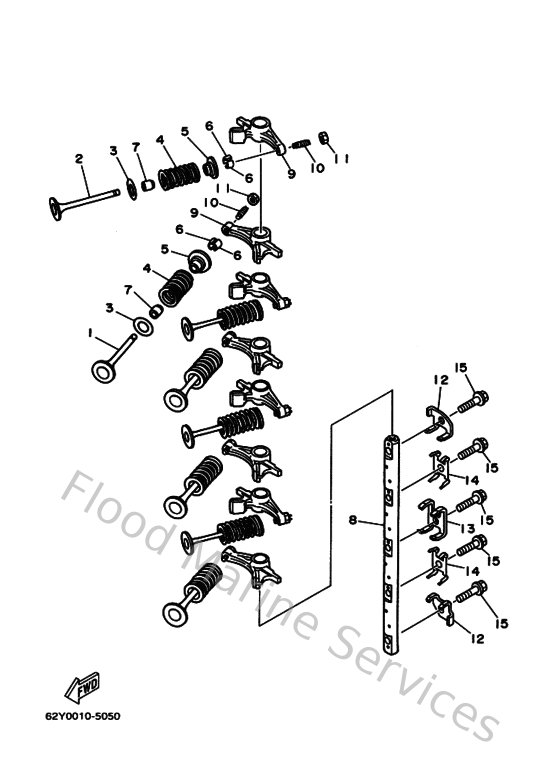

Diagram: Valve
Parts List
Reference
Description
Price
1
62Y121110000
Valve, intake
Loading…
↗
2
62Y121210000
Valve, exhaust
Loading…
↗
3
62Y121160000
Seat, valve spring
Loading…
↗
4
51Y121140000
Spring, valve outer
Loading…
↗
5
30X121170000
Retainer, valve spring
Loading…
↗
6
30X121180000
Cotter, valve
Loading…
↗
7
6EEE21190000
Seal, valve stem
Loading…
↗
8
62Y121460000
Shaft, rocker
Loading…
↗
9
62Y121510000
Arm, valve rocker
Loading…
↗
10
62Y121590000
Screw Valve Adjusting
Loading…
↗
11
62Y121580000
Nut, lock
Loading…
↗
12
62Y122380000
Plate Bolt Stopper
Loading…
↗
13
62Y122790000
Plate
Loading…
↗
14
62Y122160000
Spring
Loading…
↗
15
9010908M6300
Bolt(62y)
Loading…
↗
