F6BMH (2001)
Valve

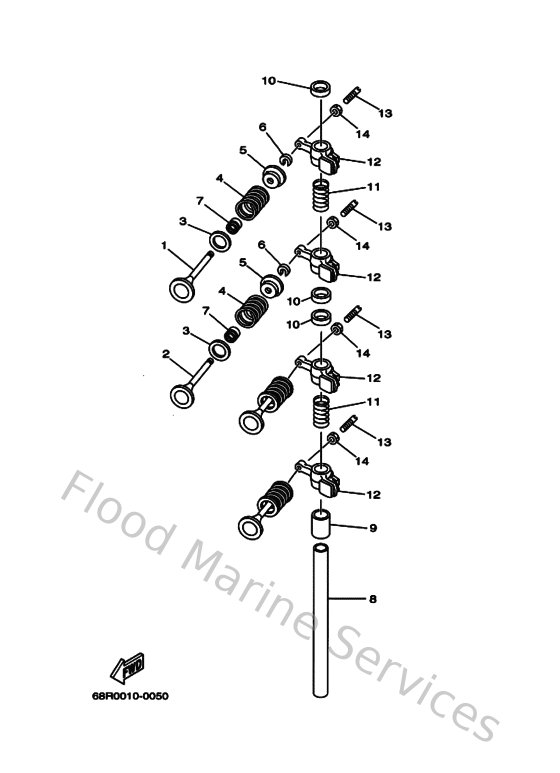

Diagram: Valve
Parts List
Reference
Description
Price
1
67D121110000
Valve, intake
Loading…
↗
2
67D121210000
Valve, exhaust
Loading…
↗
3
6EEE21160000
Seat, valve spring
Loading…
↗
4
68T121130000
Spring, valve inne
Loading…
↗
5
7NJ121170000
Retainer, valve spring
Loading…
↗
6
7CNE21180000
Cotter, valve
Loading…
↗
7
6EEE21190000
Seal, valve stem
Loading…
↗
8
68T121460000
Shaft, rocker
Loading…
↗
9
9038713M5600
Collar (6g8)
Loading…
↗
10
9038714M0300
Collar
Loading…
↗
11
9050112M4000
Spring, compression (6g8)
Loading…
↗
12
68T121510000
Arm, valve rocker
Loading…
↗
13
6G8121590000
Screw, valve adjusting
Loading…
↗
14
6G8121580000
Nut, lock
Loading…
↗
