F8BMH (1991)
Valve

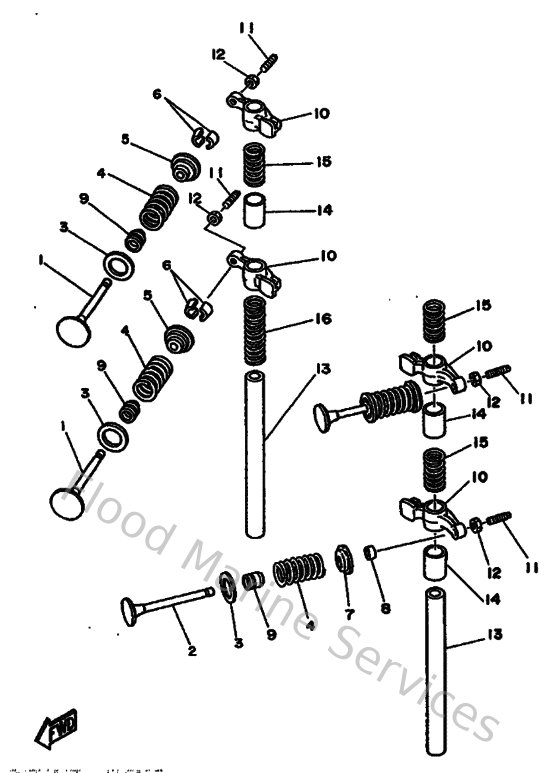

Diagram: Valve
Parts List
Reference
Description
Price
1
6G8121110000
Valve, intake
Loading…
↗
2
6G8121210100
Valve, exhaust
Loading…
↗
3
6G8121160000
Seat, Valve Spring
Loading…
↗
4
6G8121130000
Spring, Valve Inner
Loading…
↗
5
6G8121170000
Retainer, Valve Spring
Loading…
↗
6
30X121180000
Cotter, valve
Loading…
↗
7
6G8121171000
Retainer, Valve Spring
Loading…
↗
8
6G8121530000
Lifter, valve
Loading…
↗
9
6EEE21190000
Seal, valve stem
Loading…
↗
10
6G8121510000
Arm, Valve Rocker
Loading…
↗
11
6G8121590000
Screw, valve adjusting
Loading…
↗
12
6G8121580000
Nut, lock
Loading…
↗
13
6G8121460000
Shaft, Rocker
Loading…
↗
14
9038713M5600
Collar (6g8)
Loading…
↗
15
9050112M4000
Spring, compression (6g8)
Loading…
↗
16
9050112M4100
Spring Compression (6G8)
Loading…
↗
