Z150PETOL (2001)
Vapor Separator 2

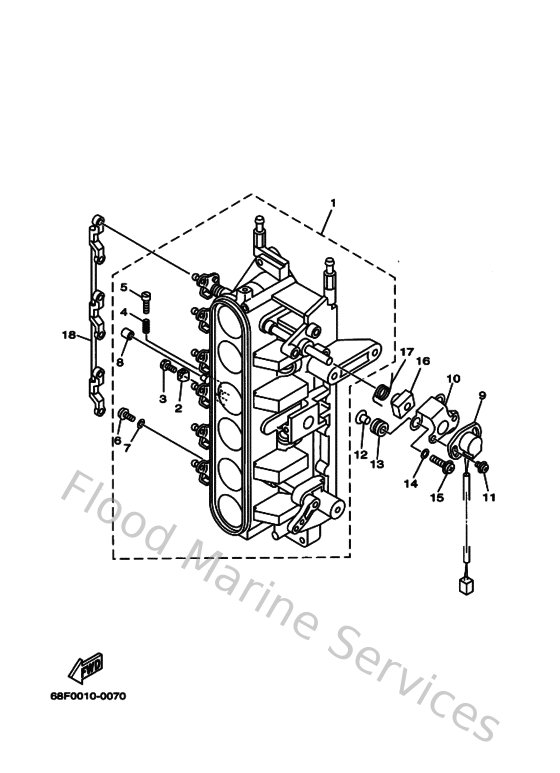

Diagram: Vapor Separator 2
Parts List
Reference
Description
Price
1
68F137510000
Body, throttle 1
Loading…
↗
2
65L145270000
Plate
Loading…
↗
3
65L145650000
Screw
Loading…
↗
4
65L143340000
Spring, air adjusting
Loading…
↗
5
65L145230000
Screw, stop
Loading…
↗
6
6K5145920000
Screw
Loading…
↗
7
902010555200
Washer, plate(65j)
Loading…
↗
8
65L145780000
Collar
Loading…
↗
9
6X2858851000
Throttle sensor assembly
Loading…
↗
10
6K7858860000
Bracket
Loading…
↗
11
979850521200
Screw, with washer(6g7)
Loading…
↗
12
9038705M0000
Collar(6k7)
Loading…
↗
13
9048010M2300
Grommet(6k7)
Loading…
↗
14
65L145960000
Washer
Loading…
↗
15
979850533000
Screw, with washer(61b)
Loading…
↗
16
65L145730000
Lever
Loading…
↗
17
65L145790000
Spring
Loading…
↗
18
65L412170000
Rod, accel. lever
Loading…
↗
