Yamaha Outboard Parts - WATER COOLING 2 - ME422STIP1 (2013) | Flood Marine

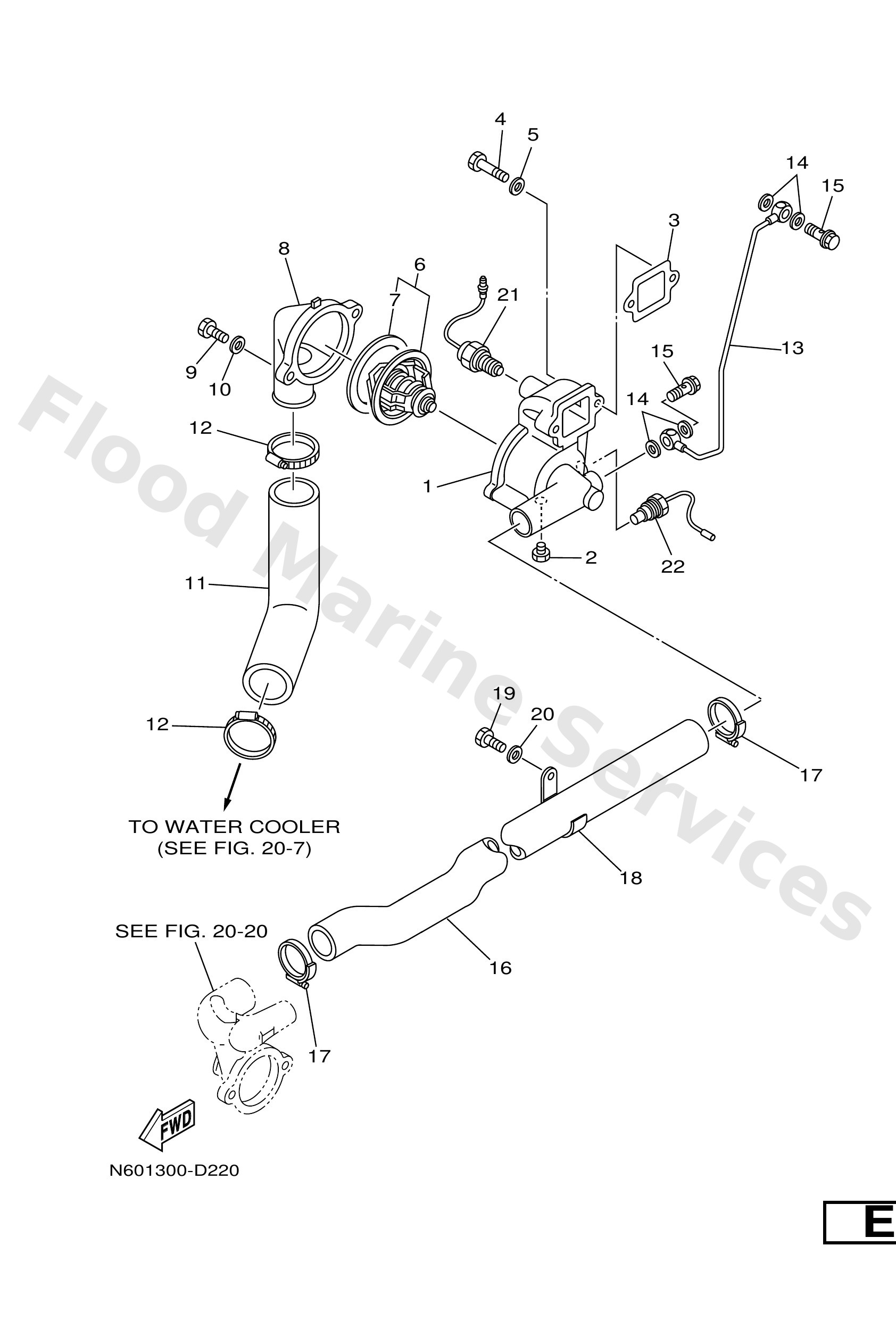

Diagram: WATER COOLING 2

Diagram

Parts List

Reference
Description
Price


1
6TA1241700
Housing, thermostat
Loading…

↗
2
9034551014
Plug(n01)
Loading…

↗
4
9702708035
Bolt
Loading…

↗
5
9290708600
Washer(6ta)
Loading…

↗
6
6TA1241100
Thermostat
Loading…

↗
8
3
-
Loading…

↗
9
9702708025
Bolt, hexagon
Loading…

↗
10
7
6Tc-41661-00
Loading…

↗
11
12
92990-10100
Loading…

↗
11
6TA1243A00
Hose,1
Loading…

↗
12
8
-
Loading…

↗
12
16
92907-08600
Loading…

↗
13
6TA1256600
Pipe, bypass
Loading…

↗
14
9043010233
Gasket
Loading…

↗
17
17
97027-10025
Loading…

↗
18
9046516M48
Clamp(6ta)
Loading…

↗
18
20
-
Loading…

↗
19
15
-
Loading…

↗
21
6TA8256000
Thermo switch assembly
Loading…

↗
22
6TA8359100 UR 1 STATION
Thermo unit
Loading…

↗
22
6TA8359110 UR 2 STATION
Thermo unit
Loading…

↗
