Yamaha Outboard Parts - WATER PUMP 1 - ME730TIM (2006) | Flood Marine

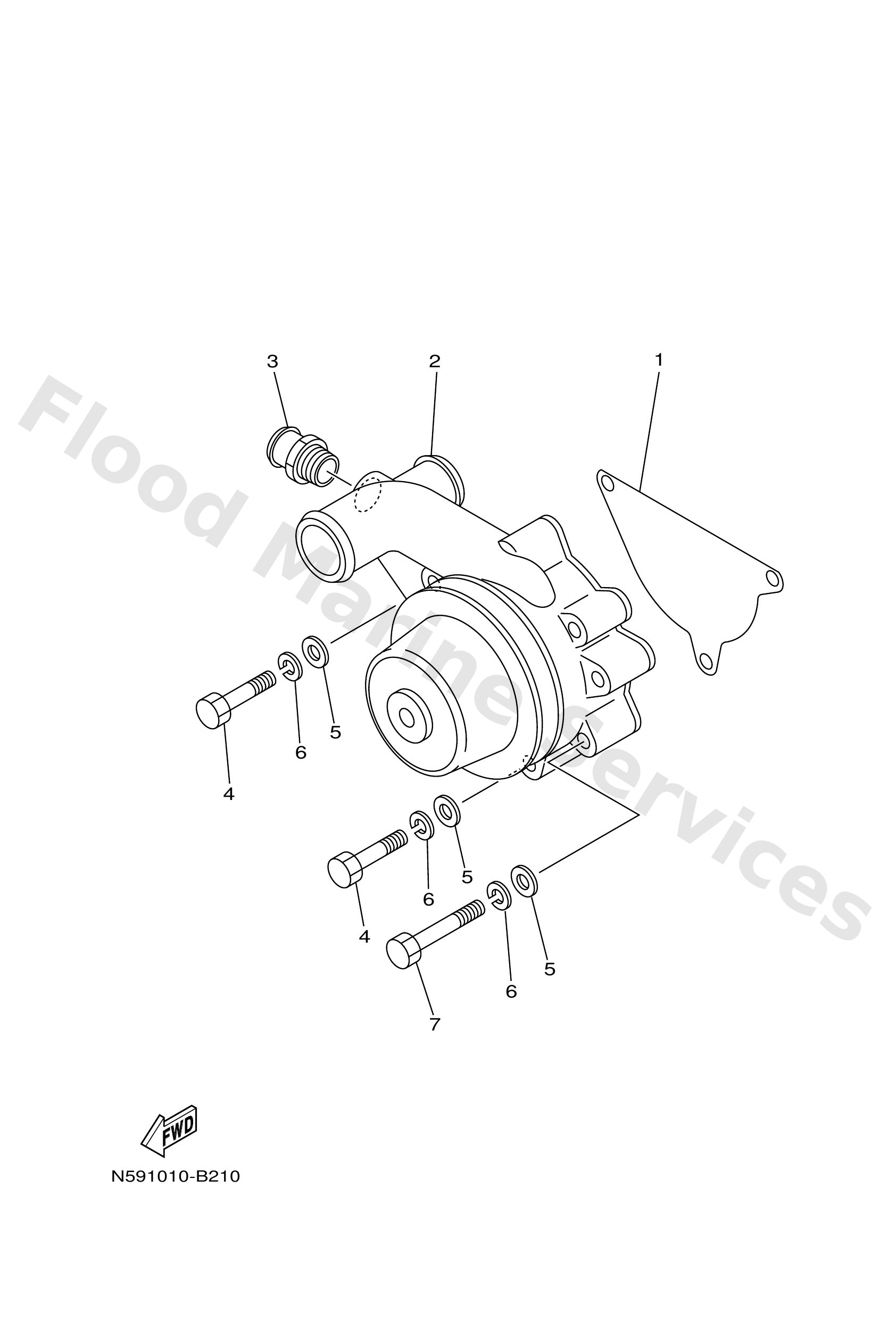

Diagram: WATER PUMP 1

Diagram

Parts List

Reference
Description
Price


1
N591244900
Gskt., Water Pump
Loading…

↗
2
N591242000
Water pump assembly
Loading…

↗
3
N591137200
Nipple, hose
Loading…

↗
3
2
N64-83510-00
Loading…

↗
4
N5923459Y0
Bolt M10X45
Loading…

↗
5
N5913177Y0
19- 4
Loading…

↗
7
N5924178Y0
Bolt M10X70
Loading…

↗
