Yamaha Outboard Parts - WATER PUMP 2 - ME730TIM (2006) | Flood Marine

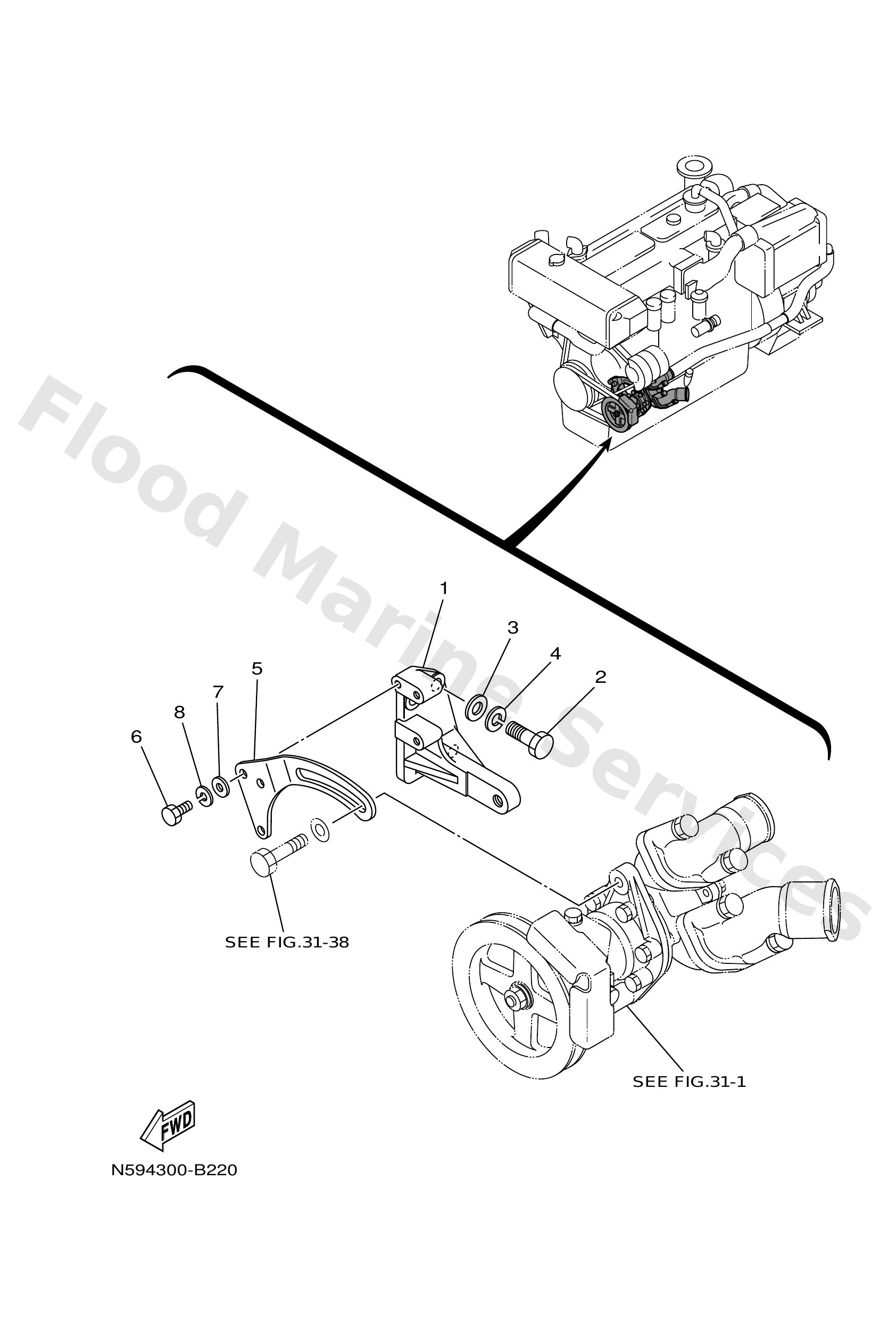

Diagram: WATER PUMP 2

Diagram

Parts List

Reference
Description
Price


1
N591242900
Bracket, water pump
Loading…

↗
2
N5912615Y0
Bolt M12X35
Loading…

↗
3
N5913318Y0
4- 32
Loading…

↗
4
N5914285Y0
Washer, Spring
Loading…

↗
5
N591863500
Stay, belt adjust
Loading…

↗
6
N5944331Y0
Bolt M8X20
Loading…

↗
7
N5912664Y0
Washer, Plain
Loading…

↗
8
N5914558Y0
Washer, Spring
Loading…

↗
