RIGGING - METER (2018)
WIRE HARNESS 2

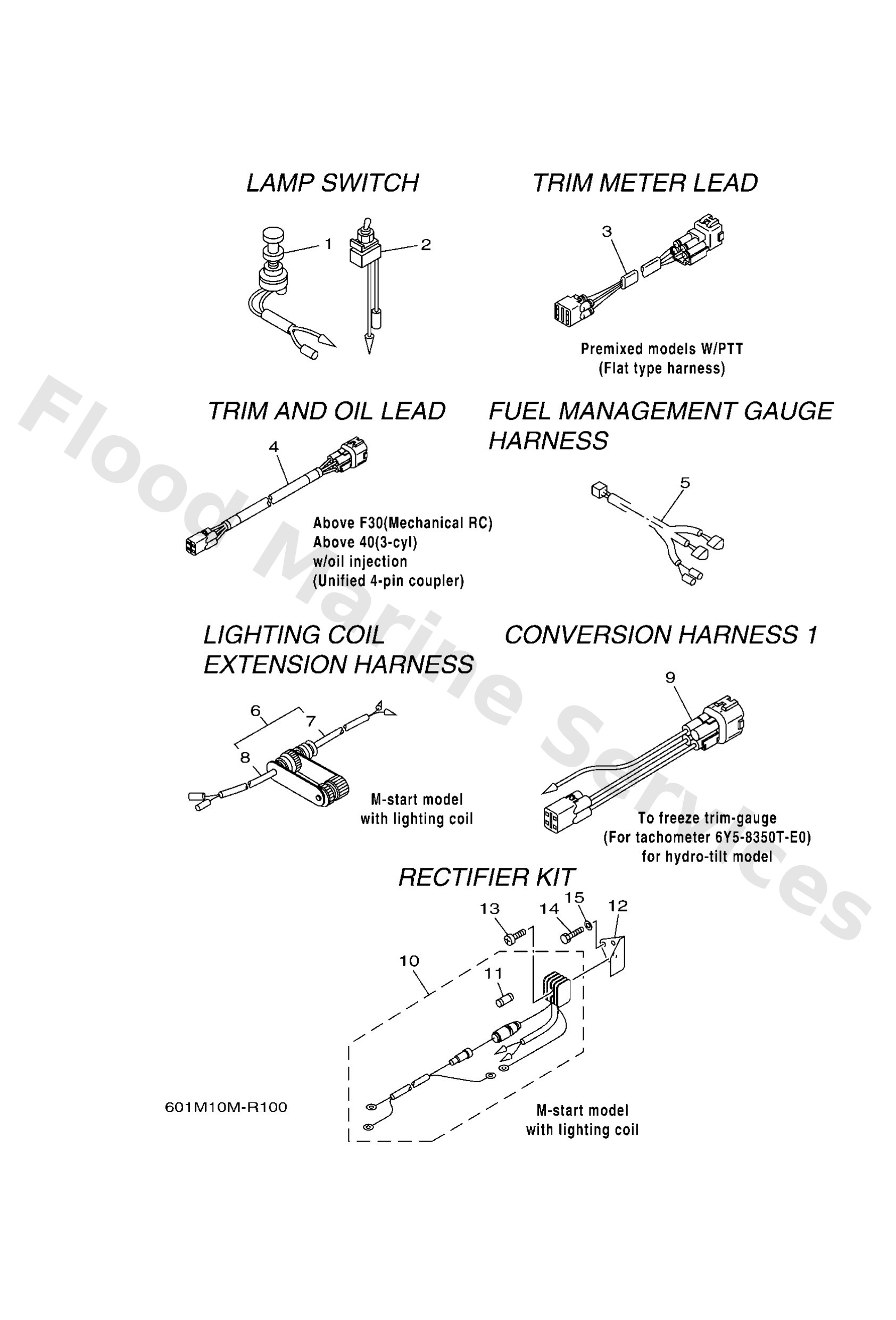

Diagram: WIRE HARNESS 2
Parts List
Reference
Description
Price
1
6888252000
Lamp switch assembly
Loading…
↗
2
6888252600
Switch, lamp
Loading…
↗
3
6R38255390
UR (4P)
Extension, wire lead (for trim
Loading…
↗
3
6R38255380
UR (4P)
Wire, lead
Loading…
↗
3
6R38255370
UR (4P)
Extension, wire lead (for trim
Loading…
↗
3
6R38255350
UR (4P)
Wire, lead
Loading…
↗
3
6R38255330
UR (4P)
Wire, lead
Loading…
↗
4
6Y58365350
UR 4P,10.5M
Trim oil harness
Loading…
↗
4
6Y58365340
UR 4P,9M
Wire, lead
Loading…
↗
4
6Y58365330
UR 4P,8M
Wire, lead
Loading…
↗
4
6Y58365320
UR 4P,7M
Wire, lead
Loading…
↗
4
6Y58365310
UR 4P,6M
Wire, lead
Loading…
↗
4
6Y58365300
UR 4P,5M
Wire, lead
Loading…
↗
5
6Y583553F1
Wire, lead
Loading…
↗
6
6828438000
2p concent assembly
Loading…
↗
7
6828438100
2p concent 1
Loading…
↗
8
6828438200
2p concent 2
Loading…
↗
9
6Y58350U10
Wire, Lead
Loading…
↗
10
6768197001
Rectifier assembly
Loading…
↗
11
6638215100
Fuse
Loading…
↗
12
*
LM
item_description
Loading…
↗
13
9788005025
Screw, panhead (a93)
Loading…
↗
14
9701306010
Bolt(63v)
Loading…
↗
15
9290306600
Washer, plain (646)
Loading…
↗
