Rigging - Remote Control (2024)
WIRE HARNESS 2

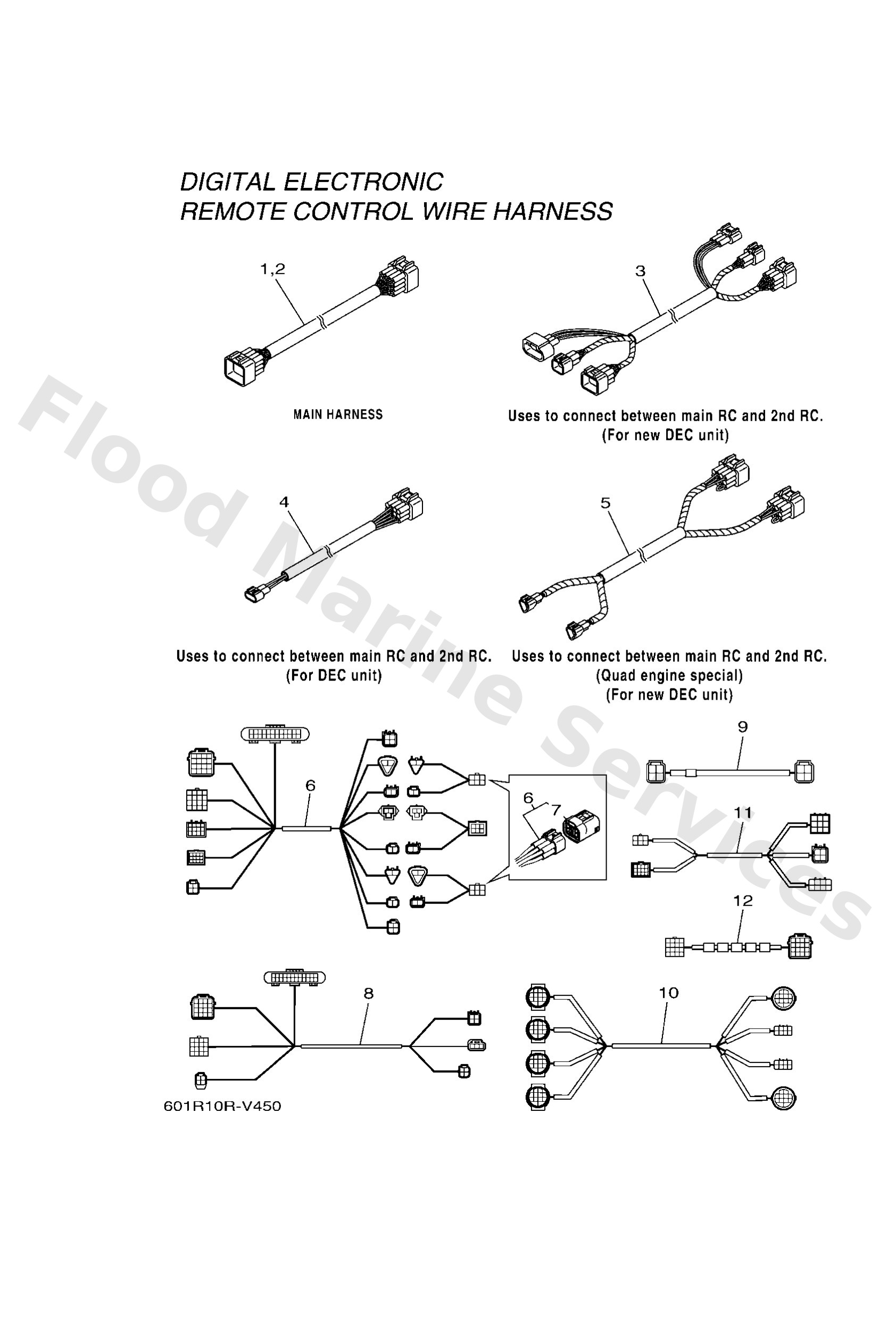

Diagram: WIRE HARNESS 2
Parts List
Reference
Description
Price
1
6X68258A01
UR FOR SINGLE
Extension, wire harness(6.1m)
Loading…
↗
1
6X68258A11
UR FOR SINGLE
16p dbw main harness 7m-23ft
Loading…
↗
1
6X68258A21
UR FOR SINGLE
16p dbw main harness 8m-26ft
Loading…
↗
1
6X68258A31
UR FOR SINGLE
16p dbw main harness 10m-32ft
Loading…
↗
1
6X68258A41
UR FOR SINGLE
16p dbw main harness 12m-38ft
Loading…
↗
2
6X68258A51
UR FOR SINGLE
Extension, wire harness (3.7m)
Loading…
↗
2
6X68258A61
UR FOR SINGLE
Extension, wire harness (5.2m)
Loading…
↗
2
6X68258A71
UR FOR SINGLE
16p dbw main harness 15m-49ft
Loading…
↗
2
6X68258A81
UR FOR SINGLE
16p dbw main harness 24m-79ft
Loading…
↗
3
6X68258AG1
UR FOR SINGLE
Extension, wire harness (5m)
Loading…
↗
3
6X68258AH1
UR FOR SINGLE
Extension, wire harness (8m)
Loading…
↗
3
6X68258AJ1
UR FOR SINGLE
Extension, wire harness (12.2m
Loading…
↗
4
6X68258AB1
UR FOR SINGLE
#xtension, wire harness
Loading…
↗
4
6X68258AD1
UR FOR SINGLE
Extension, wire harness
Loading…
↗
4
6X68258AF1
UR FOR SINGLE
Extension, wire harness
Loading…
↗
5
6X68258AR0
UR FOR QUAD
Extension, wire harness (5m)
Loading…
↗
5
6X68258AS0
UR FOR QUAD
Extension, wire harness (8m)
Loading…
↗
5
6X68258AT0
UR FOR QUAD
Extension, wire harness: 12.2m
Loading…
↗
6
6X98258A01
UR
Extension, wire harness
Loading…
↗
6
6X98258A11
UR
2Nd St Harness (P) 8M-26Ft
Loading…
↗
6
6X98258A21
UR
2Nd St Harness (P) 12M-38Ft
Loading…
↗
7
6Y88537101
End of line resister
Loading…
↗
8
6X98258A31
UR EXCEPT SINGLE ENGINE
2nd st harness (s) 5m-16ft
Loading…
↗
8
6X98258A41
UR EXCEPT SINGLE ENGINE
2nd st harness (s) 8m-26ft
Loading…
↗
8
6X98258A51
UR EXCEPT SINGLE ENGINE
2nd st harness (s) 12m-38ft
Loading…
↗
9
6X98258A60
UR FOR TRIPLE,QUAD ENGINE
2nd st harness (c) 5m-16ft
Loading…
↗
9
6X98258A70
UR FOR TRIPLE,QUAD ENGINE
2nd st harness (c) 8m-26ft
Loading…
↗
9
6X98258A80
UR FOR TRIPLE,QUAD ENGINE
2nd st harness (c) 12m-38ft
Loading…
↗
10
6X98355360
FOR TRIPLE,QUAD ENGINE
Wire, lead
Loading…
↗
11
6X98355340
FOR TRIPLE,QUAD ENGINE
Wire, lead
Loading…
↗
12
6GR8258AV0
Ext harness 6x6/6x9 2nd st xto
Loading…
↗
