Yamaha Outboard Parts - WIRE HARNESS 3 - RIGGING - METER (2021) | Flood Marine

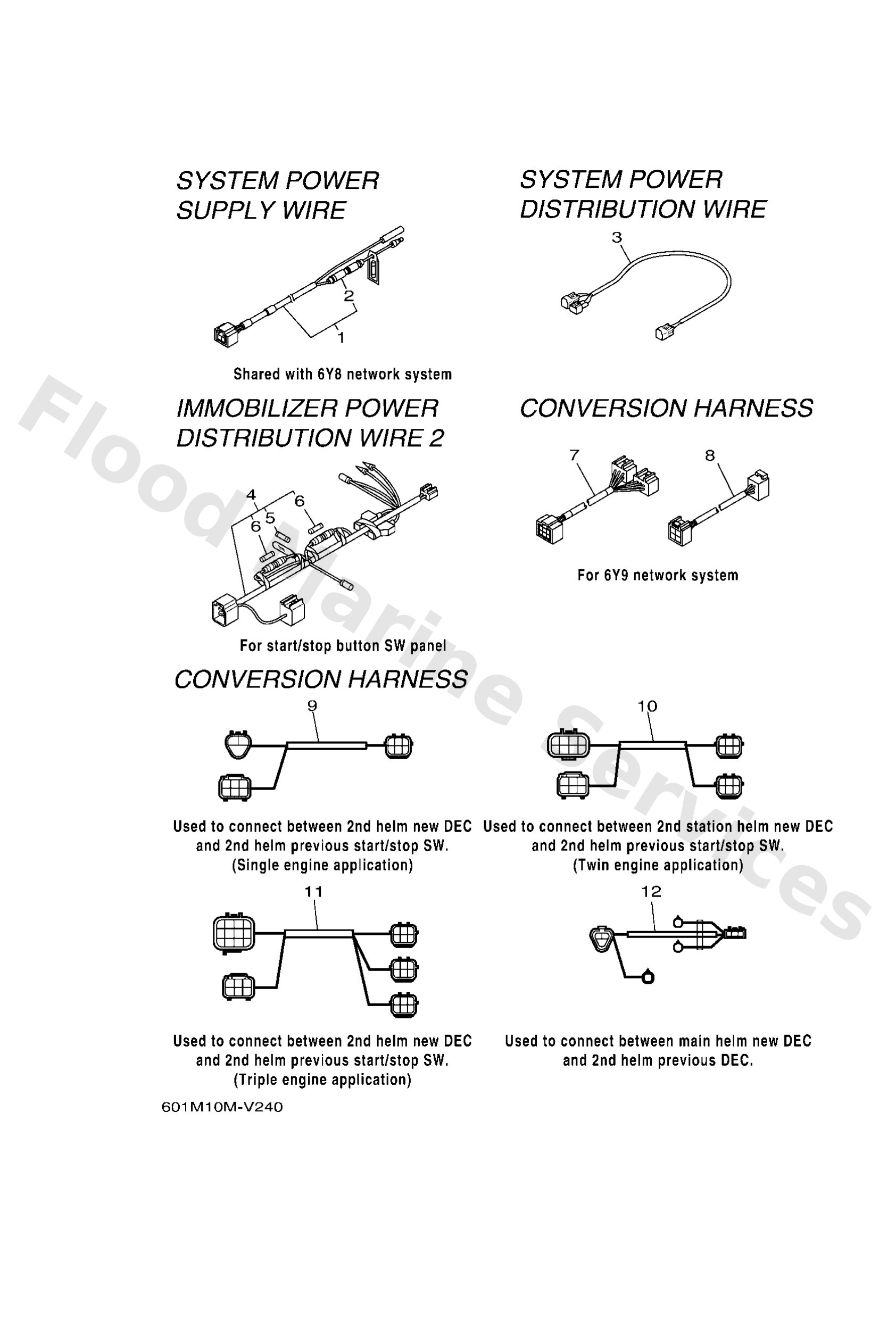

Diagram: WIRE HARNESS 3

Diagram

Parts List

Reference
Description
Price


1
6Y88355302
8ft power wire
Loading…

↗
2
6G18215101
Fuse (10a)
Loading…

↗
3
6Y98355320
Wire, lead
Loading…

↗
4
6Y88131503
Lead wire assembly
Loading…

↗
5
6TA8215101
Fuse
Loading…

↗
6
6Y88215100
Fuse(5a)
Loading…

↗
7
6Y98355310
Main bus y-split harness
Loading…

↗
8
6Y98355360
Wire, lead
Loading…

↗
9
6X68258AM0
Extension, wire harness
Loading…

↗
10
6X68258AN0
Extension, wire harness
Loading…

↗
11
6X68258AP0
Extension, wire harness
Loading…

↗
12
6X68258AK0
Extension, wire harness
Loading…

↗
