Diagram Sections: F300CET (2018)
Download as PDF-
BOTTOM COWLING 1
-
BOTTOM COWLING 2
-
BOTTOM COWLING 3
-
BRACKET 1
-

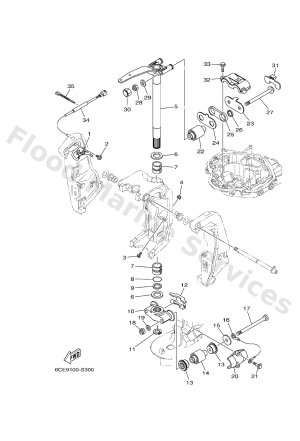

BRACKET 2
-
CONTROL
-

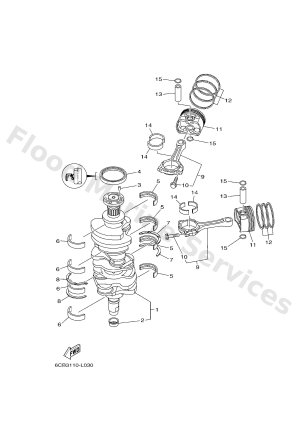

CRANKSHAFT & PISTON
-

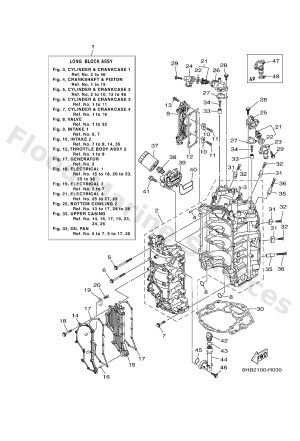

CYLINDER & CRANKCASE 1
-
CYLINDER & CRANKCASE 2
-
CYLINDER & CRANKCASE 3
-
CYLINDER & CRANKCASE 4
-

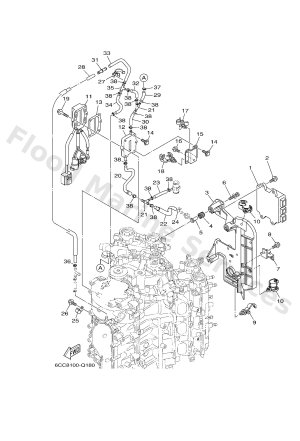

ELECTRICAL 1
-
ELECTRICAL 2
-
ELECTRICAL 3
-

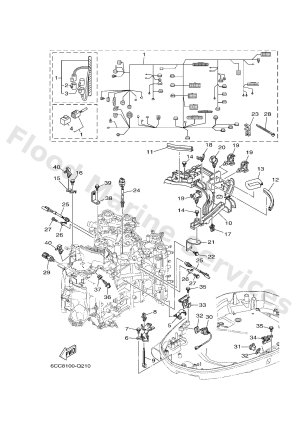

ELECTRICAL 4
-
ELECTRICAL 5
-
FUEL 1
-
FUEL 2
-
FUEL INJECTION PUMP 1
-
FUEL INJECTION PUMP 2
-

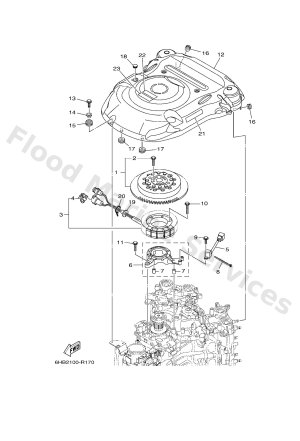

GENERATOR
-

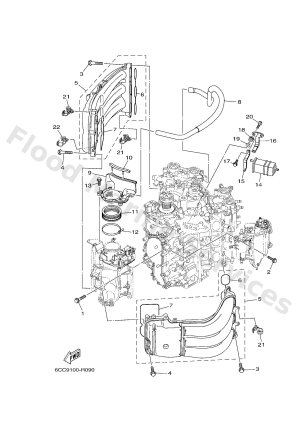

INTAKE 1
-
INTAKE 2
-
LOWER CASING & DRIVE 1
-

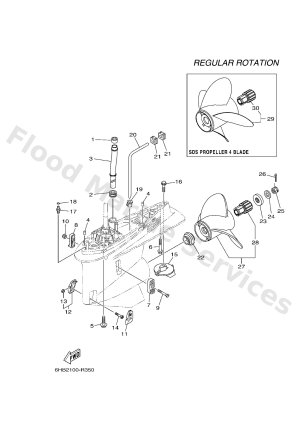

LOWER CASING & DRIVE 2
-

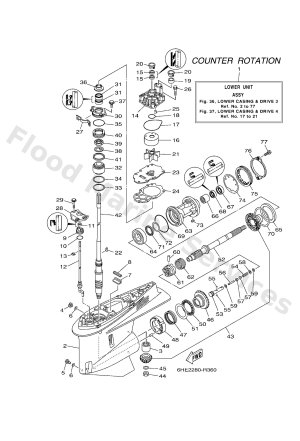

LOWER CASING & DRIVE 3
-
LOWER CASING & DRIVE 4
-
OIL PAN
-
OPTIONAL PARTS 1
-
OPTIONAL PARTS 2
-

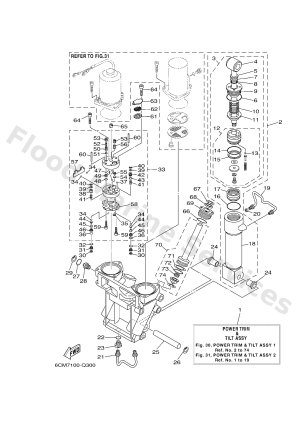

POWER TRIM & TILT ASSY 1
-
POWER TRIM & TILT ASSY 2
-
REPAIR KIT 1
-
REPAIR KIT 2
-
SCHEDULED SERVICE PARTS
-
STARTING MOTOR
-
STEERING GUIDE ATTACHMENT 1
-
STEERING GUIDE ATTACHMENT 2
-
THROTTLE BODY ASSY 1
-
THROTTLE BODY ASSY 2
-
TOP COWLING
-
UPPER CASING
-
VALVE
