Tiller Handle (2005)
BASE HANDLE - ALL

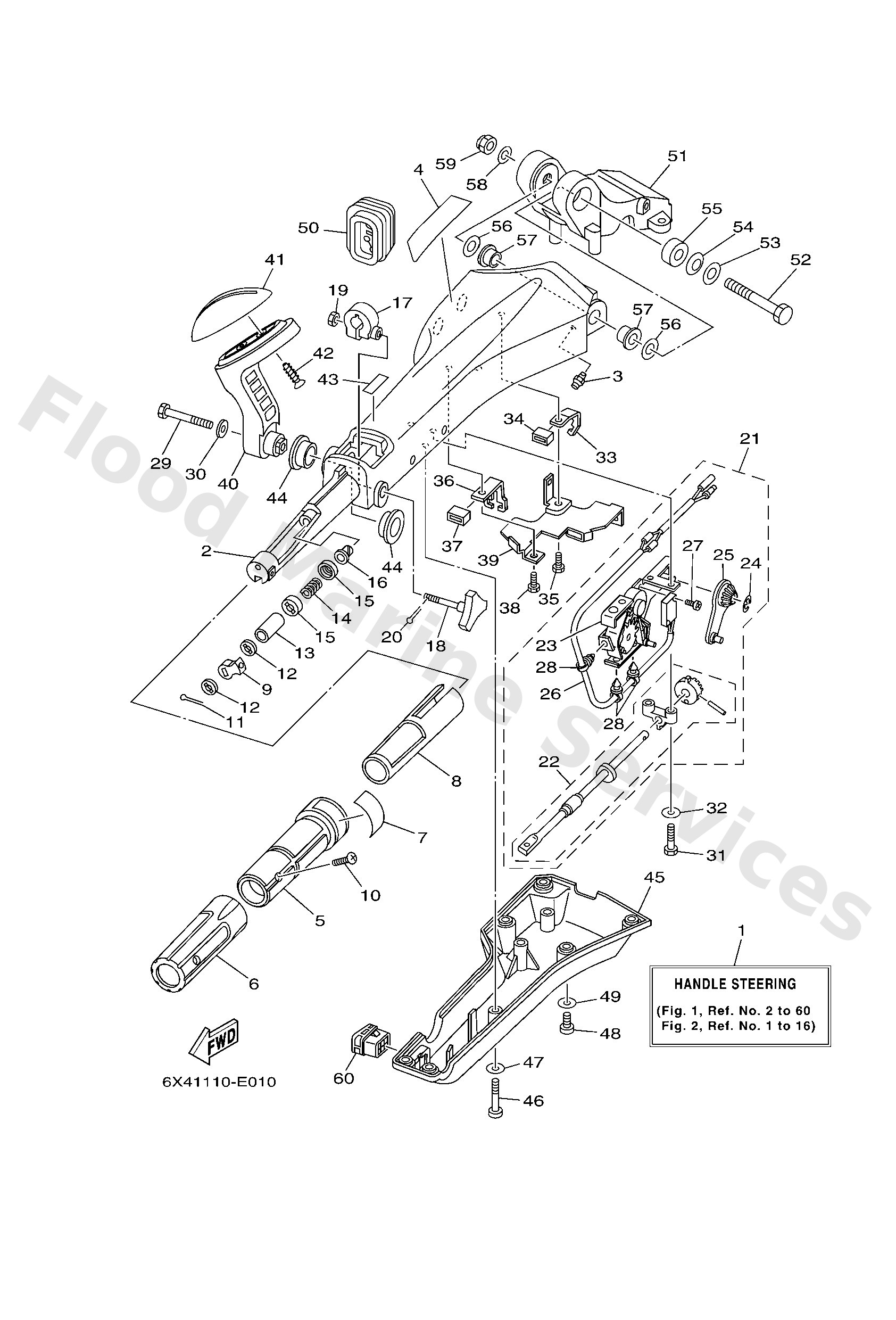

Diagram: BASE HANDLE - ALL
Parts List
Reference
Description
Price
1
6X44210100
LM
Handle main body (led/ycop)
Loading…
↗
2
6X442111004D
Handle, steering kit
Loading…
↗
3
9370006M03
Nipple, grease(6a1)
Loading…
↗
4
6X44821500
Graphic
Loading…
↗
5
6X44211900
Grip, steering handle
Loading…
↗
6
6X44217700
Rubber, handle
Loading…
↗
7
6X44213700
Indicator, throttle
Loading…
↗
8
6X44129100
Bushing
Loading…
↗
9
6X44413900
Collar
Loading…
↗
10
9014205001
Screw, countersunk
Loading…
↗
11
9149020010
Pin, cotter
Loading…
↗
12
6X44417700
Washer
Loading…
↗
13
6X44212800
Collar, distance 1
Loading…
↗
14
9050123215
Spring (655)
Loading…
↗
15
6X44418800
Washer
Loading…
↗
16
9038608032
Bushing (650)
Loading…
↗
17
63D4212600
Friction, steering handle grip
Loading…
↗
18
6X44815400
Knob, throttle
Loading…
↗
19
9538006600
Nut(661)
Loading…
↗
21
6X44410000
Shift link assembly
Loading…
↗
22
6X44211500
Shaft, steering handle
Loading…
↗
23
6X44410200
Shift assist assembly.
Loading…
↗
24
6X41413700
Clip
Loading…
↗
25
69W4826100
Arm, Throttle
Loading…
↗
26
6X48254000
Neutral switch assembly
Loading…
↗
27
6A54812910
Screw, pan head (n151)
Loading…
↗
28
6X44282100
Band, clamp
Loading…
↗
29
9709508040
Bolt, hexagon
Loading…
↗
30
9299508600
Washer, plain (663)
Loading…
↗
31
9709506030
Bolt(jf7)
Loading…
↗
32
9299506600
Washer, plain (646)
Loading…
↗
33
6X44853800
Clamp, cable 1
Loading…
↗
34
6X42636700
Protector
Loading…
↗
35
9709506014
Bolt(gj3)
Loading…
↗
36
6X44853810
Clamp, cable 1
Loading…
↗
39
6X44215900
Stay
Loading…
↗
40
6X444159004D
Handle, gear shift
Loading…
↗
41
6X44417300
Lever, shift control
Loading…
↗
42
9778060920
Screw, tapping
Loading…
↗
43
6G84419100
Indicator, shift
Loading…
↗
44
9038626MA3
Bush
Loading…
↗
45
6X44213100
-
Loading…
↗
46
9788506040
Screw pan head
Loading…
↗
48
9788506016
Screw, pan head(6b0)
Loading…
↗
50
6X44272500
Grommet
Loading…
↗
51
63D42121224D
Bracket
Loading…
↗
52
9010112014
Bolt
Loading…
↗
53
9299012200
Ybs66-12 washer,plain
Loading…
↗
54
9020612M22
Washer, wave(6b0)
Loading…
↗
55
9038712M02
Collar(6b0)
Loading…
↗
56
9020112035
Washer, plate
Loading…
↗
57
9038612003
Bush
Loading…
↗
58
9299012600
Washer, plate(663)
Loading…
↗
59
9018512M12
Nut, self-locking(6e5)
Loading…
↗
60
6X44272810
Cap
Loading…
↗
