Yamaha Outboard Parts - BASE HANDLE ELECTRICAL - Tiller Handle (2005) | Flood Marine

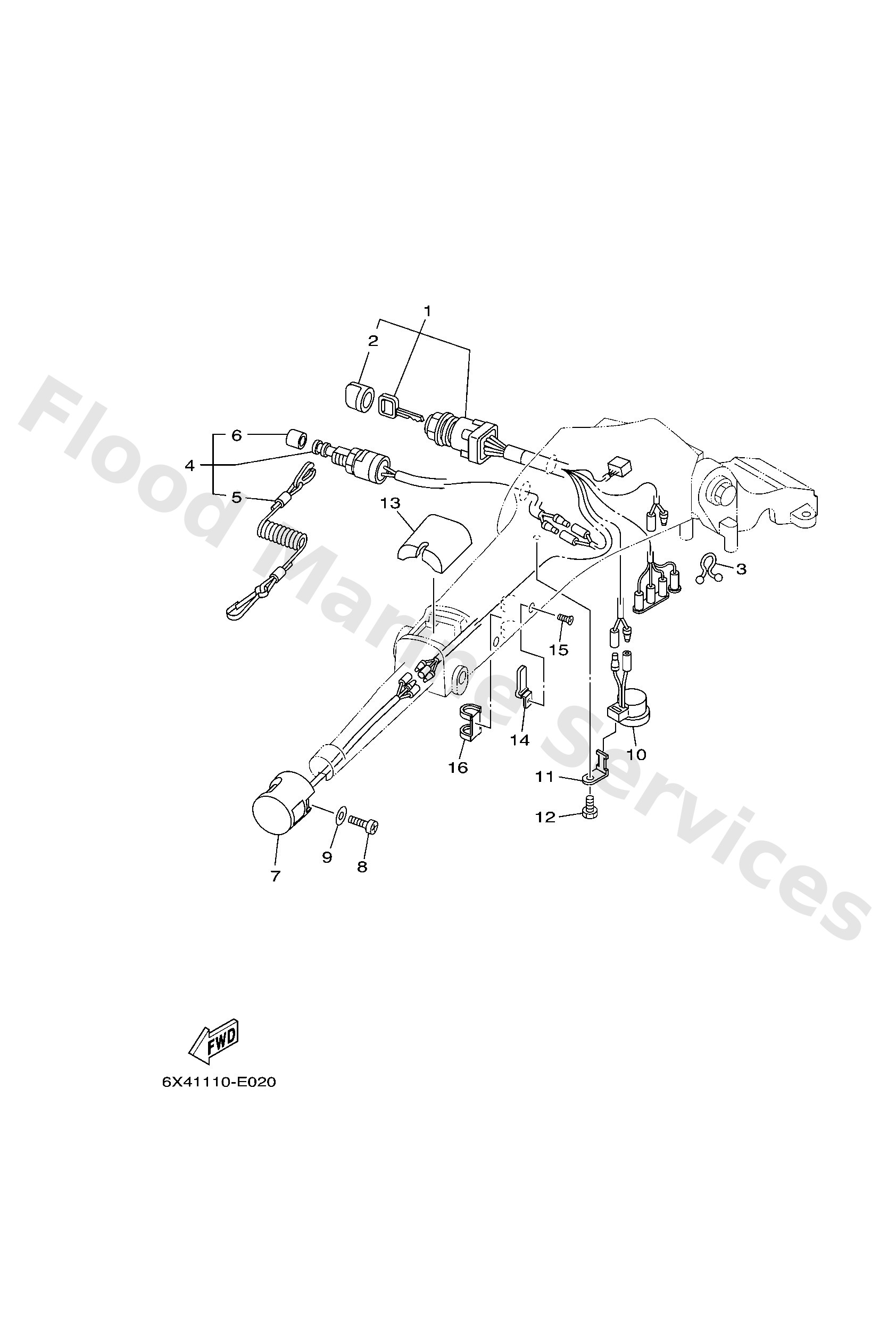

Diagram: BASE HANDLE ELECTRICAL

Diagram

Parts List

Reference
Description
Price


1
6X48251000
Main switch assembly
Loading…

↗
2
6768257700
Cap, key
Loading…

↗
3
9046408M07
Clamp
Loading…

↗
4
69W8257500
Engine stop switch assembly
Loading…

↗
5
6828255600
Lanyard, stop switch
Loading…

↗
6
6898257Y00
Cap
Loading…

↗
7
6X48256300
Trim & tilt switch assembly
Loading…

↗
8
9788006016
Screw pan head
Loading…

↗
9
9299006600
Washer, plain (646)
Loading…

↗
10
6X48338300
Buzzer
Loading…

↗
11
6X48338600
Stay, buzzer
Loading…

↗
12
9709506014
Bolt(gj3)
Loading…

↗
13
6X48194200
Cover
Loading…

↗
14
6X44455400
Plate
Loading…

↗
15
9015204015
Screw, flat head
Loading…

↗
16
6X44272400
Grommet
Loading…

↗
