150AET (2002)
BOTTOM COWLING

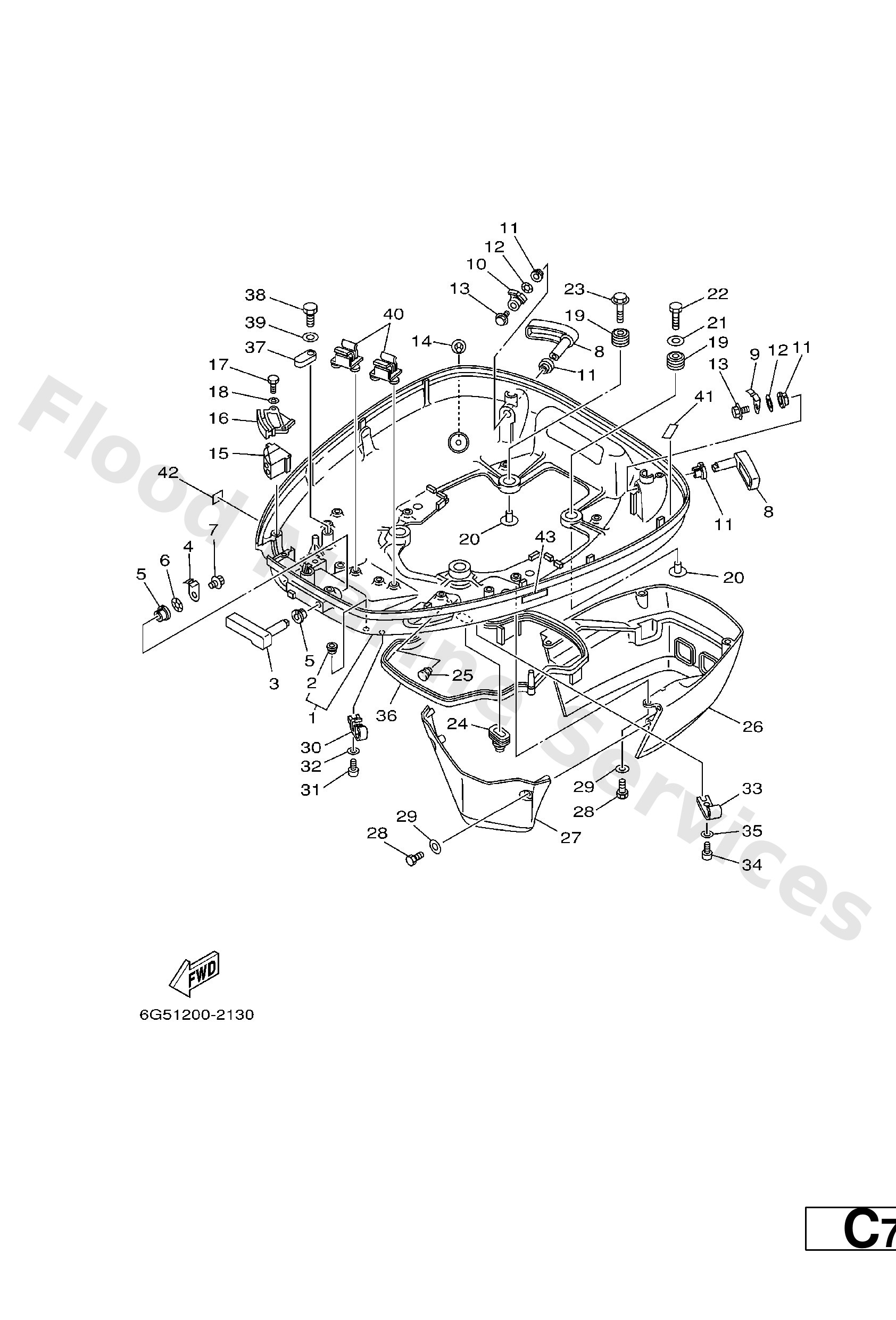

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
2
6H44274800
Grommet
Loading…
↗
4
6884281600
Lever, clamp 2
Loading…
↗
5
9038613M38
Bushing (697)
Loading…
↗
6
9020613M10
Washer, wave (6e5)
Loading…
↗
7
9011906M09
Bolt, with washer
Loading…
↗
9
6G54281600
Lever, clamp 2
Loading…
↗
10
6E54281601
Lever, clamp 2
Loading…
↗
14
6E54439100
Nipple, hose
Loading…
↗
15
6E54272500
Grommet
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
9048022M15
Grommet (6e5)
Loading…
↗
20
9038708M37
Coller (6e5)
Loading…
↗
21
9020108M54
Washer, plate (6e5)
Loading…
↗
22
9707508035
Bolt(70w)
Loading…
↗
23
9011908M22
Bolt, with washer
Loading…
↗
24
6884272610
Grommet
Loading…
↗
25
9048010M36
Grommet (6e5)
Loading…
↗
28
9709506020
Bolt(7u8)
Loading…
↗
30
6E52436701
Clamp, fuel pipe 2
Loading…
↗
31
9015706M01
Screw (6e5)
Loading…
↗
32
9299006600
Washer, plain (646)
Loading…
↗
33
6E52436710
Clamp, fuel pipe 2
Loading…
↗
36
6E54271600
Rubber, Seal 1
Loading…
↗
37
6E58258800
Plate
Loading…
↗
40
6E58259400
Clamp
Loading…
↗
41
6G54279110
Mark 1
Loading…
↗
42
6A12817600
-
Loading…
↗
43
6E38257H00
Plate, Mark
Loading…
↗
