Z250DETO (2006)
BRACKET 1

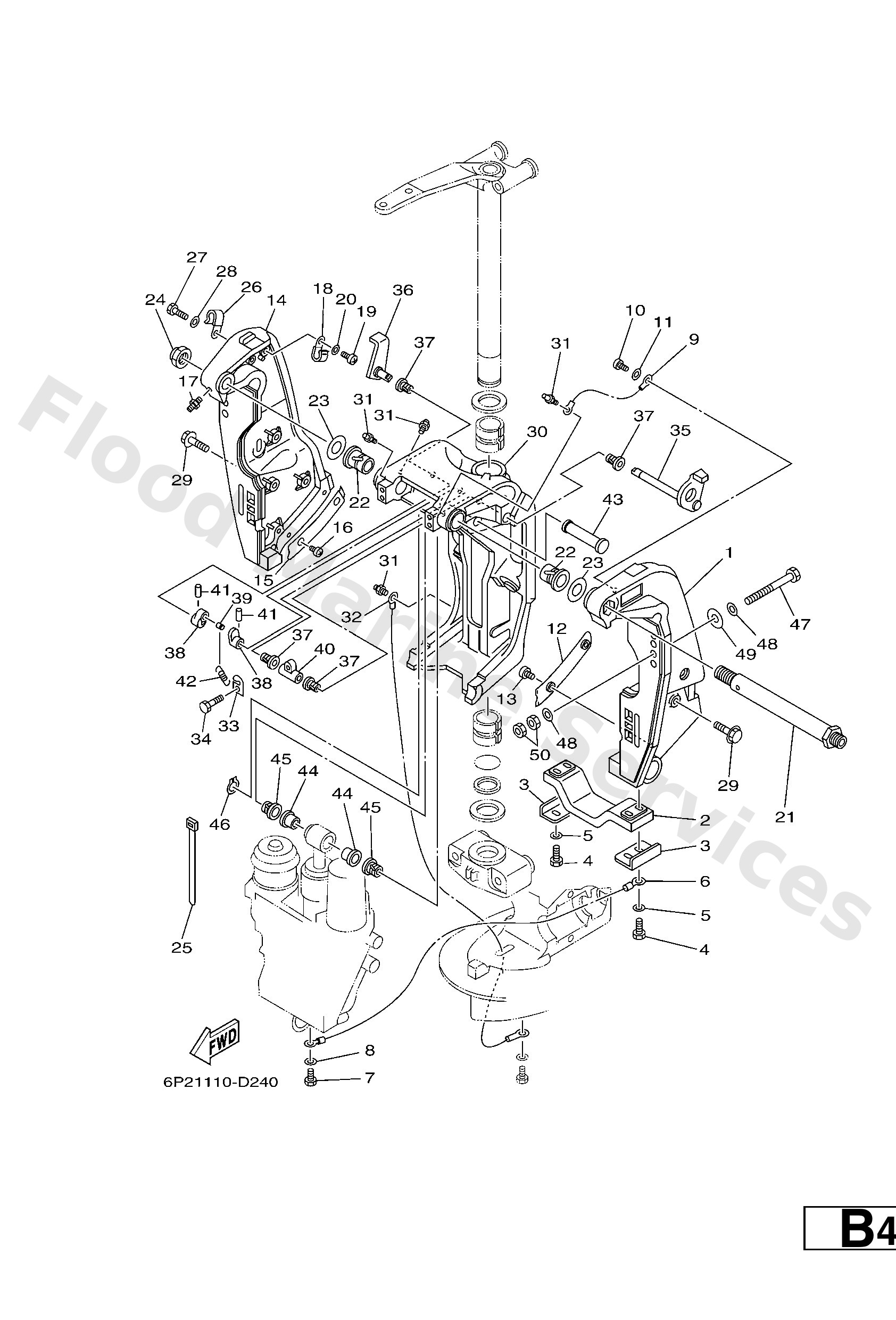

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
69J43111018D
Bracket, clamp 1
Loading…
↗
2
6G54525102
Anode
Loading…
↗
3
6G54452600
Plate
Loading…
↗
4
9709506025
Bolt
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
6H18214800
Wire, lead
Loading…
↗
7
9709506010
Bolt
Loading…
↗
9
6E58214800
Wire, lead 5
Loading…
↗
10
9788506012
Screw, pan head(62j)
Loading…
↗
12
61A4313200
Washer, friction
Loading…
↗
13
9788506010
Screw pan head
Loading…
↗
14
69J43112018D
Bracket, clamp 2
Loading…
↗
15
61A4313300
Washer,friction
Loading…
↗
17
9370006M03
Nipple, grease(6a1)
Loading…
↗
18
9046508M83
Clamp
Loading…
↗
21
6R34313100
Bolt, clamp bracket
Loading…
↗
22
9038625M31
Bushing (6e5)
Loading…
↗
23
9020126M59
Washer, plate (6e5)
Loading…
↗
24
9018522M11
Nut, self-locking
Loading…
↗
25
9046511M10
Clamp
Loading…
↗
27
9709506014
Bolt(gj3)
Loading…
↗
29
9011910024
Bolt, with washer
Loading…
↗
30
61A43311218D
X (25.1")
Bracket, swivel 1
Loading…
↗
32
61A8214720
X (25.1")
Wire, lead 5
Loading…
↗
33
6G54314400
Hook, spring
Loading…
↗
35
61A4318101
Lever, tilt stop 1
Loading…
↗
36
6G54318502
Lever, tilt stop 2
Loading…
↗
37
9038610M16
Bushing (688)
Loading…
↗
38
6G54314800
Collar, distance
Loading…
↗
39
9024906M19
Pin(6e5)
Loading…
↗
40
9038710M02
Collar(6e5)
Loading…
↗
41
9169030020
Pin, spring (6h4)
Loading…
↗
42
9050616003
Spring, tension
Loading…
↗
43
6E54312602
Pin, upper shock mount
Loading…
↗
44
9038618M63
Bush(6e5)
Loading…
↗
45
9038618M14
Bushing (6e5)
Loading…
↗
46
9341018M02
Circlip (6f2)
Loading…
↗
47
9010112M05
Bolt (l:130mm)
Loading…
↗
48
9020113M01
Washer, plate(6e5)
Loading…
↗
49
9020112M05
Washe, plate(663)
Loading…
↗
50
9538012600
Nut (707)
Loading…
↗
