Yamaha Outboard Parts - BRACKET 2 - F8FMH (2018) | Flood Marine
New Search
Parts
New Outboards
Home
F8FMH (2018)
BRACKET 2

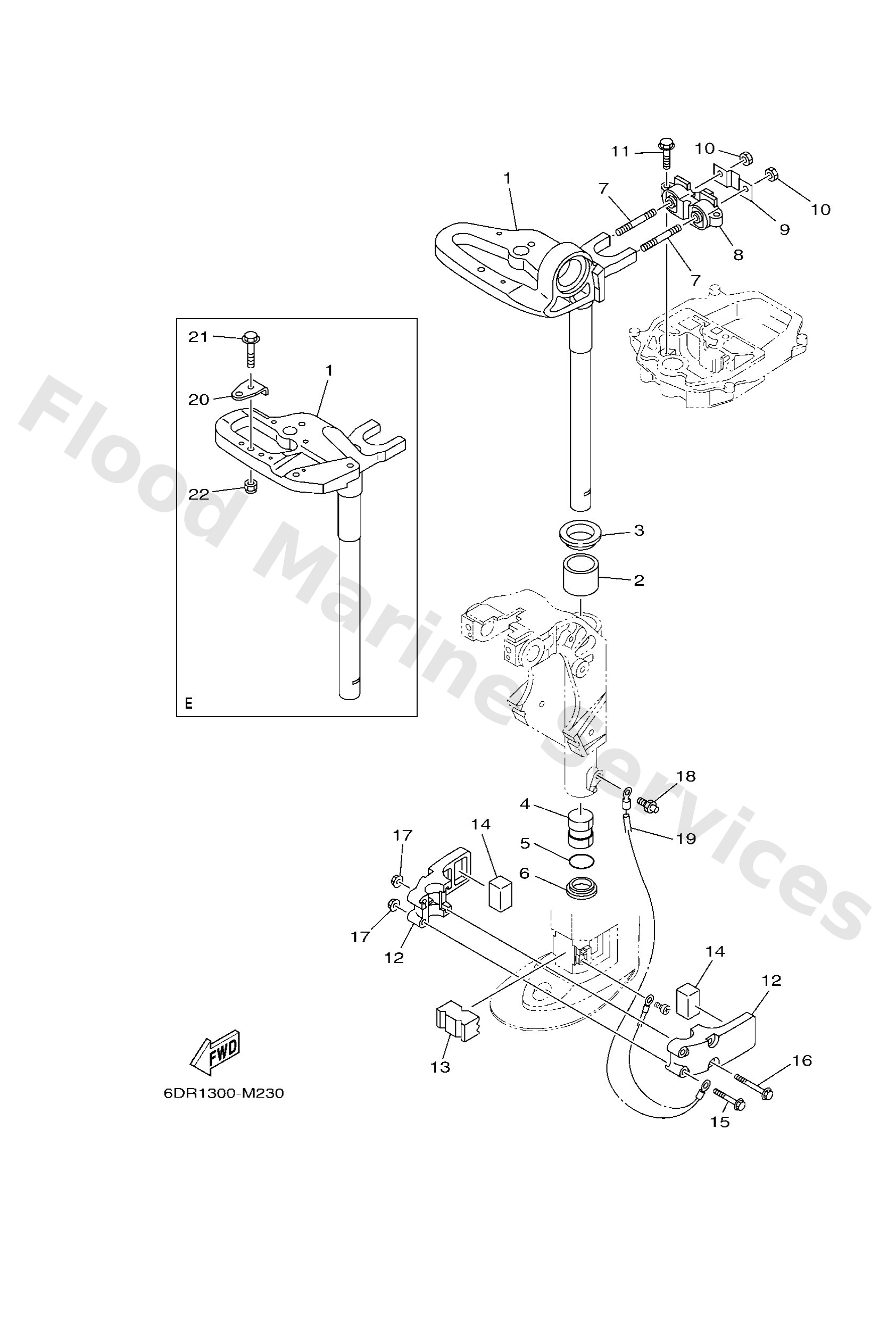

Diagram: BRACKET 2
Parts List
Reference
Description
Price
1
6DR42511108D
L(22.0")
Bracket, steering
Loading…
↗
1
6AU42511108D
L(22.0")
Bracket, steering
Loading…
↗
1
6DR42511008D
S(17.0")
Bracket, steering
Loading…
↗
2
9038640001
Bush
Loading…
↗
3
9020940008
Washer
Loading…
↗
4
9038630048
Bush
Loading…
↗
5
9321029M94
O-ring(6h1)
Loading…
↗
6
9038630M60
Bush(6j8)
Loading…
↗
7
9011608M54
Bolt, stud(63v)
Loading…
↗
8
68T4451700
Mount rubber
Loading…
↗
9
68T4452600
Plate
Loading…
↗
10
9538008600
Nut (661)
Loading…
↗
11
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
12
6AU44551008D
Housing, lower mount rubber 1
Loading…
↗
13
6AU4455700
Mount damper, lower front
Loading…
↗
14
6824455530
Mount damper, lower side
Loading…
↗
15
9011906012
Bolt, with washer
Loading…
↗
16
9011906198
Bolt, with washer
Loading…
↗
17
9017906M28
Nut(63v)
Loading…
↗
18
9370006M03
Nipple, grease(6a1)
Loading…
↗
19
68T8212700
Wire, lead 2
Loading…
↗
20
63V4851101
Hook, steering
Loading…
↗
21
9757508535
Bolt(70w)
Loading…
↗
22
9018508057
Nut, nylon (6j8)
Loading…
↗
