F20GMH (2021)
BRACKET 3

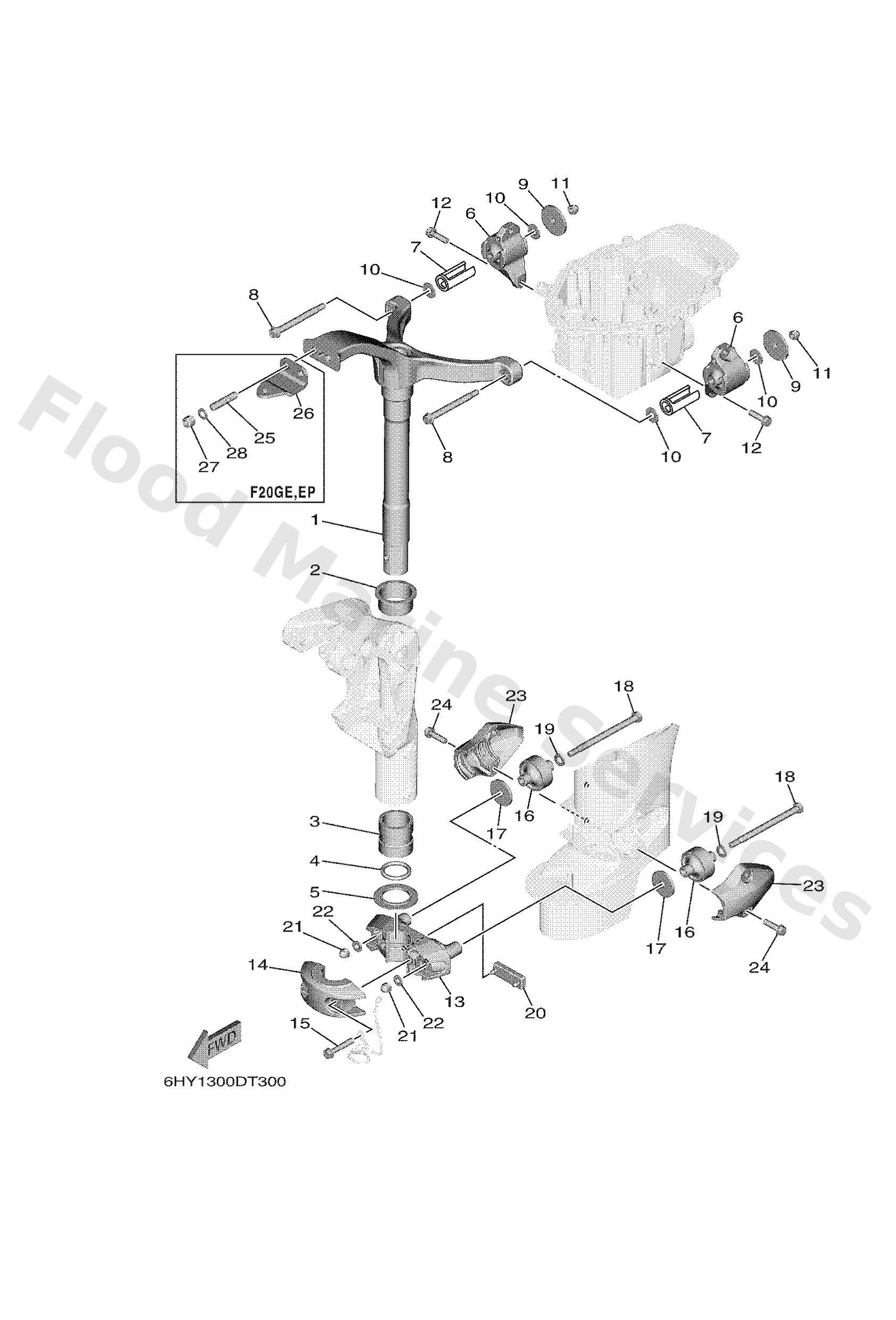

Diagram: BRACKET 3
Parts List
Reference
Description
Price
1
6FM42511108D
L(21.7")
Bracket, steering
Loading…
↗
1
6FM42511008D
S(16.7")
Bracket, steering
Loading…
↗
2
9038145001
Bush, solid
Loading…
↗
3
9038638M32
Bush(6e5)
Loading…
↗
4
9321037MH7
O-ring(61u)
Loading…
↗
5
9038638002
Bush
Loading…
↗
6
6FM44514108D
Mount damper, upper side
Loading…
↗
7
6FM4453200
Stopper, upper mount
Loading…
↗
8
9010908241
Bolt
Loading…
↗
9
9020108120
Washer, plate
Loading…
↗
10
9020109014
Washer, plate
Loading…
↗
11
9538008800
Nut crown (2g2)
Loading…
↗
12
97E7508530
Bolt, hexagon w/w deep recess
Loading…
↗
13
6FM44551008D
Housing, lower mount rubber 1
Loading…
↗
14
6FM44552008D
Housing, lower mount rubber 2
Loading…
↗
15
97E7508545
Bolt, hexagon w/w deep recess
Loading…
↗
16
6FM4455511
Mount damper, lower side
Loading…
↗
17
9020110077
Washer, plate
Loading…
↗
18
9010108M02
Bolt, hexagon (676)
Loading…
↗
19
9299510600
Washer, plate
Loading…
↗
20
6E54457501
L(21.7")
Damper, lower mount rubber
Loading…
↗
20
6FM4457501
S(16.7")
Damper, lower mount rubber
Loading…
↗
22
9020108M08
Washer, plate (679)
Loading…
↗
23
6FM44553008D
Cover, lower mount
Loading…
↗
25
9011610064
Bolt, stud
Loading…
↗
26
65W4851101
Hook, steering
Loading…
↗
27
9018510027
Nut, self-locking
Loading…
↗
28
9020110049
Washer, plate
Loading…
↗
