F115AET (2000)
Bottom Cowling

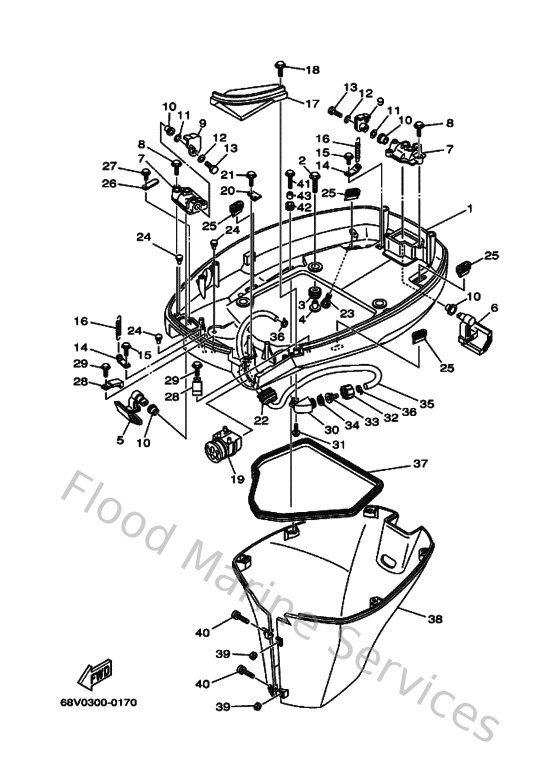

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
68V42711008D
Bottom cowling assembly
Loading…
↗
2
9011908M2200
Bolt, with washer
Loading…
↗
3
9048022M1500
Grommet (6e5)
Loading…
↗
4
9038708M3700
Coller (6e5)
Loading…
↗
5
67F42815008D
Lever, clamp
Loading…
↗
6
67F42816008D
Lever, clamp
Loading…
↗
7
67F42828009S
Plate, clamp
Loading…
↗
8
9010906M8200
Bolt
Loading…
↗
9
68V428180000
Lever, clamp
Loading…
↗
10
9038615M7300
Bush(6l2)
Loading…
↗
11
9020615M1800
Washer, wave(6l2)
Loading…
↗
12
9020106M0200
Washer,plate (6k8)
Loading…
↗
13
970950601600
Bolt, hexagon deep recess
Loading…
↗
14
64D431440000
Hook, spring
Loading…
↗
15
9010906M8000
Bolt
Loading…
↗
16
9050616M3400
Spring, tension(64d)
Loading…
↗
17
68V42738008D
Plate, fitting
Loading…
↗
19
68V427251000
Grommet
Loading…
↗
20
67F427560000
Stay, clamp
Loading…
↗
21
9010906M8600
Bolt
Loading…
↗
22
6H1427262100
Grommet
Loading…
↗
23
6H3443910100
Nipple, hose
Loading…
↗
24
6H4427480000
Grommet
Loading…
↗
25
67F427170000
Rubber, seal 2
Loading…
↗
26
6E5825880000
Plate
Loading…
↗
27
9010906M8100
Bolt
Loading…
↗
28
9046508M2300
Clamp (6h3)
Loading…
↗
30
67F125720000
Adapter
Loading…
↗
32
6R3125810000
Joint, hose 1
Loading…
↗
33
6R3125820000
Joint, hose 2
Loading…
↗
34
6R3125830000
Gasket, hose joint
Loading…
↗
35
68V243120000
Pipe 2
Loading…
↗
36
9046511M1000
Clamp
Loading…
↗
37
61A427160000
Rubber seal 1
Loading…
↗
38
67F42741018D
Apron
Loading…
↗
39
953800660000
Nut(661)
Loading…
↗
40
9015906M2800
Screw, with washer
Loading…
↗
42
9048013M2400
Grommet (6e9)
Loading…
↗
43
9038706M4300
Coller (6e9)
Loading…
↗
