Yamaha Outboard Parts - Bracket 2 - L250AETO (1990) | Flood Marine

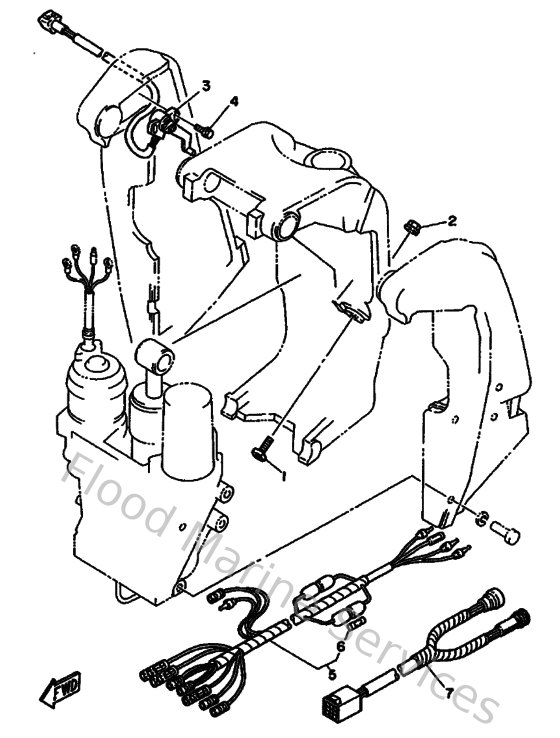

Diagram: Bracket 2

Diagram

Parts List

Reference
Description
Price


1
61A433760000
Bolt, thrust receiver
Loading…

↗
2
957801030000
Nut, nylon (6e5)
Loading…

↗
3
61A836720000
Trim Sender
Loading…

↗
4
958950601600
Bolt, flange deep recess
Loading…

↗
5
6Y583553M000
Wire, lead (l=2.5m)
Loading…

↗
6
1E6821510000
Fuse (10a)
Loading…

↗
