15FMH (2003)
CARBURETOR

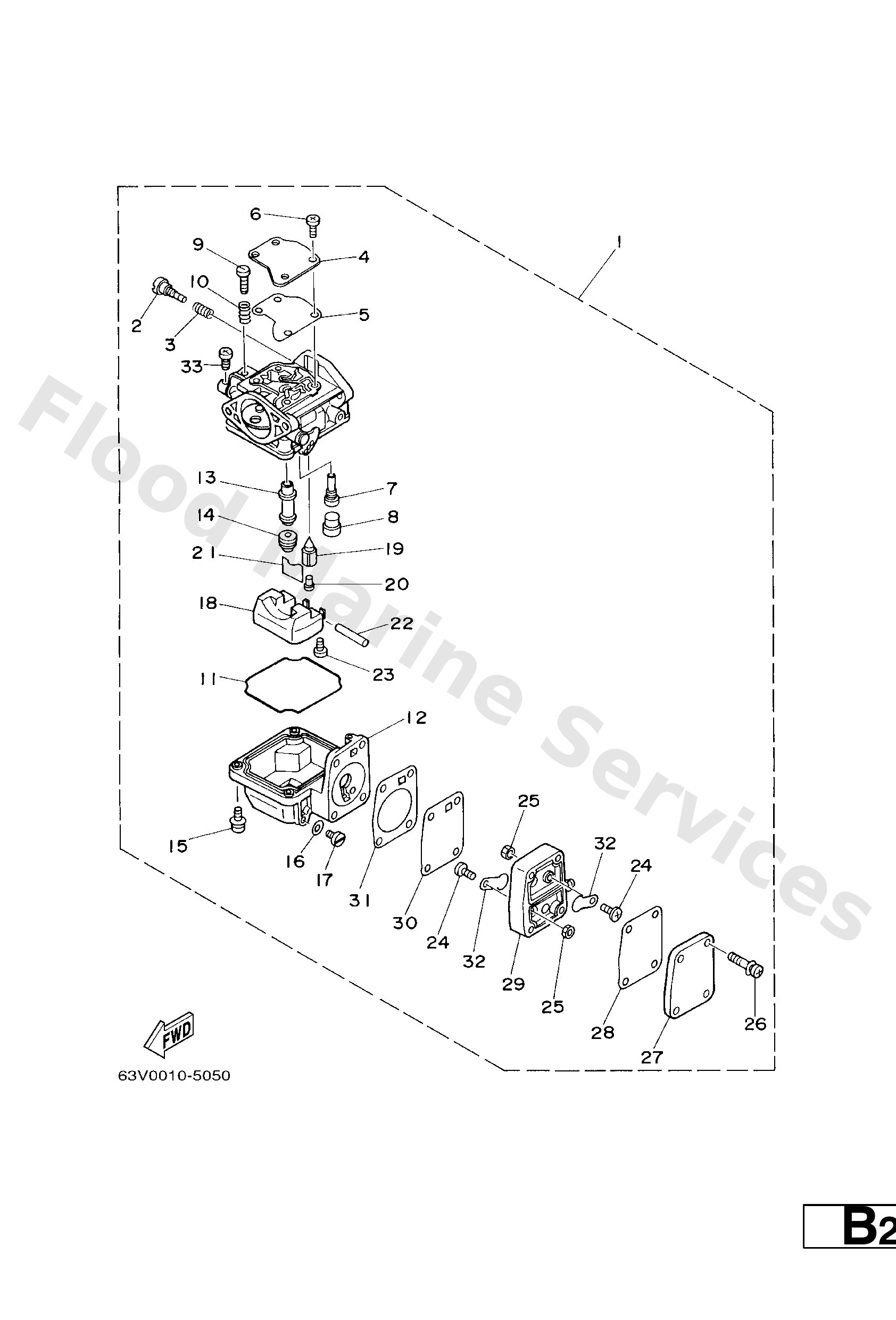

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
65D−14301−01
FOR BRAZIL
Carburetor assembly 1
Loading…
↗
1
63V−14301−00
Carburetor assembly 1
Loading…
↗
2
679−14923−00
Screw, pilot
Loading…
↗
3
679−14555−00
Spring
Loading…
↗
4
63V−14527−00
Plate
Loading…
↗
5
63V−14126−00
Gasket
Loading…
↗
6
97803−04010
Screw, pan head (e56)
Loading…
↗
7
63V−14948−06
Jet (#48)
Loading…
↗
7
63V−14948−08
FOR 65D−14301−01
Jet (#52)
Loading…
↗
8
679−14966−00
Rubber cap
Loading…
↗
9
63V−14523−00
Screw, stop
Loading…
↗
10
90501−10326
Spring coil(663)(carb)
Loading…
↗
11
63V−14984−00
Gasket, float chamber
Loading…
↗
12
63V−14980−00
Body, float chamber
Loading…
↗
13
63V−14947−00
Jet, needle
Loading…
↗
14
676−14943−29
Jet, main (#110)
Loading…
↗
14
676−14943−81
FOR 65D−14301−01
Jet, main (#118)
Loading…
↗
15
97980−04114
Screw, pan head(ga5)
Loading…
↗
16
6G1−14398−00
Washer
Loading…
↗
17
6G1−14992−00
Screw, drain
Loading…
↗
18
63V−14985−00
Float
Loading…
↗
19
6G1−14546−01
Valve, needle
Loading…
↗
19
62D−14546−01
FOR 65D−14301−01
Valve, needle
Loading…
↗
20
676−14186−00
Pin, valve
Loading…
↗
21
663−14159−00
Clip
Loading…
↗
22
6H4−14548−00
Pin, float arm
Loading…
↗
23
98580−04008
Screw, pan head (713)
Loading…
↗
24
98980−03006
Screw, bind(6g1)
Loading…
↗
25
95380−03600
Nut (6g8)
Loading…
↗
26
97980−04125
Screw, with washer
Loading…
↗
27
6G1−24452−00
Cover, pump
Loading…
↗
28
63V−24411−00
Diaphragm
Loading…
↗
29
6G1−24412−01
Body 1
Loading…
↗
30
6G1−24411−00
Diaphragm
Loading…
↗
31
6G1−24431−01
Gasket, fuel pump 1
Loading…
↗
32
6L5−24421−00
Valve, check
Loading…
↗
33
98580−04006
Screw, pan head (7h3)
Loading…
↗
