25NMHO (2004)
CARBURETOR

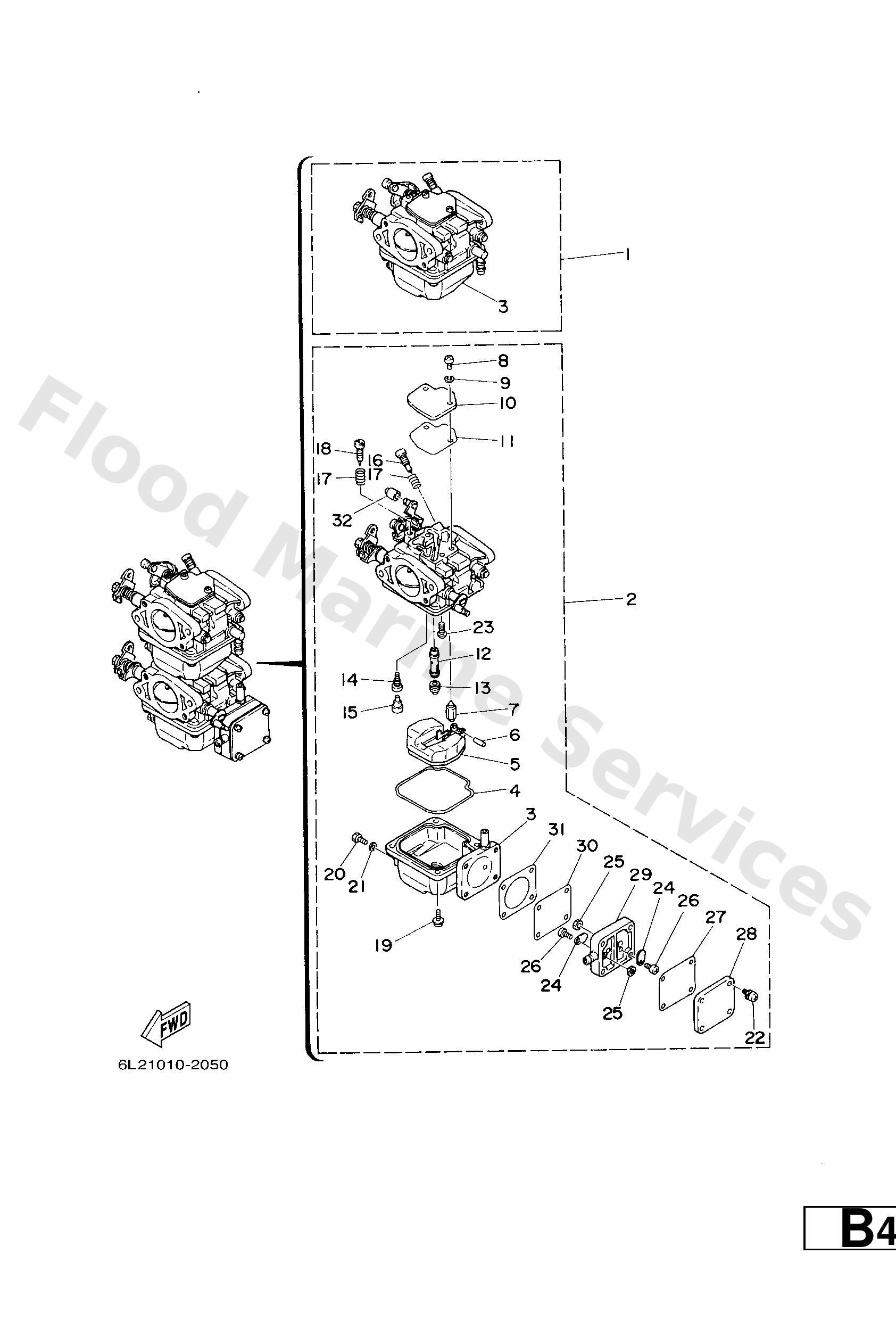

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6L31430100
#1
Carburetor assembly 1
Loading…
↗
1
6L21430101
#1
Carburetor assembly 1
Loading…
↗
2
6L21430201
#2
Carburetor assembly 2
Loading…
↗
2
6L31430200
#2
Carburetor assembly 2
Loading…
↗
3
6L21438100
#1
Body, float chamber
Loading…
↗
3
6L21438300
#2
Body, float chamber
Loading…
↗
4
6L21438400
Gasket, float chamber
Loading…
↗
5
6L21438500
Float
Loading…
↗
6
6E51438601
Pin, float
Loading…
↗
7
6L21439200
Valve, needle
Loading…
↗
8
9788004010
Screw, pan head (e56)
Loading…
↗
9
9290004100
Ybs67-4 washer, spring
Loading…
↗
10
6L21415700
Cover, mixing
Loading…
↗
11
6L21439900
Gasket
Loading…
↗
12
6L21434100
Nozzle, main
Loading…
↗
13
30X1434363
Jet, main
Loading…
↗
14
6L21434230
Jet, pilot (#60)
Loading…
↗
15
50M1435500
Plug
Loading…
↗
16
6L21432300
Screw, air adjusting
Loading…
↗
17
6461421201
Spring, pilot adjusting
Loading…
↗
18
6641432101
Screw, throttle
Loading…
↗
19
9798004112
Screw, pan head (686)
Loading…
↗
20
6771438301
Screw, drain
Loading…
↗
21
6L21439800
Gasket
Loading…
↗
22
6772444401
Screw
Loading…
↗
23
9898004006
Screw, bind(6l2)
Loading…
↗
24
6A02442101
Valve, check
Loading…
↗
25
9538003600
Nut (6g8)
Loading…
↗
26
6E71432500
Screw, pan head
Loading…
↗
27
6L22443500
Gasket, body 2
Loading…
↗
28
6L22441300
Body 2
Loading…
↗
29
6822441201
Body, pump
Loading…
↗
30
6772441102
Diaphragm
Loading…
↗
31
6772443402
Gasket, pump 1
Loading…
↗
32
6L21457800
#2
Collar & stopper set
Loading…
↗
