40XMH (2020)
CARBURETOR

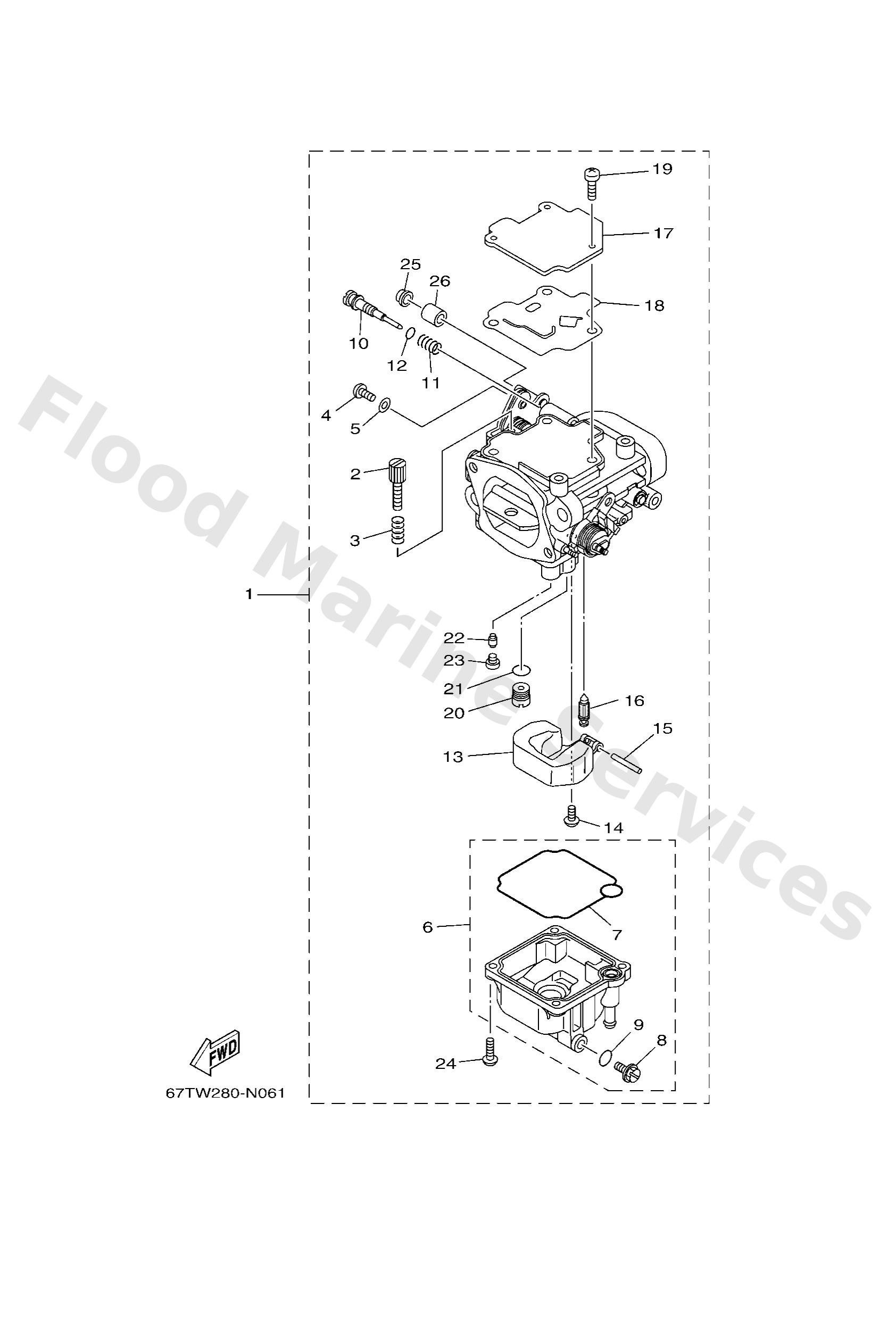

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
66T1430160
Carburetor assembly 1
Loading…
↗
2
66T1452360
Screw, stop
Loading…
↗
3
69W1421200
Spring, pilot adjusting
Loading…
↗
4
9789005006
Screw,panhead (eg9)
Loading…
↗
5
62Y1459700
Washer
Loading…
↗
6
66T1498160
Body, float chamber
Loading…
↗
7
66T1498460
Gasket, float chamber
Loading…
↗
8
62Y1438330
Screw, drain
Loading…
↗
9
6521439700
Ring, o
Loading…
↗
10
66T1432360
Screw, air adjusting
Loading…
↗
11
62Y1433400
Spring, air adjusting
Loading…
↗
12
6521414700
Ring, o
Loading…
↗
13
66T1438560
Float
Loading…
↗
14
66M1432500
Screw, pan head
Loading…
↗
15
6E51438601
Pin, float
Loading…
↗
16
6C51454610
Valve, needle
Loading…
↗
17
66T1452760
Plate
Loading…
↗
18
66T1453660
Gasket
Loading…
↗
19
6C51456700
Screw
Loading…
↗
20
66T1492E83
Jet, main (#165)
Loading…
↗
21
62Y1422700
O-ring
Loading…
↗
22
6DR1434235
Jet, pilot (#70)
Loading…
↗
23
66M1435500
Plug
Loading…
↗
24
62Y1432100
Screw, throttle
Loading…
↗
25
6L21458400
Stopper
Loading…
↗
26
6L21457801
Collar
Loading…
↗
