Yamaha Outboard Parts - CARBURETOR - 75AED (2005) | Flood Marine

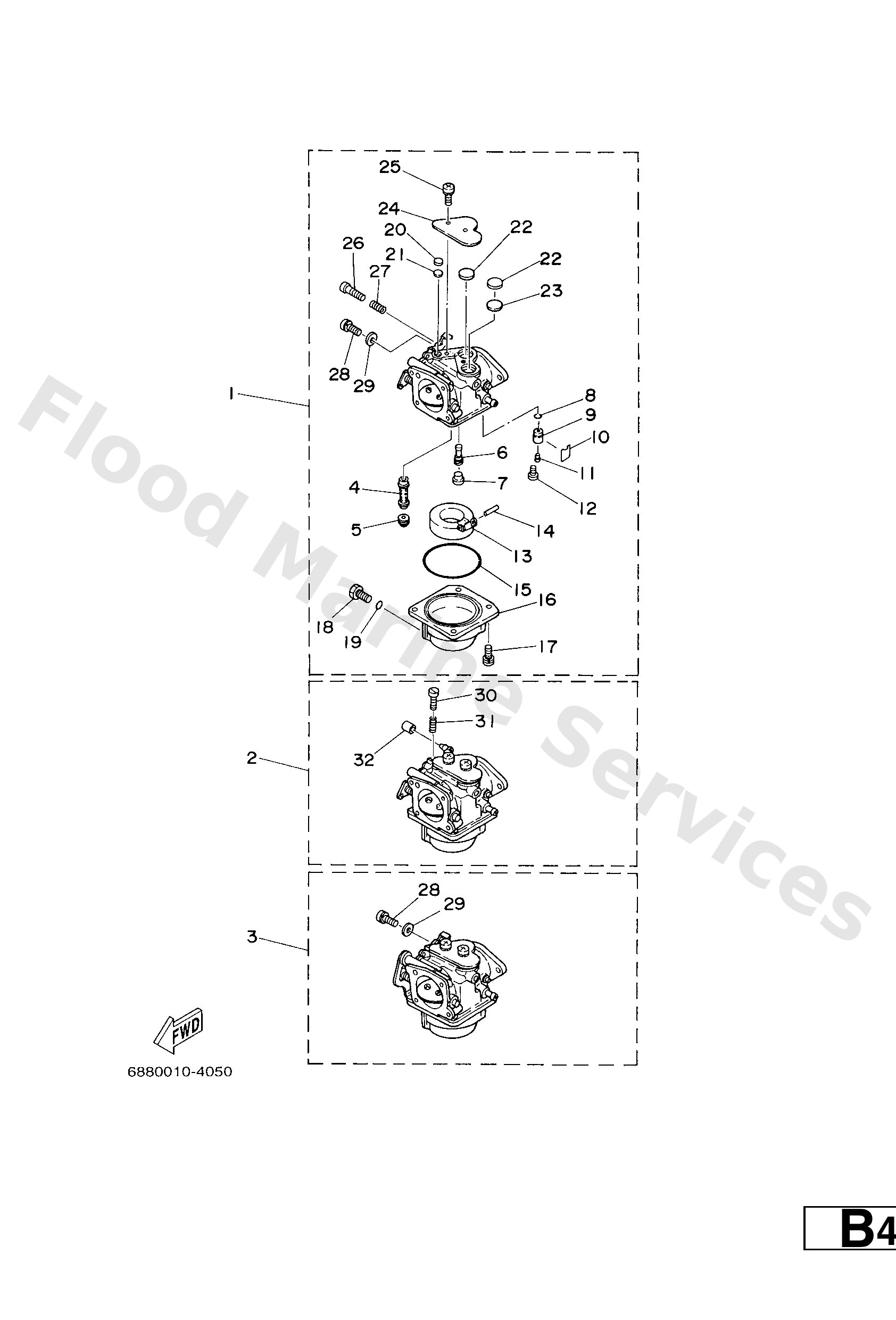

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
6921430134
Carburetor assembly
Loading…

↗
2
6921430234
-
Loading…

↗
3
6921430334
Carburetor assembly 3
Loading…

↗
4
6921494710
Jet, Needle
Loading…

↗
5
6761494339
Jet, main (#160)
Loading…

↗
6
6761494819
Jet, slow (#80)
Loading…

↗
7
6761496600
Rubber cap
Loading…

↗
8
9321004228
O-ring (371)
Loading…

↗
9
6921459001
Needle valve assembly
Loading…

↗
10
6631415900
Clip
Loading…

↗
11
6761418600
Pin, valve
Loading…

↗
12
9858004008
Screw, pan head (713)
Loading…

↗
13
6761498501
Float comp
Loading…

↗
14
6881454800
Pin, arm
Loading…

↗
15
6761498400
Gasket, float chamber
Loading…

↗
16
6881498000
Body, float chamber
Loading…

↗
17
9798004114
Screw, pan head(ga5)
Loading…

↗
18
6H31499200
Screw, drain
Loading…

↗
19
9321004230
O-ring (371)
Loading…

↗
20
6631412600
Packing
Loading…

↗
21
6631452700
Plate
Loading…

↗
22
6881412600
Packing
Loading…

↗
23
6881452700
Plate
Loading…

↗
24
6881457201
Seal
Loading…

↗
25
9798005310
Screw, with washer(6k5)
Loading…

↗
26
6921492300
Screw, adjusting
Loading…

↗
27
6791455500
Spring
Loading…

↗
28
6K51459200 #1,3
Screw
Loading…

↗
29
9020105652 #1,3
Washer, plate(65j)
Loading…

↗
30
63V1452300 #2
Screw, stop
Loading…

↗
31
9050110326 #2
Spring coil(663)(carb)
Loading…

↗
32
6H21457800 #2
Collar
Loading…

↗
