F9.9FMH (2010)
CARBURETOR

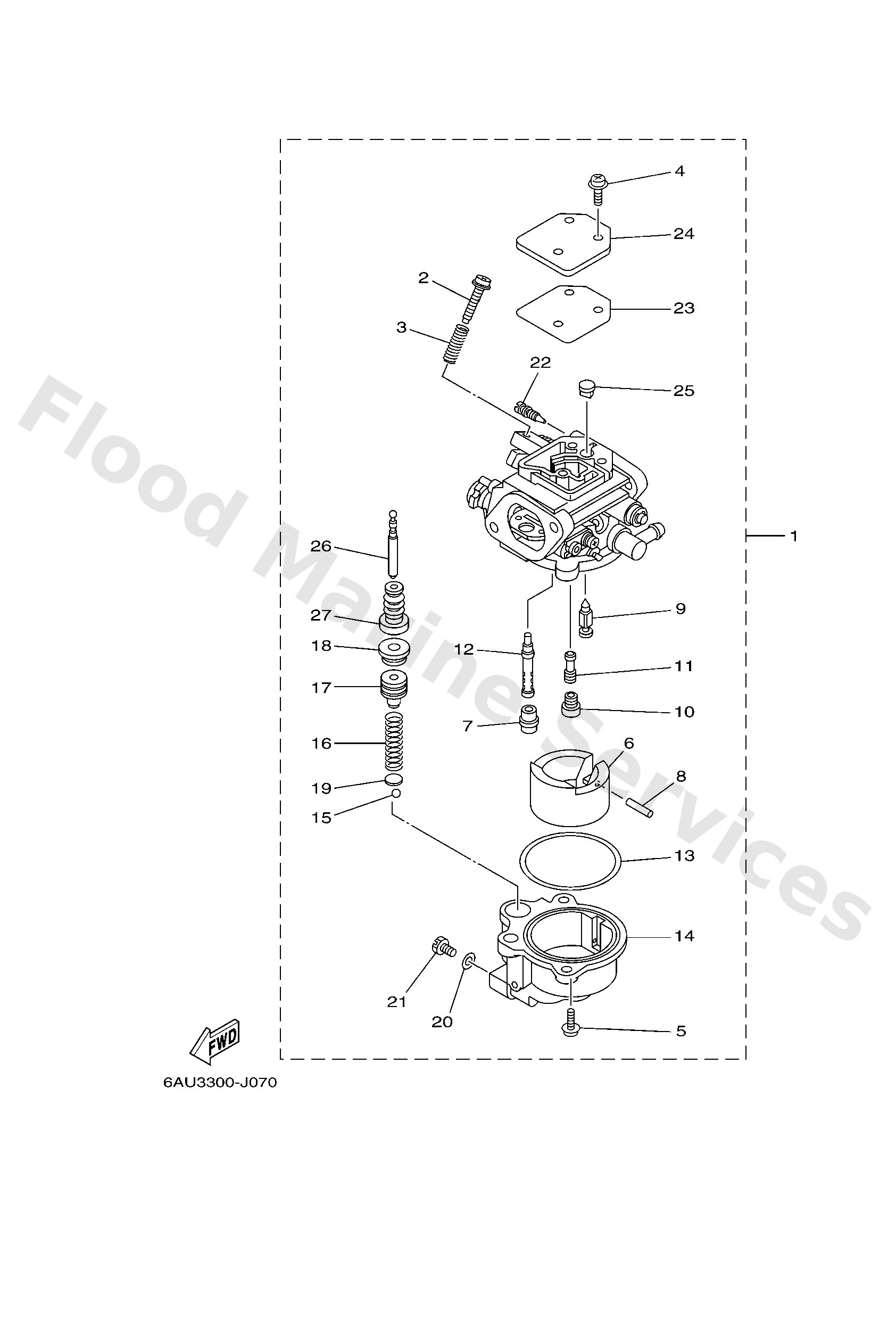

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6AU1430151
Carburetor & bolt set 6dr51
Loading…
↗
1
6AU1430121
Carburetor & bolt set 6dr21
Loading…
↗
2
6E51432100
Screw, throttle
Loading…
↗
3
6J81433400
Spring, throttle
Loading…
↗
4
9798004110
Screw, pan head (e56)
Loading…
↗
5
9798004112
Screw, pan head (686)
Loading…
↗
6
6AU1438500
Float
Loading…
↗
7
67D1496600
Rubber cap
Loading…
↗
8
67D1438600
Pin, float
Loading…
↗
9
68T1454600
Valve, needle
Loading…
↗
10
6AU1492E43
Jet, main (#86)
Loading…
↗
11
6AU1492F20
Jet, air slow (#40)
Loading…
↗
12
6AU1492A00
Nozzle, main
Loading…
↗
13
6AU1498400
Gasket, float chamber
Loading…
↗
14
6AU1498250
Holder
Loading…
↗
15
6AU1431B00
Ball
Loading…
↗
16
6AU1433550
Spring, plunger
Loading…
↗
17
6AU1437150
Plunger, Starter
Loading…
↗
18
6AU1431A30
Guide
Loading…
↗
19
6AU1491800
Ring
Loading…
↗
20
6J81495900
Gasket, drin screw
Loading…
↗
21
66T1499100
Plug, drain
Loading…
↗
22
68T1432320
Screw, Air Adjusting
Loading…
↗
23
67D1453600
Gasket
Loading…
↗
24
67D1452700
Plate
Loading…
↗
25
68T1412600
Plug
Loading…
↗
26
6AU1437930
Rod, starter
Loading…
↗
27
6AU1437300
Cover, plunger cap
Loading…
↗
