225DETO (2002)
CONTROL

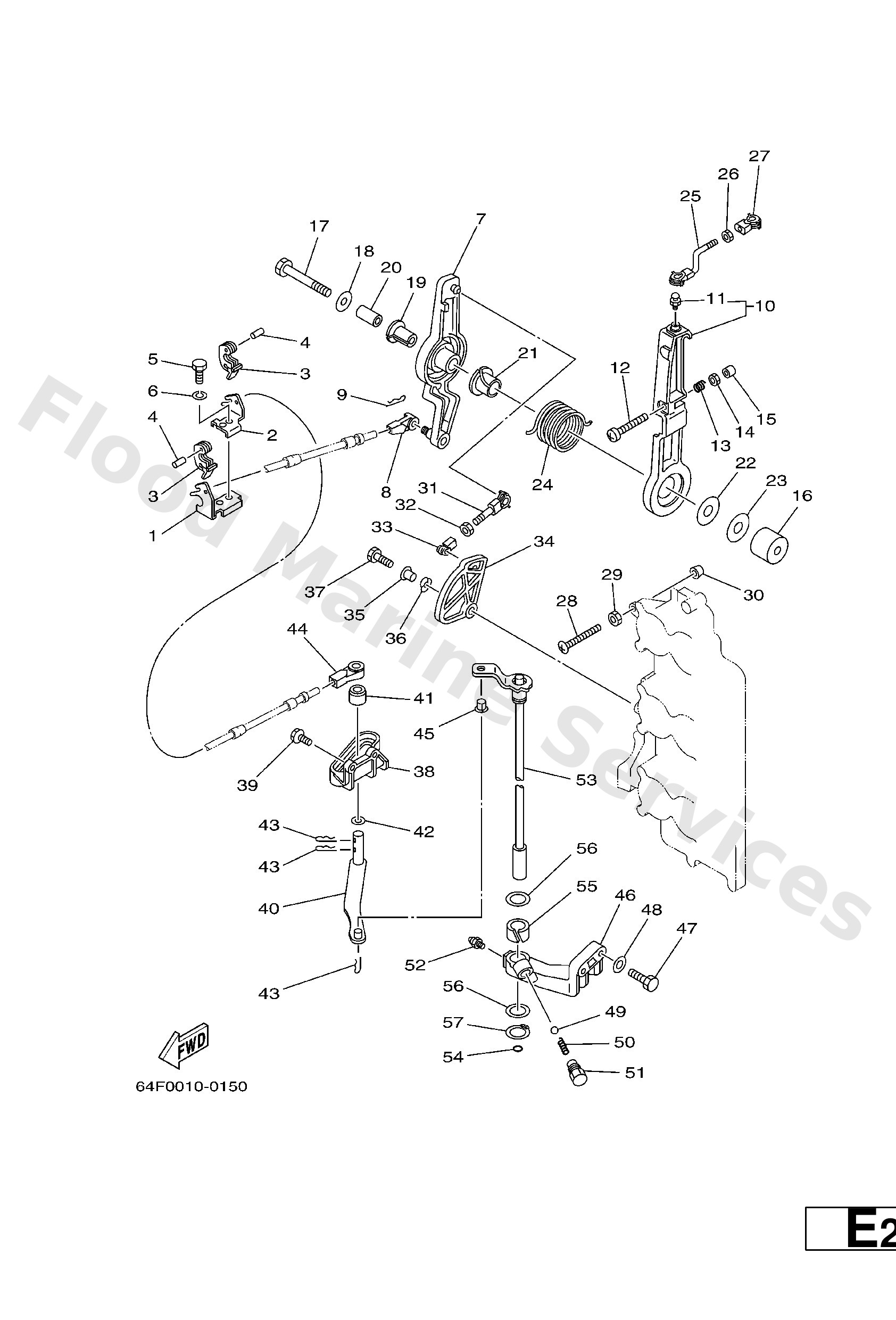

Diagram: CONTROL
Parts List
Reference
Description
Price
1
64D--48531--00
Bracket, remote control 1
Loading…
↗
2
64D--48532--00
Bracket, remote control 2
Loading…
↗
3
6E5--48538--00
Clamp, cable
Loading…
↗
4
91690--30012
Pin, spring
Loading…
↗
5
97095--08020
Bolt, hexagon
Loading…
↗
6
92995--08100
Ybs67-8 washer, spring
Loading…
↗
7
61H--41632--02--1S
Lever, magneto control
Loading…
↗
8
6E5--48344--00
Cable end, remote control
Loading…
↗
9
90468--18008
Clip 620436610000
Loading…
↗
10
6G5--41631--01--1S
Lever, magneto control
Loading…
↗
11
663--85518--00
Joint, ball
Loading…
↗
12
90157--06013
Screw, pan head(697)
Loading…
↗
13
90501--16M12
Spring, compression (688)
Loading…
↗
14
95303--06600
Nut(661)
Loading…
↗
15
688--44194--00
Cap
Loading…
↗
16
90387--08M17
Collar
Loading…
↗
17
90101--08M14
Bolt(61h)
Loading…
↗
18
90201--08M23
Washer, plate (6e5)
Loading…
↗
19
90386--12089
Bushing(663)
Loading…
↗
20
90387--08M16
14 −
Loading…
↗
21
90386--22M13
Bushing (688)
Loading…
↗
22
90202--12092
Washer, plate(663)
Loading…
↗
23
90201--08M13
Washer plate (682)
Loading…
↗
24
90508--29M12
Spring (6e5)
Loading…
↗
25
6G5--41636--01
Rod, magneto control
Loading…
↗
26
95380--05600
Nut, hexagon (663)
Loading…
↗
27
662--41237--01
Joint, link
Loading…
↗
28
9015706M07
Screw, Pan Head
Loading…
↗
31
682--41237--50
Joint, link 2
Loading…
↗
34
61H--41213--00
Cam, accel.
Loading…
↗
35
90387--06M29
Coller (6a0)
Loading…
↗
36
90206--10M04
Washer, wave (676)
Loading…
↗
37
97095--06025
Bolt
Loading…
↗
38
6E5--44117--00--1S
Bracket
Loading…
↗
39
90119--06MA2
Bolt, with washer
Loading…
↗
40
68F--44121--00
Lever, shift rod
Loading…
↗
41
6E5--44122--00
Bushing, shift rod lever
Loading…
↗
42
90202--08M20
Washer, plate (6e5)
Loading…
↗
45
90386--06M12
Bushing (688)
Loading…
↗
46
6E5--44118--01--94
Bracket 2
Loading…
↗
47
97013--08030
Bolt
Loading…
↗
48
92903--08600
Washer, plain (663)
Loading…
↗
49
93501--04M02
Ball (697)
Loading…
↗
50
90501--12082
Spring 6484411600
Loading…
↗
51
648--42715--00
Bushing 2
Loading…
↗
52
93700--06M03
Nipple, grease(6a1)
Loading…
↗
53
6E5--44120--03
L
Handle gear shift assembly
Loading…
↗
53
6E5--44120--23
X
Handle gear shift assembly
Loading…
↗
54
93210--09165
O-ring
Loading…
↗
55
90386--16M66
Bush(6e5)
Loading…
↗
56
90202--16061
Washer, plate(663)
Loading…
↗
57
93410--16006
Circlip
Loading…
↗
