F6CMH (2023)
CONTROL

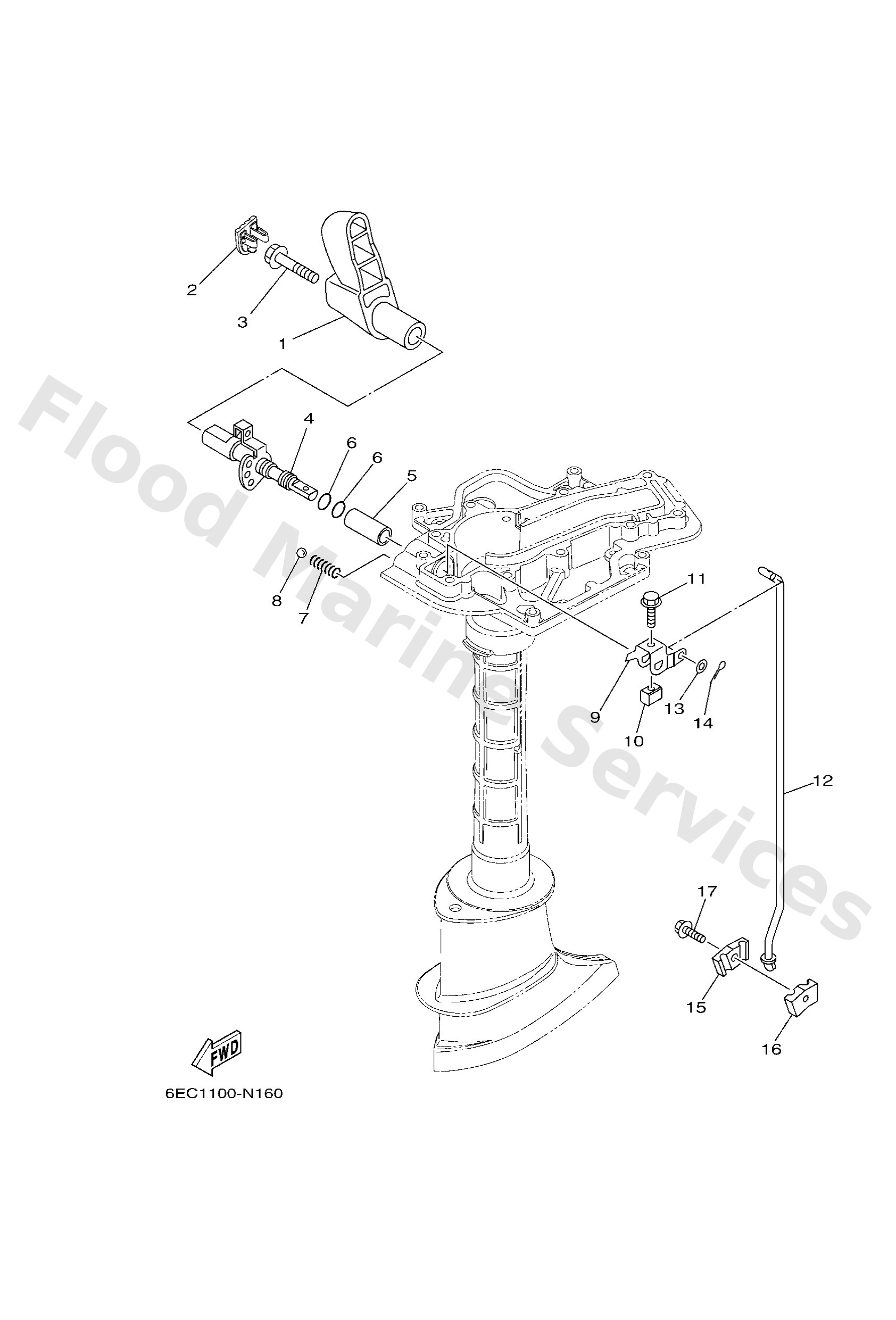

Diagram: CONTROL
Parts List
Reference
Description
Price
1
6EEG411100
Handle, gear shift
Loading…
↗
2
6EEG367900
Cover
Loading…
↗
3
9010508046
Bolt, flange
Loading…
↗
4
6EEG4119008D
Shaft, change
Loading…
↗
5
6EEG412200
Bushing, shift rod lever
Loading…
↗
6
9321009811
O-ring
Loading…
↗
7
9050112802
Spring,compression
Loading…
↗
8
9350516024
Ball
Loading…
↗
9
6EEG412100
Lever, shift rod
Loading…
↗
10
6EEE817500
Spacer
Loading…
↗
11
9011905M04
Bolt, with washer
Loading…
↗
12
6EEG414300
Rod, shift
Loading…
↗
13
9299005600
Washer, plain (646)
Loading…
↗
14
9149016010
Pin, cotter
Loading…
↗
15
68DG414500
Connector, shift rod 1
Loading…
↗
16
68DG414600
Connector, shift rod 2
Loading…
↗
17
9011906256
Bolt, with washer
Loading…
↗
